Oil Type Transformer
>

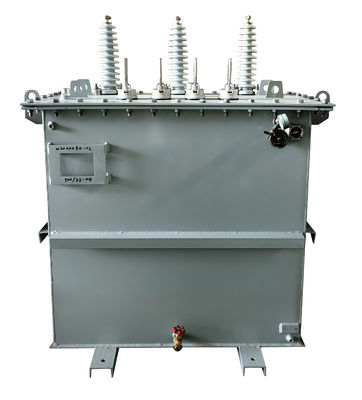

500KVA Oil Type Transformer 22KV 33KV 400V Copper Winding 50Hz

500KVA Oil Type Transformer 22KV 33KV 400V Copper Winding 50Hz

Brand Name: WINLEY
Model Number: S11-500/22
MOQ: 1
Price: $15-$60000
Packaging Details: Plywood case
Payment Terms: T/T
Detail Information
Place of Origin:
CHINA
Certification:
ISO,CE
Capacity:
500KVA
Input Voltage:
22KV 33KV
Output Voltage:
400V
Material:
Copper Winding
Frequency:
50Hz
Standard:
IEC ANSI BIL IEEE
Cooling Method:
KNAN
Power:
Upto 63MVA
Supply Ability:
1000unit per month
Highlight:

50Hz Oil Type Transformer

,

Copper Winding Oil Type Transformer 22KV

,

400V Copper Winding Transformer

Product Description

500KVA Oil Type Transformer 22KV 33KV 400V Copper Winding 50Hz





Features



35KV grade S11,SZ11,SFZ11 series products are designed in compliance to IEC60076 and GB1094 “ Power Transformer” and GB/T6451 “Technical Parameters and Requirements for Three-phases Oil-immersed Power Transformers”. The load voltage regulation range covers 35±2*2.5%kV, 35±3*2.5%kv,38.5±3*2.5%kV. The voltage can be regulated manually, electrically or automatically in the specified range by using the load regulation switch on the primary side, so as to guarantee the stability of output voltage. Table-flap type tank is adopted in 35KV transformer of 6300KVA and over, so as to improve the mechanic strength, reduce welding work and provide better appearance. The products are widely used and got good operation economy.



Main data

PCB Free Oil Immersed Distribution Transformer Copper Aluminum Two Coil 0

PCB Free Oil Immersed Distribution Transformer Copper Aluminum Two Coil 1

PCB Free Oil Immersed Distribution Transformer Copper Aluminum Two Coil 2

PCB Free Oil Immersed Distribution Transformer Copper Aluminum Two Coil 3

500KVA Oil Type Transformer 22KV 33KV 400V Copper Winding 50Hz 4

FAQ



1. Q: Can I have a sample order?

A: Yes, we welcome sample order to test and check quality.

2. Q: What is the lead time?

A: Mass production time 15-25 days.

3. Q: How long is the warranty?

A: 24 monthes from B/L. If there are any accessory problems,just provide the photos of damaged accessory,then we will provide free service. According to the number of products,we will provide easily damaged accessories for free. we also can provide technical support if you need.

4. Q: Is OEM/ODM available?

A: Yes,it is! We are manufacturer with our own R&D team, we can customize products according to customer's drawing or requirements.

Customized services:

a. Customized color and special function.

b. Customized box.

c. Print customer's logo.

d. Your other ideas about product, we can help you design and put them into production. The above customized services must be confirmed before production.

5. Q: How to control the products quality?

A: Our company owns the core technology ,all kinds of products hold CE certificate. We have professional engineers. Workers are strictly required to make products according to the drawings. Each process has technical instructors.The QC supervisors will regularly inspect the production. We will do products performance tests during production, and comprehensive quality tests when the products is completed.
