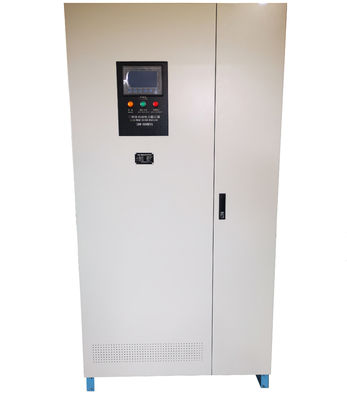

800KVA Three Phase Voltage Regulator 380V 400V 415V 1% Automatic

Basic Information
Place of Origin: CHINA
Brand Name: WINLEY
Certification: ISO,CE
Model Number: SBW-800KVA
Minimum Order Quantity: 1
Price: $20-$60,000
Packaging Details: Plywood case
Delivery Time: 5-8 working days
Payment Terms: T/T
Supply Ability: 1000pcs per month
Detail Information
Current Type: AC Usage: Voltage Stabilization
Phase: Three Phase Type: Automatic
Frequency: 50Hz/60Hz Efficiency: 98%
Display: Meter Display / LED Display Voltage: 380V 400V 415V
High Light:

800KVA Three Phase Voltage Regulator

,

400V Three Phase Voltage Regulator

,

415V Three Phase Voltage Regulator


Product Description

800KVA Three Phase Voltage Regulator 380V 400V 415V 1% Automatic





Features:



Single and three phase high precision automatic AC voltage regulator is composed of contact type auto voltage regulator, servo motor and automatic control circuit. When the grid voltage is unstable for the load changes, the automatic sampling control circuit sends a signal to drive the servo motor, adjust the position of the auto-coupler carbon brush, adjust the output voltage to the rated value and reach a steady state.





Specification:

No. Description
1 Model SBW-130KVA
2 Name Three-phase voltage regulator
3 Rated power 130KVA
4 Input voltage 380V±20%
5 Output voltage 380V
6 Output current 197.5A
7 Output voltage accuracy ±2%
8 Phase Three
9 Frequency 50/60Hz
10 Efficiency >98%
11 Response time The input voltage is equivalent to a nominal value jump of ±10% and the response time is less than 1.5s
12 Waveform distortion ≤0.1%
13 Mains function Three-phase product power supply, voltage regulation convenient switching
14 Over voltage The input voltage is higher than the set value, and the power is automatically turned off.
15 Over current The input current is larger than the set value, and the power is automatically turned off.
16 Phase protection The regulator does not turn on or cut off the output when the input voltage is out of phase
17 Control system Computer digital display intelligent control
18 Bypass Manually to the mains state when the regulator needs maintenance or an abnormality
19 Working way Long-term, continuous unattended work
20 Insulation resistance >100MΩ
21 Withstand voltage AC 2000V/60s
22 Grounding resistance 25A<100mΩ
23 Warranty 36 monthes



Schematic:

130KVA Three Phase Industrial Voltage Regulator Over Temperature 0

130KVA Three Phase Industrial Voltage Regulator Over Temperature 1

800KVA Three Phase Voltage Regulator 380V 400V 415V 1% Automatic 2



FAQ



1. Q: Can I have a sample order?

A: Yes, we welcome sample order to test and check quality.

2. Q: What is the lead time?

A: Sample time 3-7 days, we usually ship by DHL, UPS, FedEx,etc. Mass production time 7-25 days.

3. Q: How long is the warranty?

A: 24 monthes from B/L. If there are any accessory problems,just provide the photos of damaged accessory,then we will provide free service. According to the number of products,we will provide easily damaged accessories for free. we also can provide technical support if you need.

4. Q: Is OEM/ODM available?

A: Yes,it is! We are manufacturer with our own R&D team, we can customize products according to customer's drawing or requirements.

Customized services:

a. Customized color and special function.

b. Customized box.

c. Print customer's logo(MOQ:≥10pcs).

d. Your other ideas about product, we can help you design and put them into production. The above customized services must be confirmed before production.

5. Q: How to control the products quality?

A: Our company owns the core technology ,all kinds of products hold CE certificate. We have professional engineers. Workers are strictly required to make products according to the drawings. Each process has technical instructors.The QC supervisors will regularly inspect the production. We will do products performance tests during production, and comprehensive quality tests when the products is completed.
