15KVA Oil Type Transformer Pole Mounted Single Phase 12470V 240/120V

15KVA Oil Type Transformer Pole Mounted Single Phase 12470V 240/120V

Brand Name: WINLEY
Model Number: D16-15KVA
MOQ: 1
Price: $20-$60,00
Packaging Details: Plywood case
Payment Terms: T/T
Detail Information
Place of Origin:
CHINA
Certification:
ISO,CE
Usage:
Decentralization Distribution
Coil Number:
Autotransformer
Phase:
Single
Type:
Pole-mounted
Frequency:
60Hz
Standard:
IEC ANSI BIL IEEE
Voltage:
12470V/240V
Rated Capacity:
3KVA-500KVA
Supply Ability:
10000pcs per month
Highlight:

15KVA Oil Type Transformer

,

120V Pole Mounted Single Phase Transformer

,

ANSI Oil Type Transformer

Product Description

15KVA Oil Type Transformer Pole Mounted Single Phase 12470V 240/120V



Summarization
The single-phase pole-mounted distribution transformers are specifically designed for the decentralization distribution network of servicing residential overhead distribution loads of town and countryside. They are also suitable for light and diversified power applications. These transformers are designed for the application conditions normally encountered on electric utility power distribution systems.
Offers 2 basic transformer types and 2 kinds of metal core types Conventional type and Complete Self Protect type,and for the transformer core,2 types of materails are available:C.R.G.O wound core and amorphous metal core.

Standards
IEEE C57.12.00 C57.12.20
ANSIC57.12.00
C57.12.20
IEC76
GB10318

Feature of outer structure
(1) Cover mounted high voltage porcelain bushings with eyebolt terminals are mounted on flat embossments on the cover and have undercut gasket seats for improved sealing. The eye bolt connectors are cast bronze plated with tin to accommodate both aluminum and copper conductors.
(2) One-piece fasten ring prolongs the file of the transformer,facilitates inspection and maintains evern pressure around the entire rim.It combines with a specially formed tank rim,drawn cover and gasket to form an effective seal which will not deteriorate with age.
(3) Low voltage tank-wall bushing terminals are clamp type and tinplated.
(4) Tank is equipped with self-sealing pressure release device.
(5) Support lugs,welded to the tank,conform to ANSI standards are made of hot-rolled steel.
(6) Tank is supplied with a tank grounding bolted ring-type connector suitable for use with copper or aluminum.

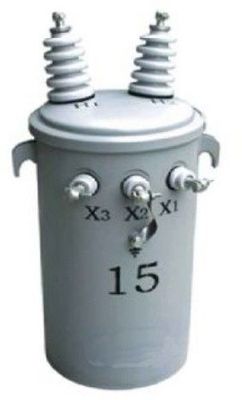

15KVA Oil Type Transformer Pole Mounted Single Phase 12470V 240/120V 0

15KVA Oil Type Transformer Pole Mounted Single Phase 12470V 240/120V 1


FAQ



1. Q: Can I have a sample order?

A: Yes, we welcome sample order to test and check quality.

2. Q: What is the lead time?

A: Sample time 3-7 days, we usually ship by DHL, UPS, FedEx,etc. Mass production time 7-25 days.

3. Q: How long is the warranty?

A: 24 monthes from B/L. If there are any accessory problems,just provide the photos of damaged accessory,then we will provide free service. According to the number of products,we will provide easily damaged accessories for free. we also can provide technical support if you need.

4. Q: Is OEM/ODM available?

A: Yes,it is! We are manufacturer with our own R&D team, we can customize products according to customer's drawing or requirements.

Customized services:

a. Customized color and special function.

b. Customized box.

c. Print customer's logo(MOQ:≥10pcs).

d. Your other ideas about product, we can help you design and put them into production. The above customized services must be confirmed before production.

5. Q: How to control the products quality?

A: Our company owns the core technology ,all kinds of products hold CE certificate. We have professional engineers. Workers are strictly required to make products according to the drawings. Each process has technical instructors.The QC supervisors will regularly inspect the production. We will do products performance tests during production, and comprehensive quality tests when the products is completed.
