60KVA Low Frequency Transformer Three Phase Dry Type 400/380V 230/220V

Basic Information
Place of Origin: CHINA
Brand Name: WINLEY
Certification: ISO,CE
Model Number: SG-60KVA
Minimum Order Quantity: 1unit
Price: $20-$8000
Packaging Details: Plywood case
Delivery Time: 10-15days
Payment Terms: T/T
Supply Ability: 1000units/month
Detail Information
Usage: Low Frequency Input Voltage: 400/380V
Output Voltage: 230V220V Frequency: 50/60Hz/Customize
Standard: IEC60076,GB1094-1996 Material: Copper Or Aluminum
Efficiency: 95%-99% Cooling: AN
High Light:

60KVA low frequency transformer


400v to 380v 3 phase transformer


low frequency transformer 230V to 220V

Product Description

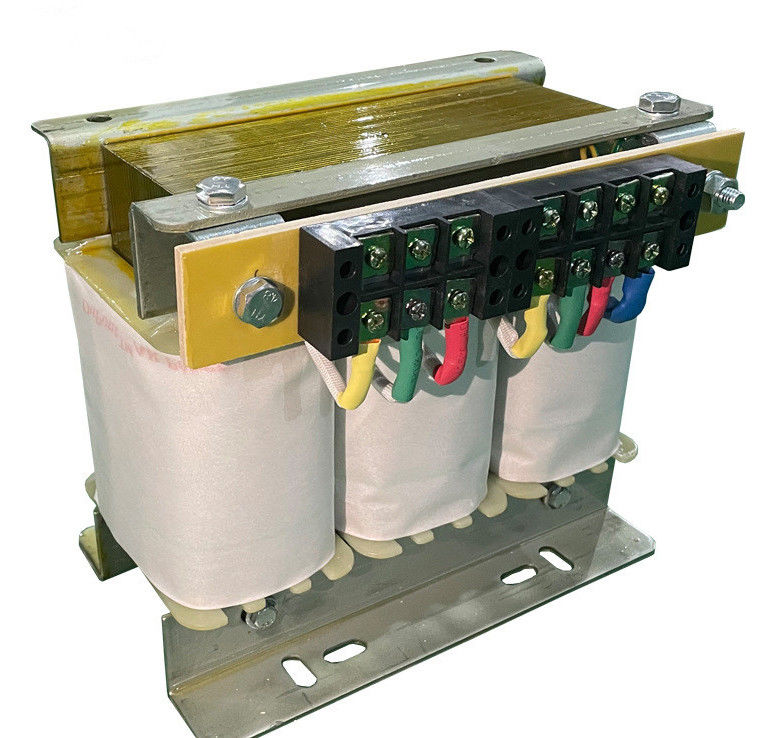

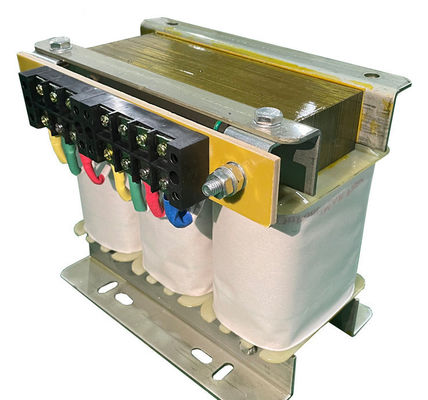

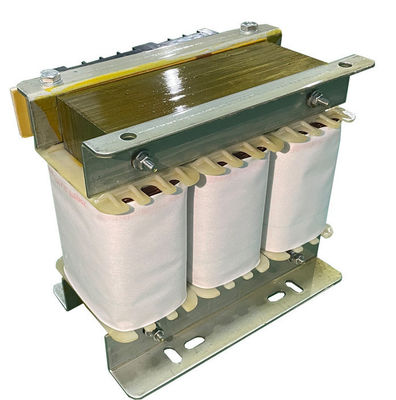

60KVA Low Frequency Three Phase Dry Type Transformer 400/380V 230/220V



1. Feature


1. Altitude: ≤5000m

2. Ambient temperature: -15℃~+45℃

3. Relative humidity: ≤95%

4. The installation site should be free of gas, steam, chemical deposits, dirt, conductive dust, and other explosive, flammable, and corrosive substances that seriously affect the insulation strength of the transformer.




Product Name Three phase dry type transformer
Product Model SG-60KVA
Winding Material Enameled copper wire
Capacity 60KVA
Input Voltage 400/380V
Output Voltage 230/220V
Frequency 50/60Hz
Connection Type DYN1
Insulation Level F/H
Enclosures Protection Level IP43
Pressure-tight Test 3500V/min
Insulation Resistance >100MΩ
Ground Resistance 25A<100milliohm
Induction Withstand Voltage Test 125Hz / 830V / 60s
Cooling Method Natural or air cooling
Temperature Rise ≤115K
Transformation Ratio <3%
Air Carrying Current <3%
Impedance Voltage about 4.5%
Total Losses 4%
Efficiency 80%--99%
Operating Temperature -15℃~40℃ (40℃, 90%R.H., 56days)
Storage Temperature -25℃~100℃(40℃, 90%R.H., 56days)
Certificate CE,ISO
The technical parameter for reference only, for exactly technical information, please feel free to contact us!


60KVA Low Frequency Transformer Three Phase Dry Type 400/380V 230/220V 0

60KVA Low Frequency Transformer Three Phase Dry Type 400/380V 230/220V 160KVA Low Frequency Transformer Three Phase Dry Type 400/380V 230/220V 2




1. Q: Can I have a sample order?

A: Yes, we welcome sample order to test and check quality.

2. Q: What is the lead time?

A: Sample time 3-7 days, we usually ship by DHL, UPS, FedEx,etc. Mass production time 7-25 days.

3. Q: How long is the warranty?

A: 24 monthes from B/L. If there are any accessory problems,just provide the photos of damaged accessory,then we will provide free service. According to the number of products,we will provide easily damaged accessories for free. we also can provide technical support if you need.

4. Q: Is OEM/ODM available?

A: Yes,it is! We are manufacturer with our own R&D team, we can customize products according to customer's drawing or requirements.

Customized services:

a. Customized color and special function.

b. Customized box.

c. Print customer's logo(MOQ:≥10pcs).

d. Your other ideas about product, we can help you design and put them into production. The above customized services must be confirmed before production.

5. Q: How to control the products quality?

A: Our company owns the core technology ,all kinds of products hold CE certificate. We have professional engineers. Workers are strictly required to make products according to the drawings. Each process has technical instructors.The QC supervisors will regularly inspect the production. We will do products performance tests during production, and comprehensive quality tests when the products is completed.
