2000kVA Three-Phase Loop-Feed Pad-Mounted Transformer 34500V to 480Y/277V For Data Center

1. Winley Electric three-phase transformers are UL/cUL Listed under File No. E536138, with ratings from 45 kVA through 10 MVA. They are designed and manufactured to meet applicable ANSI/IEEE, CSA, NEMA, and DOE 2016 requirements.
2. With extensive experience in North American utility, industrial, and commercial projects, Winley Electric can deliver cost-effective customized solutions based on your specific project requirements.
3. With a strong supply chain and experienced production team, Winley Electric support fast delivery with a 4–6 weeks production time after technical approval to help keep your project on schedule.

Engineered for supreme reliability and high-capacity power delivery, this 2000 kVA three-phase liquid-filled pad-mounted transformer provides seamlessly efficient step-down conversion from 34500V to 480Y/277V. It serves as an indispensable backbone for demanding outdoor underground distribution networks powering industrial plants, high-density data centers, commercial campuses, and critical infrastructure.

Engineered for loop-feed versatility, it integrates robust, compartmentalized HV/LV construction, coordinated primary protection, ONAN self-cooling, a Dyn1 vector configuration, and a 150 kV primary BIL. The transformer is UL/cUL Listed under File No. E536138 and complies with ANSI C57.12.34 and DOE 2016 energy-efficiency requirements.

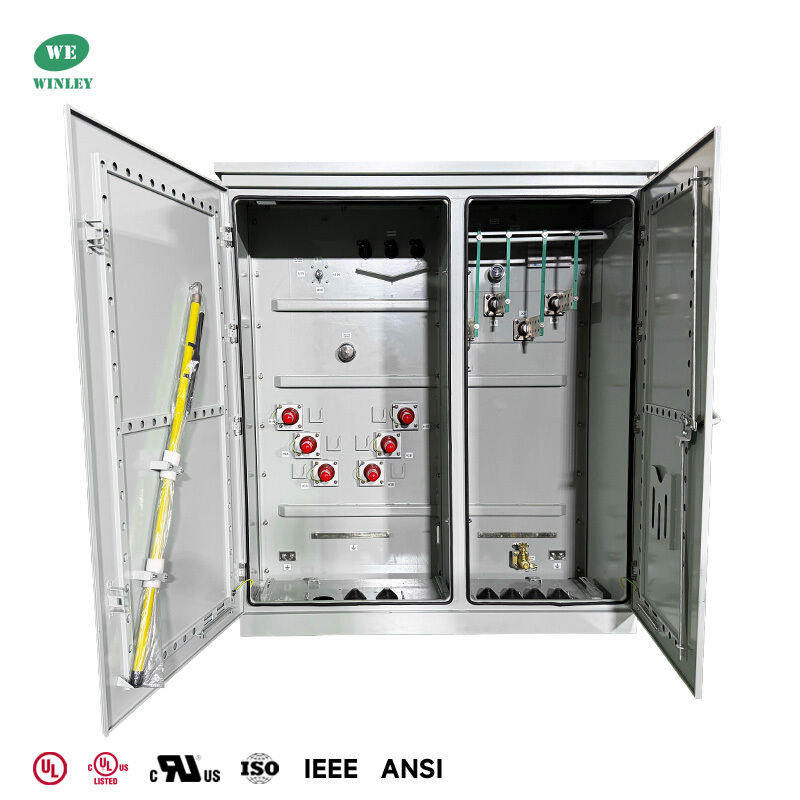

• Four-Position Loadbreak Switch — Flexible Loop-Feed Control
  Supports feeder switching and sectionalizing for 35 kV-class loop distribution systems.
• 600 A Deadbreak Primary Interfaces — Fully Insulated Cable Connection
  Six IEEE 386-compatible interfaces accommodate incoming and outgoing loop-feed cables.
• Coordinated Fuse Protection — Two-Level Primary Protection
  Bayonet expulsion and current-limiting fuses work together to protect against overloads and higher fault currents.
• Five-Position Tap Changer — Accurate Voltage Adjustment
  Provides a ±5% adjustment range in 2.5% steps for closer matching with the primary system voltage.
• Separate HV and LV Compartments — Organized and Protected Access
  Keeps high-voltage switching and protection components separated from low-voltage terminations.
• Pressure, Oil-Level and Temperature Indicators — Clear Operating Visibility
  Provide direct monitoring of the sealed tank condition, insulating-oil level, and operating temperature.
• Pressure Relief Valve — Automatic Tank Protection
  Releases abnormal internal pressure to reduce mechanical stress on the sealed tank.
• Drain Valve with Sampler — Convenient Oil Testing and Maintenance
  Supports controlled oil drainage and sample collection without extensive disassembly.
