112.5kva Three Phase Pad Mounted Transformer 4160V To 208V Oil Filled Distribution Transformer Pad Mount
| Brand Name: | WINLEY |
| Model Number: | ZGS-112.5/4.16 |
| MOQ: | 1unit |
| Price: | $5000-$150000 |
| Packaging Details: | Plywood case |
| Payment Terms: | T/T |
4160V To 208V Three Phase Transformer
,Pad Mounted Three Phase Transformer
,112.5kva Three Phase Pad Mounted Transformer
112.5kva Three Phase Pad Mounted Transformer 4160V To 208V Oil Filled Distribution Transformer Pad Mount UL/CUL certified

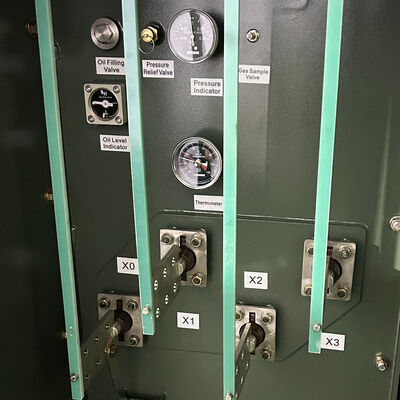

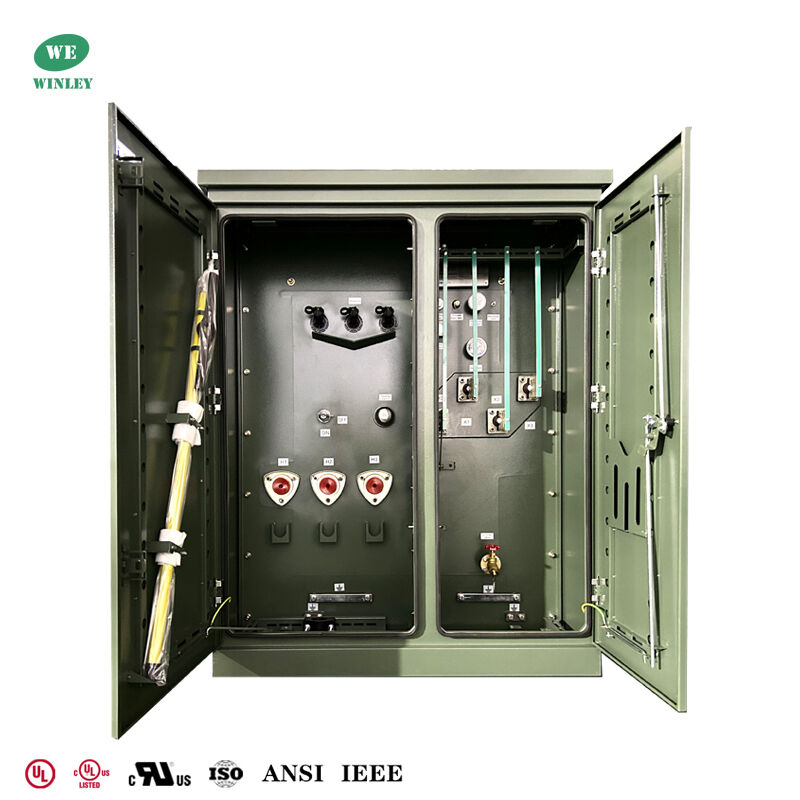

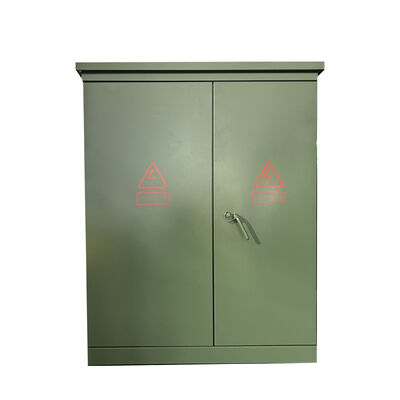

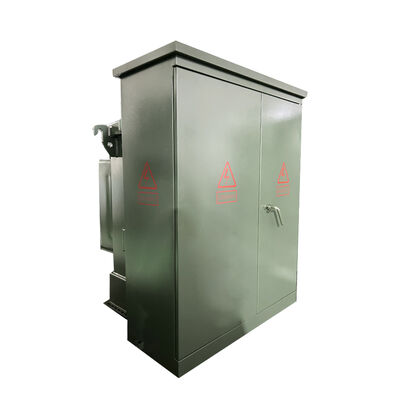

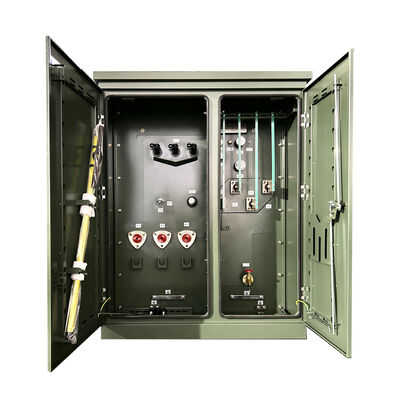

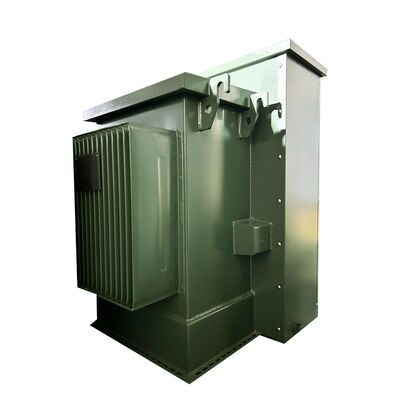

This three-phase pad-mounted transformer features a compartmental-type, liquid-filled configuration, specifically designed for radial feed applications. With a rated capacity of 112.5 KVA, it operates at a frequency of 60 Hz, boasting a Dyn1 vector group, 4160V primary voltage, and 208Y/120V secondary voltage—ideal for matching the power distribution needs of commercial and industrial scenarios.
why choose us
WINLEY offers a complete line of liquid-filled three-phase pad-mounted transformers that meet ANSI®/IEEE® standards and have obtained UL/cUL certification. With voltages up to 34.5 kV and ratings up to 5,000 kVA, these transformers suit high-voltage and large-capacity applications like substations and industrial power systems. Their oil-immersed design ensures superior performance and stability in high-load, high-voltage scenarios.
UL certificate cUL certificate
Main data
| Transformer Type | Pad Mounted, Compartmental-Type |
| Transformer Configuration | Liquid Filled Pad Mounted |
| Transformer Feed Type | Radial Feed |
| Phase | Three Phase |
| Capacity | 112.5 KVA |
| Vector Group | Dyn1 |
| Primary Voltage | 4160V |
| Secondary Voltage | 208Y/120 |
| Frequency | 60 Hz |
| Temperature Rise | 55/65°C |
| Cooling Class | ONAN; Self-Cooled |
| Efficiency Standard(s) | Meets DOE 2016 Standards, Meets ANSI/IEEE Standards |
| Winding Material | Copper |
| No Load Loss (in watts)) | +/- 260W |
| Full Load Loss (in watts) at 100% | +/- 1,300W |
Technical drawings
Application
- Digital Currency Mining – Provides stable power for remote mining farms, ensuring efficient operations.
- Data Centers – Converts high-voltage power for stable electricity and backup during outages.
- Renewable Energy – Transmits solar/wind power to the grid and supports battery storage.
- Commercial Buildings – Powers lighting, HVAC, and IT systems with backup for outages.
- Transport Hubs – Ensures electricity for airports, train stations, and ports (lighting, signals, cranes).
- Agriculture – Distributes power for farm equipment, irrigation, and storage, boosting productivity.
- Industry – Reliable power for machines, automation, and cost-efficient production.
- Schools & Hospitals – Supports critical infrastructure, research, and medical equipment
Specification
| Rated Power (KVA) |
High Voltage (KV) |
Low Voltage (V) |
No-load Loss (W) |
On-load Loss (W) |
Height (mm) |
Depth (mm) |
Width (mm) |
Weight (kg) |
Weight (Lbs) |
| 75KVA | 34.5KV 4.160KV 12.47KV 13.2KV 13.8KV 24940GrdY/14400 1247Grdy/7200 4160GrdY/2400 or others |
277V 347V 480V 600V 120/240V 208GrdY/120 415GrdY/240 480GrdY/277 600Y/347 |
180 | 1250 | 1430 | 910 | 1930 | 645 | 1422 |
| 150KVA | 280 | 2200 | 1530 | 980 | 1510 | 989 | 2180 | ||
| 300KVA | 480 | 3650 | 1680 | 1080 | 1660 | 1415 | 3119 | ||
| 500KVA | 680 | 5100 | 1790 | 1160 | 1810 | 1905 | 4200 | ||
| 750KVA | 980 | 7500 | 2030 | 1300 | 2030 | 2755 | 6074 | ||
| 1000KVA | 1150 | 10300 | 1854 | 1549 | 1651 | 3235 | 7132 | ||
| 1500KVA | 1640 | 14500 | 2150 | 1570 | 2210 | 5835 | 12864 | ||
| 2000KVA | 2160 | 20645 | 2220 | 1600 | 2380 | 6430 | 14175 | ||
| 2500KVA | 2680 | 23786 | 2330 | 1650 | 3070 | 8865 | 19544 | ||
| 3000KVA | 3300 | 30300 | 2460 | 1850 | 3260 | 11300 | 24912 | ||
| 3735KVA | 4125 | 37875 | 2680 | 2060 | 4080 | 14400 | 31746 |
