Three Phase Pad Mounted Transformer

Transformer Pad Mount Three Phase 2500kva 480V To 480V Oil Immersed Isolation Transformer

All Category

Three Phase Pad Mounted Transformer

Single Phase Pad Mounted Transformer

Three Phase Dry Type Transformer

Three Phase Isolation Transformer

Industrial Control Transformer

Single Phase Control Transformer

Toroidal Isolation Transformer

Substation Transformer

Mr. Steven

steven@winley-electric.com

86-18650108051

Contact Now

Transformer Pad Mount Three Phase 2500kva 480V To 480V Oil Immersed Isolation Transformer

Brand Name:	WINLEY
Model Number:	ZGS-2500/0.48
MOQ:	1unit
Price:	$5000-$150000
Packaging Details:	Plywood case
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

UL/cUL,CE,ISO

Type:

Pad Mounted Transformer

Rated Capacity:

2500kva

No. Of Phase:

Three Phases

Primary Voltage:

Secondary Voltage:

480Y/277

Vector Group:

Cooling Class:

ONAN; Self-Cooled

Temperature Rise:

Supply Ability:

1000set/month

Highlight:

Transformer Pad Mount Three Phase 2500kva

480V Three Phase Pad Mounted Transformer

Product Description

Transformer Pad Mount Three Phase 2500kva 480V To 480V Oil Immersed Isolation Transformer

Winley Electric’s Three-Phase 2500kVA 480V-to-480V Pad-Mounted Oil-Immersed Isolation Transformer . Tailored to meet the rigorous demands of modern power systems, this transformer combines the unique benefits of oil-immersed technology with robust isolation performance —all while backed by Winley Electric’s UL/cUL certification.

Product Photos

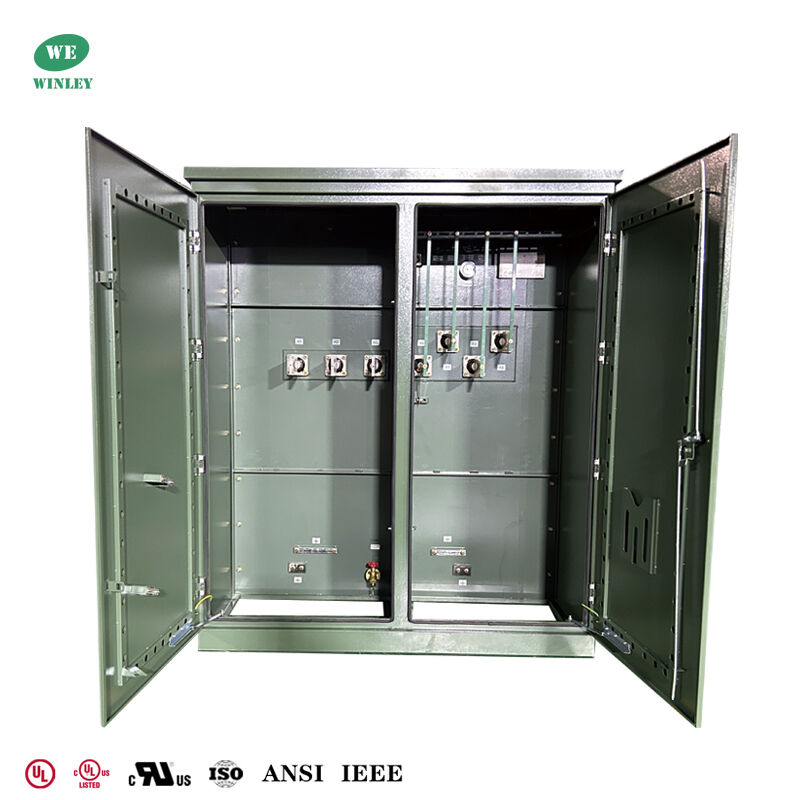

Transformer Pad Mount Three Phase 2500kva 480V To 480V Oil Immersed Isolation Transformer 0

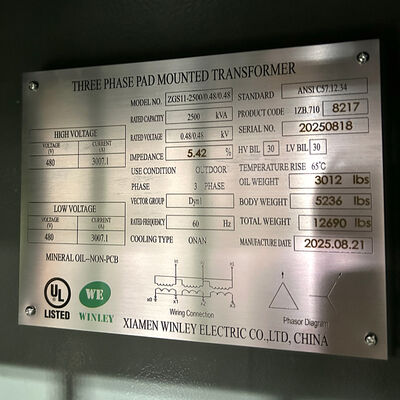

Transformer Pad Mount Three Phase 2500kva 480V To 480V Oil Immersed Isolation Transformer 1

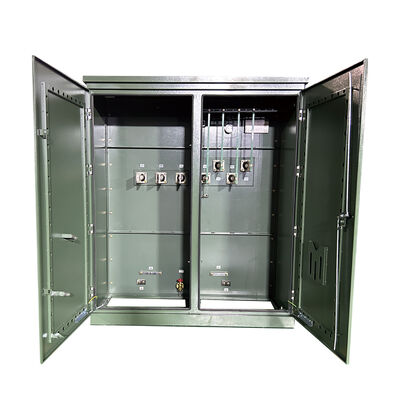

Transformer Pad Mount Three Phase 2500kva 480V To 480V Oil Immersed Isolation Transformer 2

Main data

No.	Item	Unit	Reqirement
1	Type	~	oil immersed, pad mounted
2	Rated capacity	kVA	2500
3	No. of Phase	~	3
4	Primary Voltage	V	480
5	Secondary Voltage	V	480Y/277
6	Cooling method	~	ONAN
7	Rated frequency	Hz	60
8	Vector group	~	Dyn1
9	Insulation class	~	A
10	Temperature rise	K	65
11	Impedance	%	5.75
12	Winding material	~	Aluminum
13	Core material	~	silicon steel
14	insulation liquid material	~	Mineral oil
15	Service condition	~	outdoor
16	Sea level	M	≤1000
17	Standard	~	IEEE ANSI C57.12.00

Technical drawings

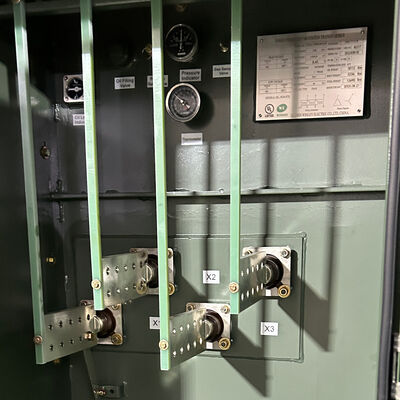

Transformer Pad Mount Three Phase 2500kva 480V To 480V Oil Immersed Isolation Transformer 4

Key Advantages: The Strength of Oil-Immersed Isolation Technology

1. Advanced Isolation: Safeguarding Equipment and Personnel

At the heart of this transformer is its exceptional isolation capability, made possible by a precision electromagnetic design that creates a complete electrical barrier between input and output circuits. This addresses three critical pain points in power systems:

Grid Interference Suppression: It blocks harmful harmonics, surges, and voltage spikes from the grid, delivering "clean power" to precision equipment like CNC machines, medical devices, and data servers. This reduces equipment failures and data loss caused by unstable power, minimizing costly downtime.
Personnel Safety: In cases where the grid’s neutral grounding is inadequate, the isolation design breaks the ground loop if leakage occurs on the load side, significantly lowering the risk of electric shock for on-site personnel.
System Segmentation: It prevents cross-interference and fault transmission between separate circuit systems (e.g., a factory’s production line and office infrastructure), boosting the overall stability of the power network.

2. Oil-Immersed Cooling: Efficiency and Longevity Combined
Winley Electric’s decades of expertise in oil-immersed technology shine through in this transformer, offering advantages that set it apart from dry-type alternatives:

Superior Heat Dissipation: High-quality transformer oil has a thermal conductivity far greater than air, quickly transferring heat from the core and windings to the outer shell. This reduces operational losses, improves energy efficiency, and ensures compliance with national energy-saving standards.
Strong Overload Resistance: During short-term load peaks, the transformer oil absorbs excess heat, protecting windings from overheating and damage. This durability extends the transformer’s service life to an average of 25+ years.
Low Noise & Maintenance: The oil-immersed structure operates at quieter levels (typically ≤55dB) and requires less frequent upkeep. The oil’s insulating and anti-rust properties reduce wear on internal components, cutting annual maintenance costs by 30% or more.

Specification

Rated Power (KVA)	High Voltage (KV)	Low Voltage (V)	No-load Loss (W)	On-load Loss (W)	Height (mm)	Depth (mm)	Width (mm)	Weight (kg)	Weight (Lbs)
75KVA	34.5KV 4.160KV 12.47KV 13.2KV 13.8KV 24940GrdY/14400 1247Grdy/7200 4160GrdY/2400 or others	277V 347V 480V 600V 120/240V 208GrdY/120 415GrdY/240 480GrdY/277 600Y/347	180	1250	1430	910	1930	645	1422
150KVA			280	2200	1530	980	1510	989	2180
300KVA			480	3650	1680	1080	1660	1415	3119
500KVA			680	5100	1790	1160	1810	1905	4200
750KVA			980	7500	2030	1300	2030	2755	6074
1000KVA			1150	10300	1854	1549	1651	3235	7132
1500KVA			1640	14500	2150	1570	2210	5835	12864
2000KVA			2160	20645	2220	1600	2380	6430	14175
2500KVA			2680	23786	2330	1650	3070	8865	19544
3000KVA			3300	30300	2460	1850	3260	11300	24912
3735KVA			4125	37875	2680	2060	4080	14400	31746

Production process

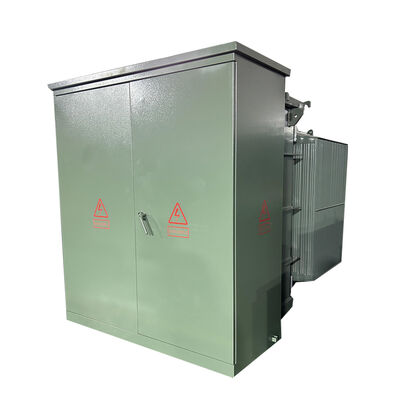

Transformer Pad Mount Three Phase 2500kva 480V To 480V Oil Immersed Isolation Transformer 5
