Three Phase Pad Mounted Transformer 1000 KVA 34.5KV to 208Y/120 Oil Immersed Power Transformer with 65/60 ℃ Temperature Rise ANSI C57.12.34 Standard Dyn1 Vector Group
| Brand Name: | WINLEY |
| Model Number: | ZGS-1000/35 |
| MOQ: | 1unit |
| Price: | $5000-$150000 |
| Packaging Details: | Plywood case |
| Payment Terms: | T/T |
Detail Information
Place of Origin:
CHINA
Certification:
UL/cUL,CE,ISO
Transformer Type:
Pad Mounted Transformer
Phase:
Three Phase
Capacity:
1000 KVA
Primary Voltage:
34.5KV
Secondary Voltage:
208Y/120
Temperature Rise:
65/60 ℃
Dimension:
2300mm*1900mm*1900mm
Standard:
ANSI C57.12.34
Delivery Time:
30days
Supply Ability:
1000set/month
Highlight:
65/60 ℃ Temperature Rise Pad Mounted Transformer
,ANSI C57.12.34 Standard Oil Immersed Transformer
,Dyn1 Vector Group Three Phase Transformer
Product Description

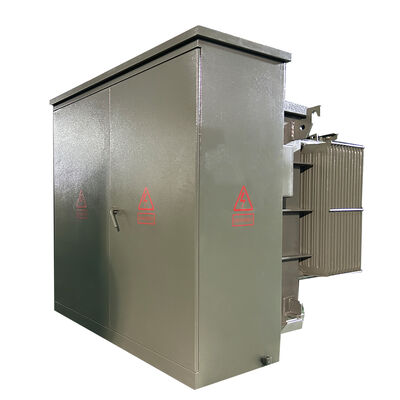

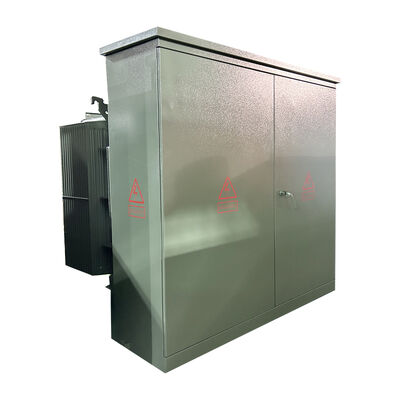

Three Phase Pad Mounted Transformer 1000kva 34.5kv To 208v Oil Immersed Power Transformer
Winley Electric delivers a wide selection of three‑phase pad‑mounted distribution transformers for commercial and industrial customers. We offer various ratings and accessory configurations so you can select the exact solution for your system.
WINLEY Electric’s liquid‑filled pad‑mounted transformers are dielectric‑fluid distribution transformers rated up to 34.5 kV. Designed for underground power distribution, they serve applications such as data centers, hospitals, commercial buildings, private utilities, and industrial plants. Our products are UL listed and designed and tested to applicable ANSI, IEEE, CSA, and DOE standards.

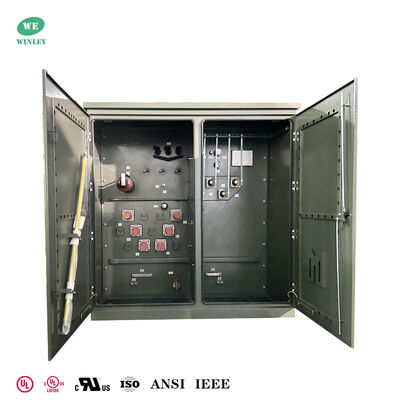

UL Certificate cUL Certificate
Main Technical Specifications
| No. | Particulars | Unit | Specification |
|---|---|---|---|

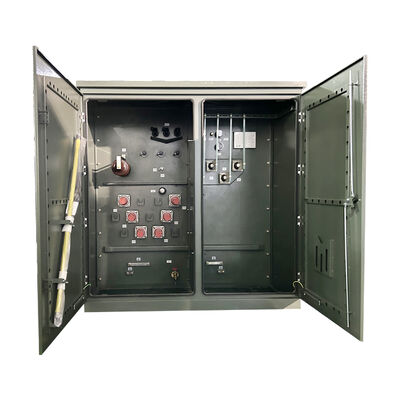

| 1 | Type | ~ | pad mounted, loop feed |
| 2 | Rated capacity | kVA | 1000 |
| 3 | No. of Phase | ~ | 3 |
| 4 | Primary voltage | V | 34500 |

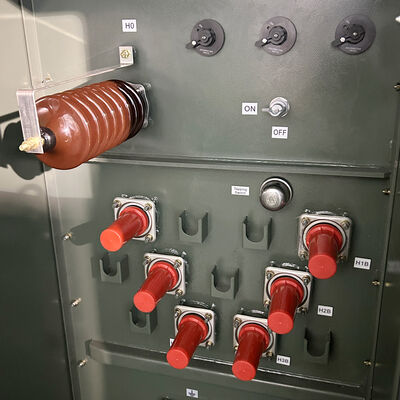

| 4 | Primary bushing | ~ | (6) 35KV class 200A Copper 1-piece bushing + (1) H0 Porcelain bushing |
| 4 | BIL | kV | 150 |
| 5 | Secondary voltage | V | 208Y/120 |

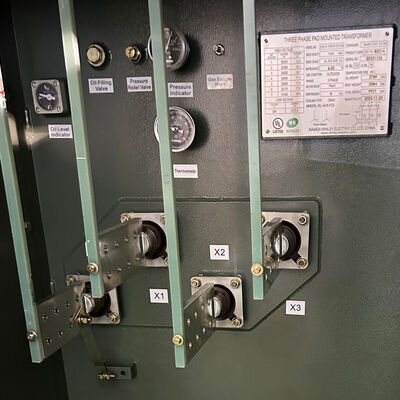

| 5 | Secondary bushing | ~ | (4) 10-hole spade |
| 5 | BIL | kV | 30 |
| 6 | Tapping type | ~ | off-circuit |
| 7 | Tapping range | V | 36200, 35360, 34500, 33640, 33000, 32175, 31350 |
| 8 | Cooling method | ~ | ONAN |
| 9 | Rated frequency | Hz | 60 |
| 10 | Vector group | ~ | Dyn1 |
| 11 | Insulation class | ~ | A |
| 12 | Temperature rise | ℃ | 65/60 (winding/top oil) |
Technical Drawings
Key Product Features
- Small size, reasonable and compact structure
- Fully sealed oil tank, fully insulated design, safe and reliable operation
- Strong overload capacity and superior resistance to sudden short circuits
- Both ring network and terminal power supply can be used
- Convenient operation and reliable power supply
- Energy saving, low loss, no higher than the new S9 loss value
- Good impact performance
- Cable joint number can operate 200A load current, with long mechanical and electrical life
Detailed Specifications
| Rated Power (KVA) |
High Voltage (KV) |
Low Voltage (V) |
No-load Loss (W) |
On-load Loss (W) |
Height (mm) |
Depth (mm) |
Width (mm) |
Weight (kg) |
Weight (Lbs) |
| 75KVA | 34.5KV 4.160KV 12.47KV 13.2KV 13.8KV 24940GrdY/14400 1247Grdy/7200 4160GrdY/2400 or others |
277V 347V 480V 600V 120/240V 208GrdY/120 415GrdY/240 480GrdY/277 600Y/347 |
180 | 1250 | 1430 | 910 | 1930 | 645 | 1422 |
| 150KVA | 280 | 2200 | 1530 | 980 | 1510 | 989 | 2180 | ||
| 300KVA | 480 | 3650 | 1680 | 1080 | 1660 | 1415 | 3119 | ||
| 500KVA | 680 | 5100 | 1790 | 1160 | 1810 | 1905 | 4200 | ||
| 750KVA | 980 | 7500 | 2030 | 1300 | 2030 | 2755 | 6074 | ||
| 1000KVA | 1150 | 10300 | 1854 | 1549 | 1651 | 3235 | 7132 | ||
| 1500KVA | 1640 | 14500 | 2150 | 1570 | 2210 | 5835 | 12864 | ||
| 2000KVA | 2160 | 20645 | 2220 | 1600 | 2380 | 6430 | 14175 | ||
| 2500KVA | 2680 | 23786 | 2330 | 1650 | 3070 | 8865 | 19544 | ||
| 3000KVA | 3300 | 30300 | 2460 | 1850 | 3260 | 11300 | 24912 | ||
| 3735KVA | 4125 | 37875 | 2680 | 2060 | 4080 | 14400 | 31746 |
