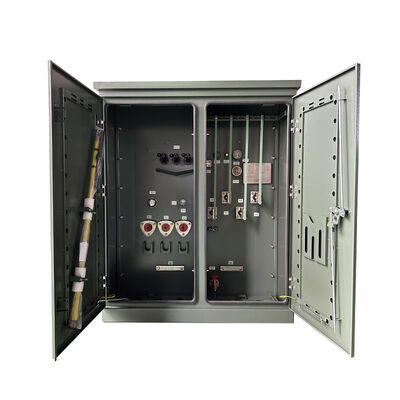

Three Phase Pad Mounted Transformer
>
150KVA Three Phase Pad Mounted Transformer 12.47KV To 208V Power Distribution Transformer with DOE 2016 Standards and DYN1 Vector Group
Detail Information
Place of Origin:
CHINA
Certification:
UL/cUL,CE,ISO
Transformer Type:
Pad Mounted Transformer
Phase:
Three Phase
Feed Type:
Radial Feed
Capacity:
150 KVA
Primary Voltage:
12470V
Secondary Voltage:
208Y/120
Tank Material:
304 Stainless Steel
Winding Material:
Copper
Delivery Time:
30days
Supply Ability:
1000set/month
Highlight:

12.47KV To 208V Three Phase Pad Mounted Transformer

,

DOE 2016 Standards Power Distribution Transformer

,

DYN1 Vector Group Oil Immersed Transformer

Product Description

150KVA Three Phase Pad Mounted Transformer Oil Immersed 12.47KV To 208V power distribution transformer 304 SS

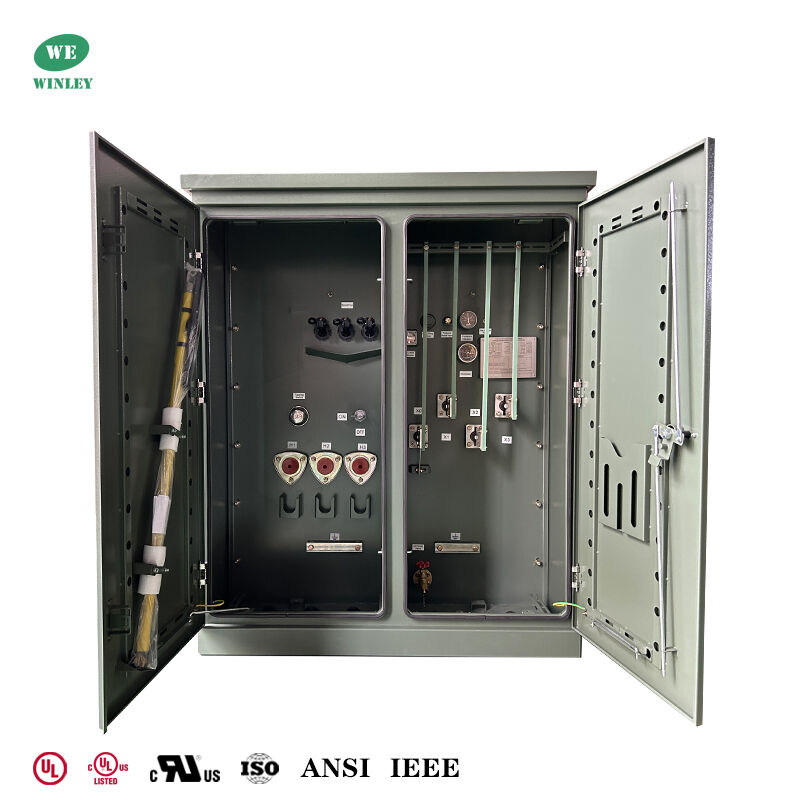

WINLEY three-phase pad-mounted transformers combine advanced design, proven protection, high efficiency and flexible configurations to reduce total cost of ownership while delivering stable, high-quality power. With broad standards compliance, UL/cUL certification, global delivery experience and rapid lead times, WINLEY is a reliable partner for distribution transformer projects worldwide.


150KVA Three Phase Pad Mounted Transformer 12.47KV To 208V Power Distribution Transformer with DOE 2016 Standards and DYN1 Vector Group 0

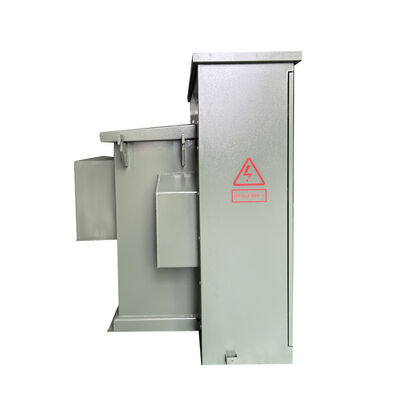

Most transformer enclosures are made of mild steel with a powder-coated paint finish. These enclosures hold up well in normal service conditions. But they can rust rapidly in corrosive environments.304 stainless steel meets the needs of most corrosive environments, Ideally, this protects the unit for roughly 50 years.


150KVA Three Phase Pad Mounted Transformer 12.47KV To 208V Power Distribution Transformer with DOE 2016 Standards and DYN1 Vector Group 1


Technical drawings

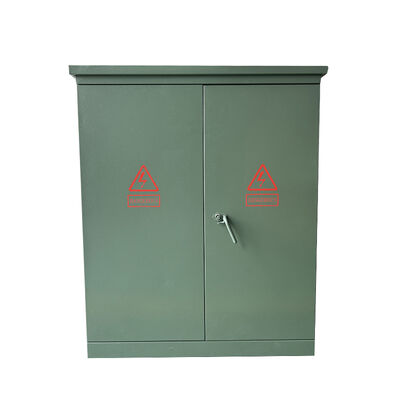

The three phase pad mounted transformer immerses the load switch and fuse on the high voltage side of the transformer with the core and windings of the transformer in the same oil tank, has the advantages of advanced structure, reliable performance, energy saving and consumption reduction, flexible use, strong adaptability, and economical advantages.


150KVA Three Phase Pad Mounted Transformer 12.47KV To 208V Power Distribution Transformer with DOE 2016 Standards and DYN1 Vector Group 2


Main data


Transformer Type Pad Mounted, Compartmental-Type
Transformer Configuration Liquid Filled Pad Mounted
Transformer Feed Type Radial Feed
Phase Three Phase
Capacity 150 KVA
Vector Group DYN1
Primary Voltage 12470V
Secondary Voltage 208Y/120
Frequency 60 Hz
Temperature Rise 65°C
Insulation Rating Class E Insulation - 120°C, 248°F
Cooling Class ONAN; Self-Cooled
Efficiency Standard(s) Meets DOE 2016 Standards, Meets CSA Standards Meets ANSI/IEEE Standards
Winding Material Copper
Tank Material 304 Stainless Steel


Application


  • Digital Currency Mining – Provides stable power for remote mining farms, ensuring efficient operations.
  • Data Centers – Converts high-voltage power for stable electricity and backup during outages.
  • Renewable Energy – Transmits solar/wind power to the grid and supports battery storage.
  • Commercial Buildings – Powers lighting, HVAC, and IT systems with backup for outages.
  • Transport Hubs – Ensures electricity for airports, train stations, and ports (lighting, signals, cranes).
  • Agriculture – Distributes power for farm equipment, irrigation, and storage, boosting productivity.
  • Industry – Reliable power for machines, automation, and cost-efficient production.
  • Schools & Hospitals – Supports critical infrastructure, research, and medical equipment



Specification


Rated Power
(KVA)		 High Voltage
(KV)		 Low Voltage
(V)		 No-load Loss
(W)		 On-load Loss
(W)		 Height
(mm)		 Depth
(mm)		 Width
(mm)		 Weight
(kg)		 Weight
(Lbs)
75KVA 34.5KV
4.160KV
12.47KV
13.2KV
13.8KV
24940GrdY/14400
1247Grdy/7200
4160GrdY/2400
or others		 277V
347V
480V
600V
120/240V
208GrdY/120
415GrdY/240
480GrdY/277
600Y/347		 180 1250 1430 910 1930 645 1422
150KVA 280 2200 1530 980 1510 989 2180
300KVA 480 3650 1680 1080 1660 1415 3119
500KVA 680 5100 1790 1160 1810 1905 4200
750KVA 980 7500 2030 1300 2030 2755 6074
1000KVA 1150 10300 1854 1549 1651 3235 7132
1500KVA 1640 14500 2150 1570 2210 5835 12864
2000KVA 2160 20645 2220 1600 2380 6430 14175
2500KVA 2680 23786 2330 1650 3070 8865 19544
3000KVA 3300 30300 2460 1850 3260 11300 24912
3735KVA 4125 37875 2680 2060 4080 14400 31746

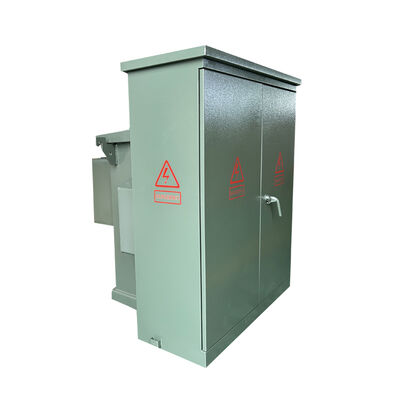

Production process
