10Kva Medical Isolation Transformer for IT System Instrument Transformer

Brand Name:	WINLEY
Model Number:	ES710
MOQ:	1unit
Price:	$100-$10000
Packaging Details:	Plywood case
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

CE,ISO

Product Name:

Medical Isolation Transformer

Frequency:

50/60Hz

Rated Capacity:

3.15kVA/5kVA/6.3kVA/8kVA/10kVA

Noise Level:

<40dB

Protection Class:

IP 00

Cooling Method:

AN,Self-Cooled

Efficiency:

Temperature-25℃~40℃ （40℃ ,93% RH,56days） Rise:

F≤80K

Supply Ability:

10000set/month

Product Description

Medical Isolation Transformer for IT System Instrument Transformer

Medical isolation transformers are isolation transformers for earthed devices used in medical facilities. The transformers isolate and separate the connected device from the medical facility’s isolated electric power network. In addition, the transformers keep the leakage current of the devices within the limits set for medical devices.

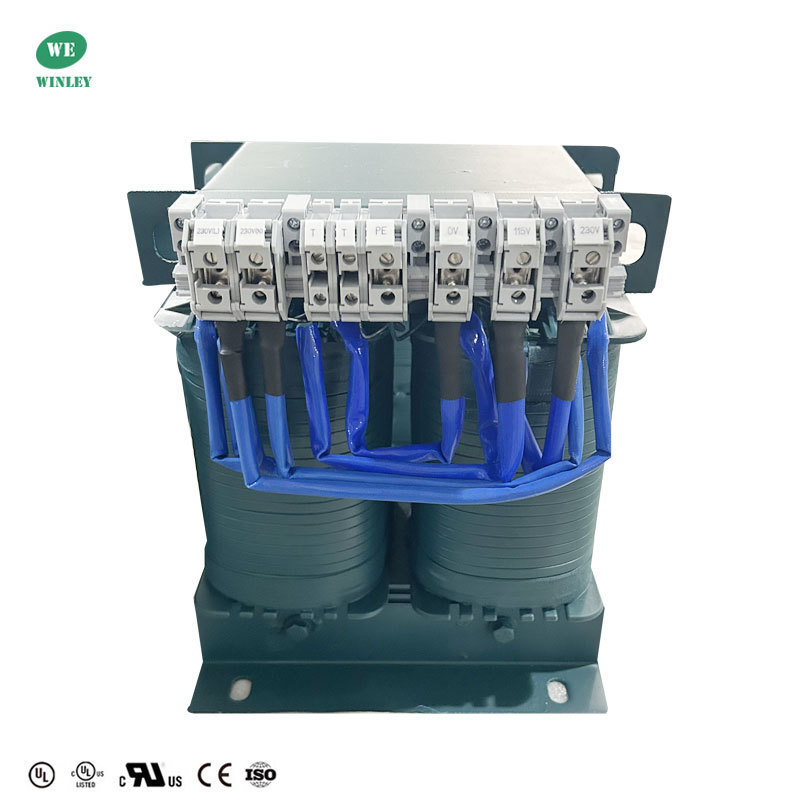

10Kva Medical Isolation Transformer for IT System Instrument Transformer 0

Working principle

IT series medical isolation transformers with galvanically isolated windings provide temperature monitoring thanks to PTC thermistors placed in the windings.

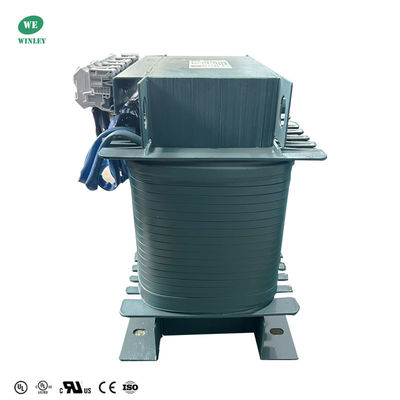

10Kva Medical Isolation Transformer for IT System Instrument Transformer 1

Main data

Rated Power	3.15KVA～10KVA	Overload capacity	Twice the rated current for 1 minute
Input Voltage	110-240V	Cooling method	Self-Cooled
output Voltage	110-240V	Protection level	IP00/IP20
Frequency	50Hz/60Hz	Temperature Rise	F≤80K
Efficiency	＞95%	Ambient Temperature	-15℃~+40℃
Insulation Rating	F/H	Sound Level	≤40dB(A)
Dielectric strength	4000VAC/min	Altitude	≤2000M
Insulation resistance	≥500MΩ	Relative humidity	<90%
Ground resistance	25A<100mΩ	Design life	2 Year

Medical Isolation Transformer Application

Isolation transformers are designed to reduce the effect of electrical faults. Thanks to the electrostatic protection, isolation transformers are used for the power supply of operating rooms, laboratory instruments, intensive care units and similar sensitive devices.

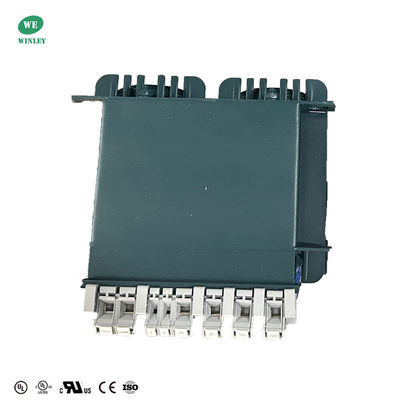

10Kva Medical Isolation Transformer for IT System Instrument Transformer 2

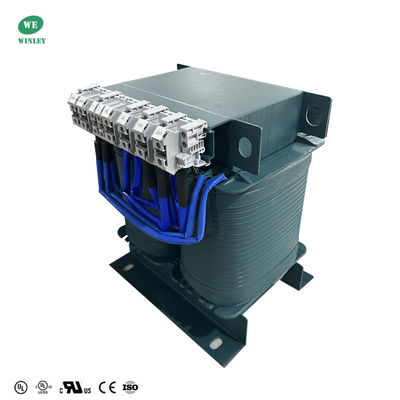

10Kva Medical Isolation Transformer for IT System Instrument Transformer 3

Advantages of Medical Isolation Transformer

Overload protection.
Standard Al, optional Cu windings.
Standard power ranges from 3.15 to 10 kVA.
Standard Class F, optional Class B.
High overload capacity

Production process

10Kva Medical Isolation Transformer for IT System Instrument Transformer 4

10Kva Medical Isolation Transformer for IT System Instrument Transformer 5
