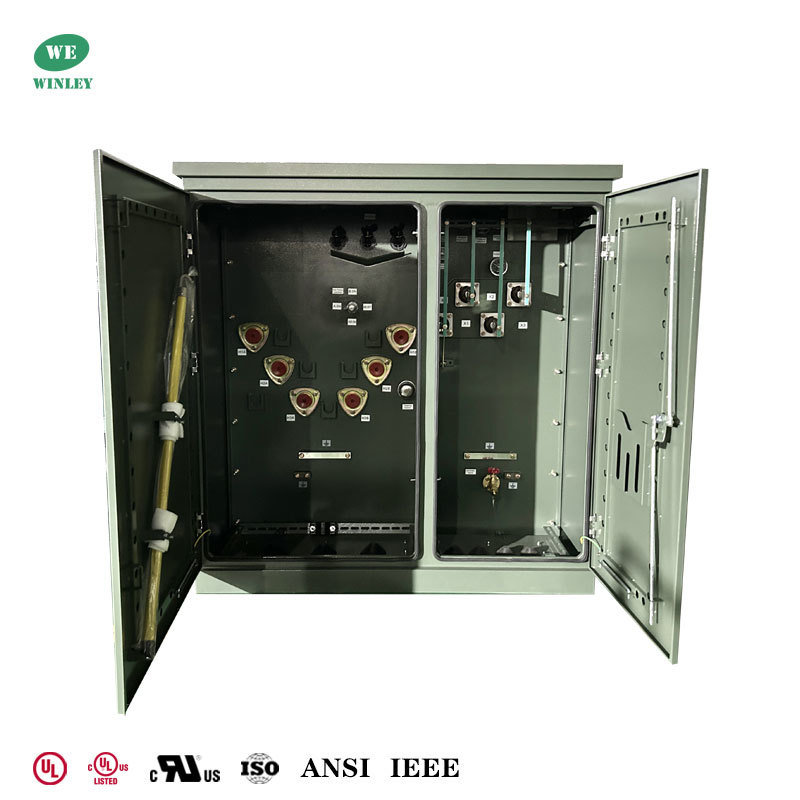

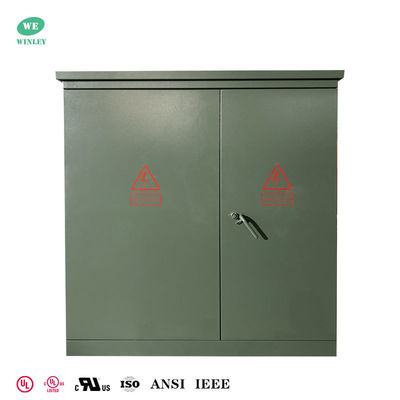

Cooper Three Phase Pad Mounted Transformer with DYN1 Vector Group and ONAN Cooling

Brand Name: WINLEY
Model Number: ZGS-500/12.47
MOQ: 1unit
Price: $5000-$150000
Packaging Details: Plywood case
Payment Terms: T/T
Detail Information
Product Description
Detail Information
Place of Origin:
CHINA
Certification:
UL/cUL,CE,ISO
Document:
UL&cUL certification-Three...er.pdf
Type:
Pad Mount Transformers
No. Of Phase:
Three Phases
Rated Capacity:
500kva
Primary Voltage:
12470V
Secondary Voltage:
208Y/120
Vector Group:
DYN1
Cooling Class:
ONAN; Self-Cooled
Efficiency Standard(s):
Meets DOE 2016 Standards, Meets CSA Standards Meets ANSI/IEEE Standards
Supply Ability:
1000set/month
Highlight:

DYN1 Pad Mounted Transformer

,

Cooper Outdoor Pad Mounted Transformer

,

ONAN Three Phase Transformer

Product Description
Three Phase Pad Mounted Transformer Step Up Transformer 12.47kv To 208v Cooper Outdoor Pad Mounted Transformer

Three Phase Pad Mounted Transformer Step Up Transformer 12.47kv To 208v Cooper Outdoor Pad Mounted Transformer UL Listed

WINLEY Electrical manufactures three‑phase pad transformers certified to UL/cUL and compliant with ANSI, IEEE, CSA and DOE‑2016 standards. Available specifications include up to 34.5 kV system voltage and up to 5,500 kVA rated power. We have extensive experience in design, production and after‑sales service for public utilities across the United States and Canada.

Cooper Three Phase Pad Mounted Transformer with DYN1 Vector Group and ONAN Cooling 0 Cooper Three Phase Pad Mounted Transformer with DYN1 Vector Group and ONAN Cooling 1 Cooper Three Phase Pad Mounted Transformer with DYN1 Vector Group and ONAN Cooling 2 Cooper Three Phase Pad Mounted Transformer with DYN1 Vector Group and ONAN Cooling 3
Main Technical Specifications
Transformer Type Pad Mounted, Compartmental-Type
Transformer Configuration Liquid Filled Pad Mounted
Transformer Feed Type Loop Feed
Phase Three Phase
Capacity 500 KVA
Vector Group Dyn1
Primary Voltage 12470V
Secondary Voltage 208Y/120
Frequency 60 Hz
Temperature Rise 65°C
Insulation Rating Class E Insulation - 120°C, 248°F
Cooling Class ONAN; Self-Cooled
Efficiency Standard(s) Meets DOE 2016 Standards, Meets CSA Standards Meets ANSI/IEEE Standards
Winding Material Copper
Ambient Temperature Rating 40°C
Efficiency % 99.10%
Key Features
  • Safe and Reliable: Efficient insulation protection and heat dissipation equipment with well-designed cable cabinet structure. Strong overload capacity (2 times for 2 hours, 1.6 times for 7 hours) without affecting lifespan.
  • Convenient Connections: Elbow plugs enable easy high-voltage cable connections with plug-in/out operations under power.
  • Strong Defense Capability: Resists instantaneous voltage peaks with double fuse protection (BAY-o-NET and ELSP fuses).
  • Flexible Power Supply: Available as terminal type or ring network type, allowing one transformer to supply power to another.
  • Energy Saving and Environmental Protection: Designed with energy efficiency and environmental considerations.
Cooper Three Phase Pad Mounted Transformer with DYN1 Vector Group and ONAN Cooling 4
Environmental Conditions
  • Altitude: not more than 1000 meters
  • Ambient temperature: no higher than +40°C, no lower than -25°C
  • Daily average temperature difference no more than 35°C
  • Annual average temperature difference no more than 20°C
  • Wind speed does not exceed 35m/s
  • No explosion hazard, chemical corrosion or severe vibration at installation site
  • Cooling method: natural air cooling (AN)
Technical Specifications
Rated Power (KVA) High Voltage (KV) Low Voltage (V) No-load Loss (W) On-load Loss (W) Height (mm) Depth (mm) Width (mm) Weight (kg) Weight (Lbs)
75KVA34.5KV 4.160KV 12.47KV 13.2KV 13.8KV 24940GrdY/14400 1247Grdy/7200 4160GrdY/2400 or others277V 347V 480V 600V 120/240V 208GrdY/120 415GrdY/240 480GrdY/277 600Y/3471801250143091019306451422
150KVA2802200153098015109892180
300KVA480365016801080166014153119
500KVA680510017901160181019054200
750KVA980750020301300203027556074
1000KVA11501030018541549165132357132
1500KVA164014500215015702210583512864
2000KVA216020645222016002380643014175
2500KVA268023786233016503070886519544
3000KVA3300303002460185032601130024912
3735KVA4125378752680206040801440031746
Production Process
Cooper Three Phase Pad Mounted Transformer with DYN1 Vector Group and ONAN Cooling 5 Cooper Three Phase Pad Mounted Transformer with DYN1 Vector Group and ONAN Cooling 6 Cooper Three Phase Pad Mounted Transformer with DYN1 Vector Group and ONAN Cooling 7 Cooper Three Phase Pad Mounted Transformer with DYN1 Vector Group and ONAN Cooling 8
