500Kva Three Phase Pad Mounted Transformer Radial Feed 12.87KV To 240V Multi‑Tap Voltage Regulation UL‑Certified

Brand Name:	WINLEY
Model Number:	ZGS-500/12.87
MOQ:	1unit
Price:	$5000-$150000
Packaging Details:	Plywood case
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

UL/cUL,CE,ISO

Transformer Type:

Pad Mounted Transformer

Phase:

Three Phase

Feed Type:

Radial Feed

Capacity:

500 KVA

Primary Voltage:

12870V

Secondary Voltage:

240/120V

Frequency:

60 Hz

Efficiency Ratings:

ANSI C57.12.34

Supply Ability:

1000set/month

Product Description

500Kva Three Phase Pad Mounted Transformer Radial Feed 12.87KV To 240V Multi‑Tap Voltage Regulation UL‑Certified

Overview

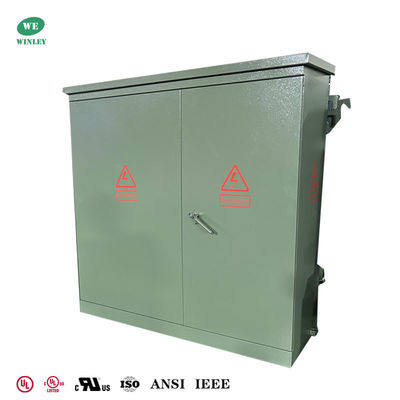

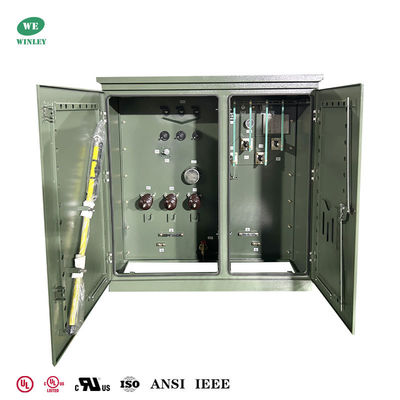

The Winley 500 kVA pad‑mounted, radial‑feed distribution transformer is engineered for reliable, efficient service in indoor or outdoor applications. Designed to IEEE/ANSI C57.12.34 standards and built for demanding utility and commercial installations, this unit combines flexible off‑circuit multi‑tapping with robust construction and UL‑grade quality assurance.

500Kva Three Phase Pad Mounted Transformer Radial Feed 12.87KV To 240V Multi‑Tap Voltage Regulation UL‑Certified 0

500Kva Three Phase Pad Mounted Transformer Radial Feed 12.87KV To 240V Multi‑Tap Voltage Regulation UL‑Certified 1

500Kva Three Phase Pad Mounted Transformer Radial Feed 12.87KV To 240V Multi‑Tap Voltage Regulation UL‑Certified 3

Main data

specification data
No.	Particulars	Unit	Specification	Remark
1	Type	~	pad mounted, radial feed
2	Rated capacity	kVA	500
3	No. of Phase	~	3
4	Primary voltage	V	12870	Delta

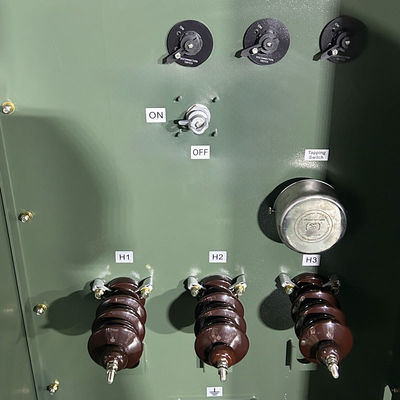

5	Primary termination	~	(3) 15kV class, BIL95kV, Porcelain bushing	live front
6	Secondary voltage	V	240/120	Delta w/center tap

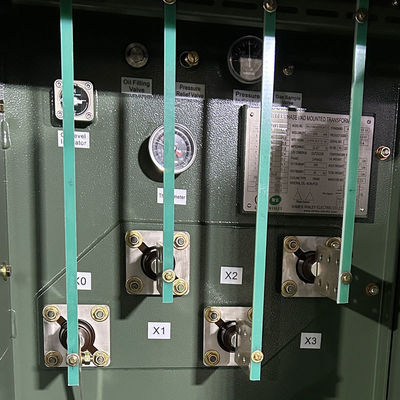

7	Secondary connection	~	(4) 6-hole spade	live front
7	Tapping type	~	off-circuit tapping
8	Tapping range	%	14400, 13800, 13200, 12870, 12470, 12000, 11500
9	Cooling method	~	ONAN
10	Rated frequency	Hz	60
11	Vector group	~	Dd0
12	Insulation class	~	A (105℃)
13	Temperature rise	K	65

Technical drawings

Performance

Safe and Reliable: They use efficient insulation protection and heat dissipation equipment, with a well-designed cable cabinet structure ensuring safety and reliability. They have a strong overload capacity, allowing for 2 times overload for 2 hours and 1.6 times overload for 7 hours without affecting their lifespan.
Convenient Connections: The use of elbow plugs makes it easy to connect high-voltage incoming cables, allowing for plug-in and plug-out operations under power.
Strong Defense Capability: They can effectively resist instantaneous voltage peaks, protecting power equipment from damage. They also feature double fuse protection:
Insertion Fuse (BAY-o-NET): A dual-sensitive fuse (temperature and current) protecting against short-circuit faults on the secondary side.
Backup Current Limiting Protection Fuse (ELSP): Protects against faults inside the transformer and the high-voltage side.
Flexible Power Supply: They can be either terminal type or ring network type, allowing one transformer to supply power to another, enhancing power supply distance and reliability.
Energy Saving and Environmental Protection: Designed with energy efficiency and environmental

Specification

Rated Power (KVA)	High Voltage (KV)	Low Voltage (V)	No-load Loss (W)	On-load Loss (W)	Height (mm)	Depth (mm)	Width (mm)	Weight (kg)	Weight (Lbs)
75KVA	34.5KV 4.160KV 12.47KV 13.2KV 13.8KV 24940GrdY/14400 1247Grdy/7200 4160GrdY/2400 or others	277V 347V 480V 600V 120/240V 208GrdY/120 415GrdY/240 480GrdY/277 600Y/347	180	1250	1430	910	1930	645	1422
150KVA			280	2200	1530	980	1510	989	2180
300KVA			480	3650	1680	1080	1660	1415	3119
500KVA			680	5100	1790	1160	1810	1905	4200
750KVA			980	7500	2030	1300	2030	2755	6074
1000KVA			1150	10300	1854	1549	1651	3235	7132
1500KVA			1640	14500	2150	1570	2210	5835	12864
2000KVA			2160	20645	2220	1600	2380	6430	14175
2500KVA			2680	23786	2330	1650	3070	8865	19544
3000KVA			3300	30300	2460	1850	3260	11300	24912
3735KVA			4125	37875	2680	2060	4080	14400	31746

Production process

500Kva Three Phase Pad Mounted Transformer Radial Feed 12.87KV To 240V Multi‑Tap Voltage Regulation UL‑Certified 5

500Kva Three Phase Pad Mounted Transformer Radial Feed 12.87KV To 240V Multi‑Tap Voltage Regulation UL‑Certified 6
