Three Phase Dry Type Transformer
>
500kva vacuum impregnated dry type transformer Class H 180℃ 4160 V to 208Y DOE 2025 VPI Medium Voltage transformer
All Category

Three Phase Isolation Transformer

Oil Type Transformer

Three Phase Pad Mounted Transformer

Single Phase Pad Mounted Transformer

Pole Mounted Transformer

UPS Isolation Transformer

Medical Isolation Transformer

Industrial Control Transformer

Cast Coil Transformer

Single Phase Control Transformer

Toroidal Isolation Transformer

Three Phase Dry Type Transformer

EI Power Transformer

Three Phase Auto Transformer

Three Phase Voltage Regulator

Three Phase Reactor
Contact Us
Mr. Steven
steven@winley-electric.com
86-18650108051
Contact Now
500kva vacuum impregnated dry type transformer Class H 180℃ 4160 V to 208Y DOE 2025 VPI Medium Voltage transformer

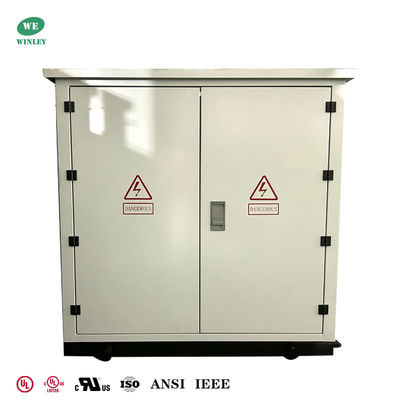

  • Name

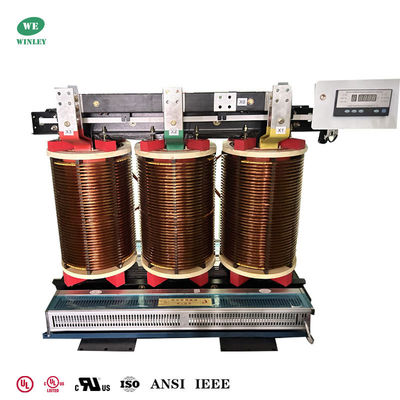

  • Name

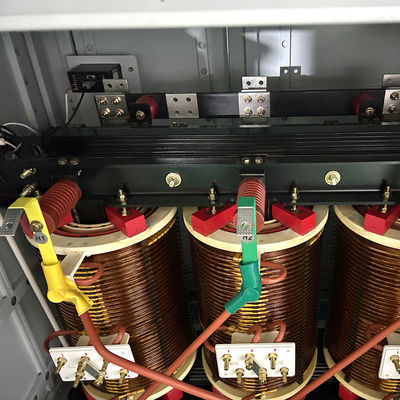

  • Name

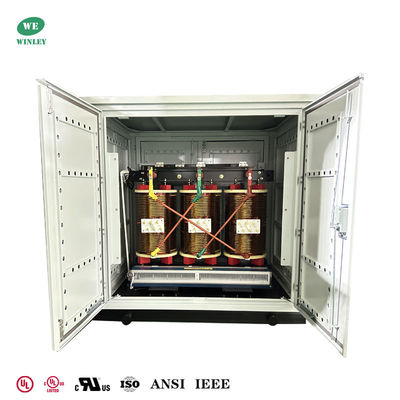

  • Name
  • Name

500kva vacuum impregnated dry type transformer Class H 180℃ 4160 V to 208Y DOE 2025 VPI Medium Voltage transformer

Brand Name: WINLEY
Model Number: 500KVA
MOQ: 1unit
Price: $1000-$150000
Packaging Details: Plywood case
Payment Terms: T/T
Detail Information
Product Description
Detail Information
Place of Origin:
CHINA
Certification:
UL,CE,ISO
Type:
Vacuum Pressure Impregnated (VPI) Transformer
Rated Capacity:
500KVA
Insulation Class:
Class H
Insulation:
180℃
Primary Voltage:
4160 V
Secondary Voltage:
208Y/120 V
Enclosure:
NEMA 3R
Efficiency:
U.S. DOE 2025
Supply Ability:
1000set/month
Product Description

500kva vacuum impregnated dry type transformer Class H 180℃ 4160 V to 208Y DOE 2025 VPI Medium Voltage transformer





VPI (Vacuum Pressure Impregnated) Transformer is a type of transformer or to be more specifically a type of a dry type transformer. In this type of transformer the transformer windings are covered with a special type of resin with the application of vacuum pressure.



The insulation scheme of H-class three-phase dry-type transformers is designed with 180℃ H-class materials and is made of H-class solvent-free insulating varnish vacuum pressure impregnation and high-temperature curing treatment and have extremely good electrical and mechanical properties.



500kva vacuum impregnated dry type transformer Class H 180℃ 4160 V to 208Y DOE 2025 VPI Medium Voltage transformer 0



500kva vacuum impregnated dry type transformer Class H 180℃ 4160 V to 208Y DOE 2025 VPI Medium Voltage transformer 1



500kva vacuum impregnated dry type transformer Class H 180℃ 4160 V to 208Y DOE 2025 VPI Medium Voltage transformer 2



500kva vacuum impregnated dry type transformer Class H 180℃ 4160 V to 208Y DOE 2025 VPI Medium Voltage transformer 3



VPI Transformer Main data



Transformer Type: Medium Voltage
Phase: Three Phase
Vector Group: DYN11
Frequency: 60 Hz
kVA: 500
Primary Voltage: 4160 V Delta
Secondary Voltage: 208Y/120 V Wye-N
Winding Material: Copper
Insulation: 180°C
Efficiency: Meets or Exceeds U.S. DOE 2025
Temperature Rise: 150°C
Efficiency: (Std): 98.99%
Sound Level: Meets NEMA ST-20 Standards
Enclosure Material: NEMA Type 3R Heavy Duty Ventilated



VPI Transformer Drawing



500kva vacuum impregnated dry type transformer Class H 180℃ 4160 V to 208Y DOE 2025 VPI Medium Voltage transformer 4



Key Features of VPI Transformer



  • High Thermal Endurance:The VPI transformers are designed and developed to deliver high efficiency even in high temperature applications. These transformers can manage thermal stress much more efficiently when compared to the oil type transformers.
  • Extended Transformer Winding Life:Due to the VPI process the insulation of the transformer winding is of highest quality. This protects the winding from all types of dust, contamination, and moisture ensuring the winding will not short and thus extending transformer life.
  • Available in Multiple Power Rating:VPI Transformer are available for wide range application in multiple power ratings. All sizes and power ratings offer the same level of thermal endurance, high performance, and reliability.
  • Minimum Maintenance Requirement:As there is no oil being used in the VPI transformer for insulation and cooling purposes, there is no probability of any type of oil leak or oil related maintenance work.
  • Reduced Noise and Vibration Levels:VPI transformers are designed and developed in such a way that they operate very quietly as compared to a regular oil type transformer. Lack of an oil pump and other parts like this also reduce the noise and vibration level. This makes them the perfect transformer for use in noise sensitive areas.



VPI Transformer Specification



Product Specifications
Rated capacity High voltage Tapping Low voltage Connecting groupid No-load loss Load-loss
(120℃)		 Load-loss
(75(℃)		 Short circuit impedance No-load current Dimensions weight Shell size
L*B*H L*B*H
(KVA) (KV) (%) (KV) (W) (W) (W) (%) (%) (mm) (kg) (mm)
100 6
6.3
6.6
10
10.5
11		 ±2×2.5
±5		 0.4 Yyn0
or
Dyn11		 405 2165 1765 4 2 850x600x830 590 1250*1000*1150
125 480 2590 2115 1.8 870x650x890 650 1300*100*1300
160 560 3100 2530 1.8 900x710x930 800 1300*1100*1350
200 655 3970 3240 1.6 840x750x880 880 1350*1100*1500
250 760 4675 3815 1.6 990x770x1030 1050 1400*1150*1550
315 880 5610 4575 1.1 1020x790x1080 1260 1450*1150*1550
400 1040 6630 5410 1.4 1060x880x1180 1570 1450*1200*1600
500 1200 7945 6480 1.4 1090x900x1220 1785 1500*1200*1700
630 1400 9265 7560 1.3 1200x920x1150 1860 1600*1200*1700
800 1695 11560 9430 1.3 1260x920x1200 2180 1650*1200*1800
1000 1985 13345 10885 1.1 1320x950x1250 2590 1750*1300*1800
1250 2385 15640 12760 6 1.1 1350x980x1320 2980 1750*1350*1900
1600 2735 18105 14770 1.1 1400x1120x1400 3580 1800*1400*2000
2000 3320 21250 17335 1 1440x1120x1520 4070 1850*1450*2200
2500 4000 24735 20180 1 1500x1120x1640 4820 1900*1500*2200



Production process



500kva vacuum impregnated dry type transformer Class H 180℃ 4160 V to 208Y DOE 2025 VPI Medium Voltage transformer 5





500kva vacuum impregnated dry type transformer Class H 180℃ 4160 V to 208Y DOE 2025 VPI Medium Voltage transformer 6



500kva vacuum impregnated dry type transformer Class H 180℃ 4160 V to 208Y DOE 2025 VPI Medium Voltage transformer 7



Tags:

indoor dry type transformer

three phase dry type transformer

step up transformer
