UL Listed 1500Kva Three Phase Pad Mounted Transformer 34.5KV To 480Y/277V Power Distribution Transformer

Brand Name: WINLEY
Model Number: ZGS-1500/34.5
MOQ: 1unit
Price: $5000-$150000
Packaging Details: Plywood case
Payment Terms: T/T
Detail Information
Product Description
Detail Information
Place of Origin:
CHINA
Certification:
UL/cUL,CE,ISO
Transformer Type:
Liquid Filled Pad Mounted
Phase:
Three Phase
Feed Type:
Loop Feed
Capacity:
1500 KVA
Primary Voltage:
34500V
Secondary Voltage:
480Y/277
Frequency:
60 Hz
Efficiency Ratings:
ANSI C57.12.34
Supply Ability:
1000set/month
Highlight:

UL listed three phase transformer

,

1500Kva pad mounted transformer

,

34.5KV to 480Y/277V power transformer

Product Description

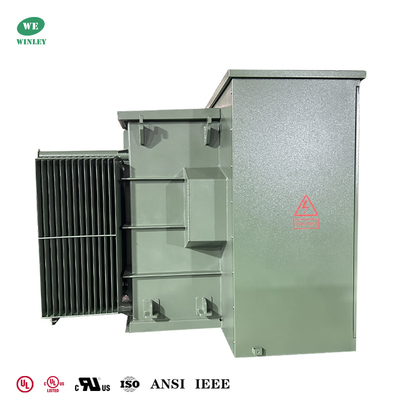

UL Listed 1500Kva Three Phase Pad Mounted Transformer 34.5KV To 480Y/277V Power Distribution Transformer





This 1500 kVA pad-mounted distribution transformer is engineered for reliable medium-voltage distribution in commercial, industrial, municipal and utility applications. Designed and manufactured to ANSI C57.12.34 standards, it combines robust electrical performance, safety features and weather-resistant construction for indoor or outdoor installation.



UL Listed 1500Kva Three Phase Pad Mounted Transformer 34.5KV To 480Y/277V Power Distribution Transformer 0



UL Listed 1500Kva Three Phase Pad Mounted Transformer 34.5KV To 480Y/277V Power Distribution Transformer 1



UL Listed 1500Kva Three Phase Pad Mounted Transformer 34.5KV To 480Y/277V Power Distribution Transformer 2

Key features

  • Type: Pad-mounted, radial feed
  • Rated capacity: 1500 kVA
  • Phase: 3-Phase
  • Primary voltage: 34,500 V (Delta) with three 35 kV-class porcelain bushings (live front)
  • Secondary voltage: 480Y/277 V (Wye-N) with 4-hole spade bushings (live front)
  • Vector group: Dyn1
  • Cooling method: ONAN (Oil Natural Air Natural)
  • Tapping: Off-circuit tap changer with multiple tap positions
  • Standards: Built to ANSI C57.12.34

UL Listed 1500Kva Three Phase Pad Mounted Transformer 34.5KV To 480Y/277V Power Distribution Transformer 3

Safety and accessory package

  • This unit comes with a comprehensive set of protective and service features for safe operation and simplified maintenance:
  • 2-position HV break switch
  • Drain and sample valve in HV compartment
  • Temperature gauge and liquid level gauge
  • Pressure/vacuum gauge and pressure relief valve
  • Bayonet fuse & current-limiting fuse on HV side
  • Under-oil arrester with ISO switch
  • These accessories provide surge protection, overpressure safety, easy sampling and reliable switching necessary for grid-connected distribution transformers.

UL Listed 1500Kva Three Phase Pad Mounted Transformer 34.5KV To 480Y/277V Power Distribution Transformer 4  UL Listed 1500Kva Three Phase Pad Mounted Transformer 34.5KV To 480Y/277V Power Distribution Transformer 5

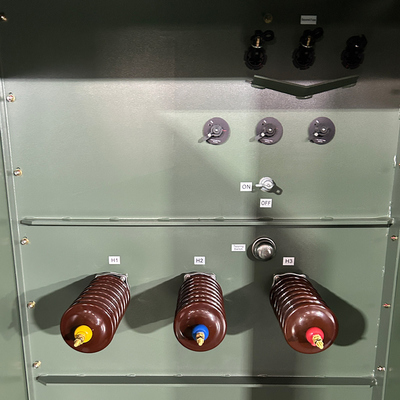

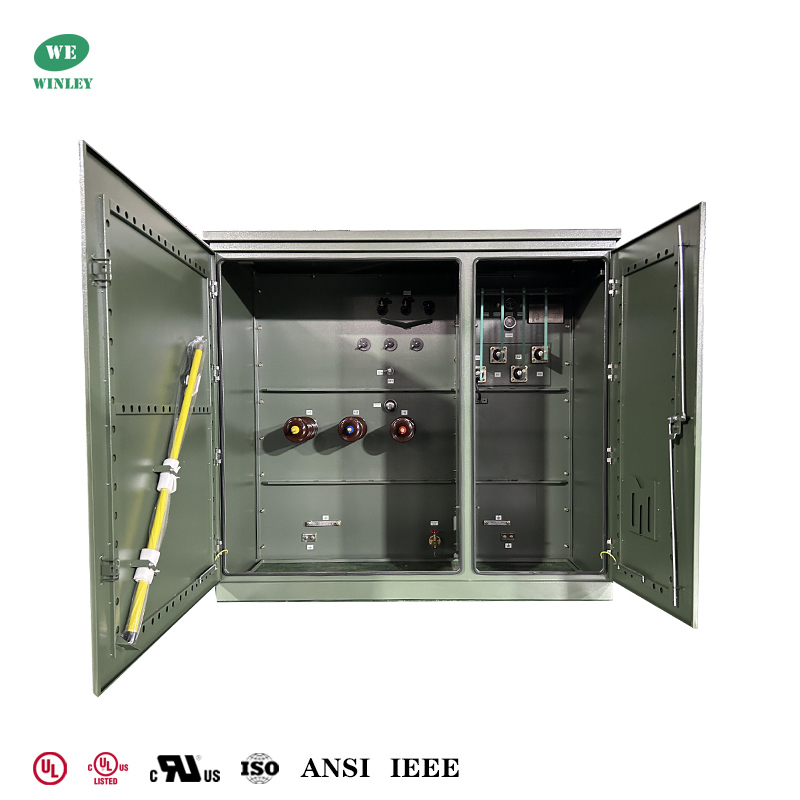

Technical drawings



UL Listed 1500Kva Three Phase Pad Mounted Transformer 34.5KV To 480Y/277V Power Distribution Transformer 6



Why choose us



  • The product range spans from 45KVA to 5500 KVA, with a voltage rating of up to 34.5 KV, conforming to or exceeding standards such as DOE 2016, IEEE/ANSI, CSA , IEC , NEMA.
  • The products hold UL/cUL certification (Certificate Numbers: UL-US-2431836-0, UL-CA-2423202-0) and can obtain UL (partner authorization) based on customer requests.
  • Our products are exported in large quantities to regions such as North America and the Philippines. We pride ourselves on our extensive design and production experience, along with professional and reliable after-sales service, ensuring quick delivery within 7 to 35 days.

UL Listed 1500Kva Three Phase Pad Mounted Transformer 34.5KV To 480Y/277V Power Distribution Transformer 7









Specification



Rated Power
(KVA)		 High Voltage
(KV)		 Low Voltage
(V)		 No-load Loss
(W)		 On-load Loss
(W)		 Height
(mm)		 Depth
(mm)		 Width
(mm)		 Weight
(kg)		 Weight
(Lbs)
75KVA 34.5KV
4.160KV
12.47KV
13.2KV
13.8KV
24940GrdY/14400
1247Grdy/7200
4160GrdY/2400
or others		 277V
347V
480V
600V
120/240V
208GrdY/120
415GrdY/240
480GrdY/277
600Y/347		 180 1250 1430 910 1930 645 1422
150KVA 280 2200 1530 980 1510 989 2180
300KVA 480 3650 1680 1080 1660 1415 3119
500KVA 680 5100 1790 1160 1810 1905 4200
750KVA 980 7500 2030 1300 2030 2755 6074
1000KVA 1150 10300 1854 1549 1651 3235 7132
1500KVA 1640 14500 2150 1570 2210 5835 12864
2000KVA 2160 20645 2220 1600 2380 6430 14175
2500KVA 2680 23786 2330 1650 3070 8865 19544
3000KVA 3300 30300 2460 1850 3260 11300 24912
3735KVA 4125 37875 2680 2060 4080 14400 31746





Production process



UL Listed 1500Kva Three Phase Pad Mounted Transformer 34.5KV To 480Y/277V Power Distribution Transformer 8



UL Listed 1500Kva Three Phase Pad Mounted Transformer 34.5KV To 480Y/277V Power Distribution Transformer 9
