UL/cUL Certification 100Kva Single Phase Pad mounted Transformer 12KV DOE 2016 CSA ANSI IEEE Standards Residential Transformer

Brand Name:	WINLEY
Model Number:	ZGD-100/12
MOQ:	1unit
Price:	$1000-$10000
Packaging Details:	Plywood case
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

UL/cUL, ISO

Type:

Pad Mounted

Capacity:

100Kva

Primary Voltage:

12470GrdY/7200

Secondary Voltage:

120/240V (L-N-L)

Cooling Class:

KNAN; Self-Cooled

Feed Type:

Loop Feed

Frequency:

Efficiency Standard(s):

Meets DOE 2016 Standards, Meets ANSI/IEEE Standards

Supply Ability:

1000set/month

Product Description

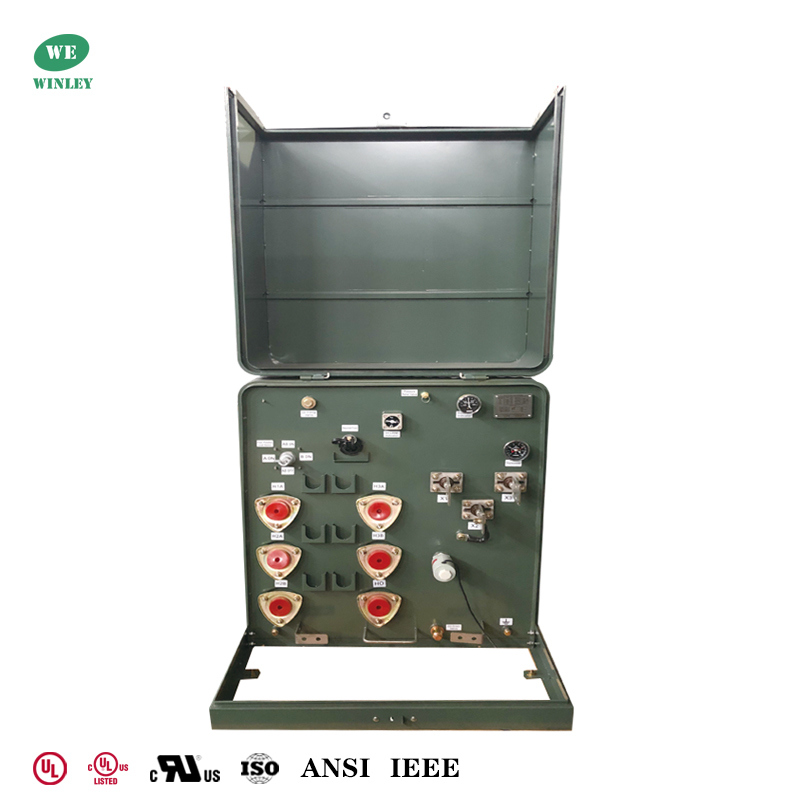

UL/cUL Certification 100Kva Single Phase Pad mounted Transformer 12KV DOE 2016 CSA ANSI IEEE Standards Residential Transformer

This 100 KVA pad-mounted transformer combines robust design with advanced functionality, tailored for efficient power distribution in urban and industrial settings. Featuring a 12000V Delta primary and 240/120V secondary voltage configuration, it seamlessly connects to 3-phase grids while delivering single-phase power, ideal for commercial and residential applications.

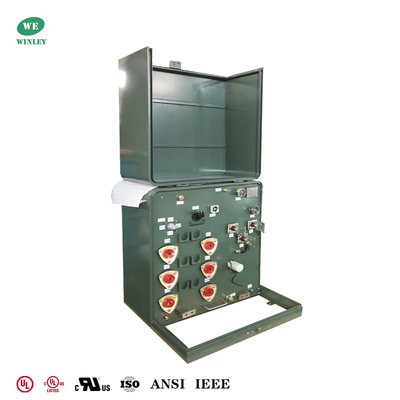

UL/cUL Certification 100Kva Single Phase Pad mounted Transformer 12KV DOE 2016 CSA ANSI IEEE Standards Residential Transformer 0

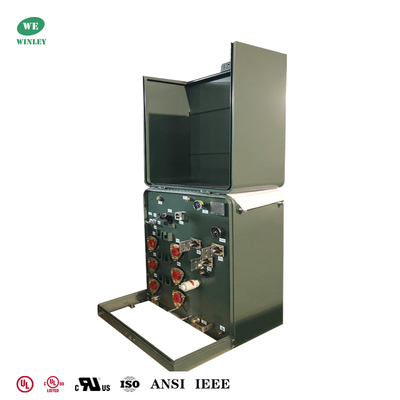

UL/cUL Certification 100Kva Single Phase Pad mounted Transformer 12KV DOE 2016 CSA ANSI IEEE Standards Residential Transformer 1

UL/cUL Certification 100Kva Single Phase Pad mounted Transformer 12KV DOE 2016 CSA ANSI IEEE Standards Residential Transformer 2

The single-phase pad-mounted transformers manufactured by WINLEY not only fully comply with but also exceed ANSI, DOE, IEEE, and CSA standards. With UL/cUL certifications, these transformers stand out for their compact size, lightweight design, low noise operation, minimal power losses, as well as high safety and reliability. They are ideally suited for a wide range of applications, including residential communities, commercial centers, hospitals, parks, and schools.

UL/cUL Certification 100Kva Single Phase Pad mounted Transformer 12KV DOE 2016 CSA ANSI IEEE Standards Residential Transformer 3

Main data

Transformer Type	Pad Mounted, Compartmental
Transformer Configuration	Liquid Filled Pad Mounted
Transformer Feed Type	Loop Feed
Phase	Single Phase (Connects to 3-Phase electrical grid)
Capacity	100 KVA
Vector Group	II6
Primary Voltage	12000V
Secondary Voltage	120/240 (L-N-L)
Frequency	60 Hz
Temperature Rise	65°C
Insulation Rating	Class E Insulation - 120°C, 248°F
Cooling Class	ONAN; Self-Cooled
Efficiency Standard(s)	Meets DOE 2016 Standards, Meets CSA Standards Meets ANSI/IEEE Standards
Winding Material	Copper
Ambient Temperature Rating	40°C
Ambient Operating Temperature Range	-40°C to +40°C (-50°F to +104°F)
Sound Level	51 dBA
Efficiency	99.00%
No Load Loss (in watts)*	+/- 270W
Load Loss (in watts)*	+/- 1100W

Technical drawings

Built with copper windings, biodegradable natural vegetable oil ester insulating fluid , front-access 5-position tap changer, bayonet fused primary protection with isolation links, and a high-voltage elbow surge arrestor. Robust terminations, pressure-relief device, analog gauges, and a quiet 51 dBA sound level make it ideal for reliable, eco-friendly distribution use.

UL/cUL Certification 100Kva Single Phase Pad mounted Transformer 12KV DOE 2016 CSA ANSI IEEE Standards Residential Transformer 4

Ratings

Meets/Exceeds DOE 2016 Efficiency Ratings
Meets/Exceeds CSA Efficiency Ratings
Complies with ANSI / IEEE C57.12.00
Complies with ANSI / IEEE C57.12.21
Complies with ANSI / IEEE C57.12.25
Complies with ANSI / IEEE C57 12.28
Complies with ANSI / IEEE C57 12.29
Complies with ANSI / IEEE C57 12.35
Complies with ANSI / IEEE C57 12.38
Complies with ANSI / IEEE C57.12.70
Complies with ANSI / IEEE C57.12.110
Complies with ANSI / IEEE C57.12.131
Complies with ANSI / IEEE C62.11
Complies with ANSI / IEEE C62.22
Complies with ANSI / IEEE 386
Complies with ANSI / IEEE C2
Complies with ANSI / IEEE C37.47
Complies with ANSI Z535.4
Complies with ASTM D3487
Complies with ASTM D6871
Complies with NEMA 260-1996
Complies with 10 CFR Part 431
Complies with CSA C2.1-06
Complies with CSA C50
Complies with CSA C88
Complies with CSA C88.1
Complies with CSA C88-16
Complies with CSA C227.3
Complies with CSA C802.1
Complies with CSA C802.2
Complies with CSA C802.3

Specification

Single phase Pad mounted Transformer Specification
Rating	High voltage(kV)	No Load Loss	On load Loss	Height	Depth	Width	Oil Weight(kg)	Total Weight(kg)
(kVA)	High voltage(kV)	No Load Loss	On load Loss	(mm)	(mm)	(mm)	Oil Weight(kg)	Total Weight(kg)
15 kVA	34.5/19.92 13.8/8 13.2/7.6 12.47/7.2 or others	50	195	840	740	610	45	294
25 kVA		80	290	840	740	610	68	362
37.5 kVA		106	360	840	760	610	75	476
50 kVA		135	500	840	810	610	93	553
75 kVA		190	650	840	860	610	132	672
100 kVA		280	1010	910	1200	965	230	714
167 kVA		435	1530	1000	1200	965	265	913
250 kVA		550	2230	1250	1300	1430	325	1106

Production process

UL/cUL Certification 100Kva Single Phase Pad mounted Transformer 12KV DOE 2016 CSA ANSI IEEE Standards Residential Transformer 5

UL/cUL Certification 100Kva Single Phase Pad mounted Transformer 12KV DOE 2016 CSA ANSI IEEE Standards Residential Transformer 6

FAQ

1. Q: Can I have a sample order?

A: Yes, we welcome sample order to test and check quality.

2. Q: What is the lead time?

A: Mass production time 15-25 days.

3. Q: How long is the warranty?

A: 24 monthes from B/L. If there are any accessory problems,just provide the photos of damaged accessory,then we will provide free service. According to the number of products,we will provide easily damaged accessories for free. we also can provide technical support if you need.

4. Q: Is OEM/ODM available?

A: Yes,it is! We are manufacturer with our own R&D team, we can customize products according to customer's drawing or requirements.

Customized services:

a. Customized color and special function.

b. Customized box.

c. Print customer's logo.

d. Your other ideas about product, we can help you design and put them into production. The above customized services must be confirmed before production.

5. Q: How to control the products quality?

A: Our company owns the core technology ,all kinds of products hold CE certificate. We have professional engineers. Workers are strictly required to make products according to the drawings. Each process has technical instructors.The QC supervisors will regularly inspect the production. We will do products performance tests during production, and comprehensive quality tests when the products is completed.
