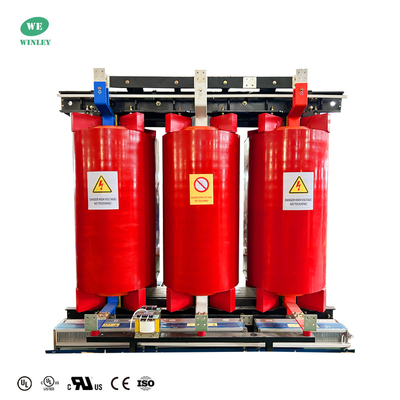

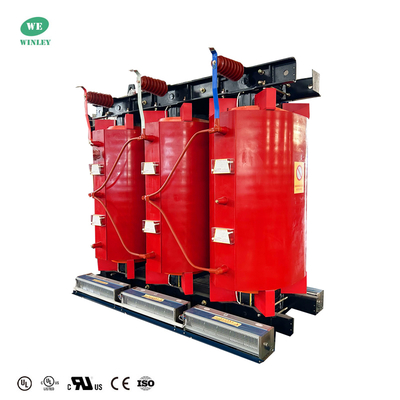

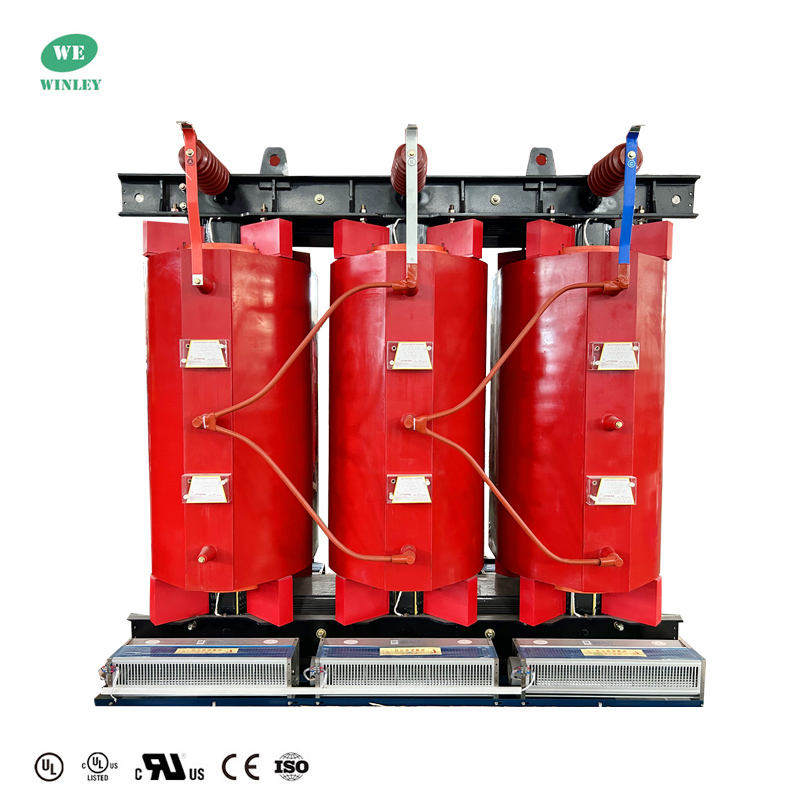

5000 Kva 2500kva Dry Type Epoxy Cast Electrical Distribution Transformers Stepdown Double Split Transformer 11kv To 415v 415v

A compact, high-performance dry-type cast-resin three‑phase transformer rated 5000/2500/2500 kVA, designed for continuous indoor operation with 11 kV primary (Delta) to a distinctive dual low-voltage (415/415 V Wye) configuration that enables flexible load distribution and redundancy;

Product Photos

Main data

Product Features

it features AN/AF cooling with integrated fans and temperature sensors, aluminum windings on a silicon‑steel core with an electrostatic shield, and an off‑circuit tap changer for stable voltage regulation. Engineered for low losses and low harmonic distortion (THDi < 3%), F‑class insulation and controlled temperature rise ensure robust thermal performance, and compliance with AS60076/AS3000 standards guarantees reliable, efficient power distribution in demanding installations.

Performance Characteristic

1)The iron core is made of high-quality silicon steelsheet.The surface is coated with anti-corrosionand good heat dissipation to ensure the transformer's low loss and corrosion resistance.
2)The high voltage winding has a continuous drop downdisc with a strip conductor(alumi num or copper)anddouble layer insula- tion.Windings are cast undervacuum with epoxy resin.
3)The low-voltage winding is made of aluminum orcopper foil and wound with insulating foil pre-im-pregnated with epoxy resin.The coil is cured in anoven to form a very compact winding.
4)The encapsulation process is a key stage withinthe manufacturing process Encapsulation is car-ried out under the most rigorous conditions inorder to ensure optimum insulating and mechani-cal characteristics.
5)In the vacuum casting chamber,the resin is pouredinto the mold to cure and form a high strength FRPbody structure.

Production process

Why choose us

• WINLEY ELECTRIC's three-phase epoxy resin dry-type transformers are available in three grades: 10KV/20KV/35KV, in compliance with IEC726, GB/T10228-1997 standards, and have the characteristics of low loss, compact structure, low noise, moisture resistance, high mechanical strength, flame retardant, and strong overload capacity.
• We can produce cast resin transformers within 10MVA and 35KV. The factory has advanced vacuum casting equipment and molds of various capacity specifications, which can meet the different needs of users.
• WINLEY's cast coil transformers provide reliable, environmentally friendly and cost-effective solutions for your power needs.

FAQ

1. Q: Can I have a sample order?

A: Yes, we welcome sample order to test and check quality.

2. Q: What is the lead time?

A: Mass production time 15-25 days.

3. Q: How long is the warranty?

A: 24 monthes from B/L. If there are any accessory problems,just provide the photos of damaged accessory,then we will provide free service. According to the number of products,we will provide easily damaged accessories for free. we also can provide technical support if you need.

4. Q: Is OEM/ODM available?

A: Yes,it is! We are manufacturer with our own R&D team, we can customize products according to customer's drawing or requirements.

Customized services:

a. Customized color and special function.

b. Customized box.

c. Print customer's logo.

d. Your other ideas about product, we can help you design and put them into production. The above customized services must be confirmed before production.

5. Q: How to control the products quality?

A: Our company owns the core technology ,all kinds of products hold CE certificate. We have professional engineers. Workers are strictly required to make products according to the drawings. Each process has technical instructors.The QC supervisors will regularly inspect the production. We will do products performance tests during production, and comprehensive quality tests when the products is completed.
