Three Phase Pad Mounted Transformer

UL Listed 600Kva 3 Phase Pad Mounted Transformer Oil-Immersed 34.5KV To 480V Efficient Power Distribution Transformer

All Category

Three Phase Isolation Transformer

Three Phase Pad Mounted Transformer

Single Phase Pad Mounted Transformer

Industrial Control Transformer

Single Phase Control Transformer

Toroidal Isolation Transformer

Three Phase Dry Type Transformer

Three Phase Reactor

Mr. Steven

steven@winley-electric.com

86-18650108051

Contact Now

UL Listed 600Kva 3 Phase Pad Mounted Transformer Oil-Immersed 34.5KV To 480V Efficient Power Distribution Transformer

Brand Name:	WINLEY
Model Number:	ZGS-600/34.5
MOQ:	1unit
Price:	$5000-$150000
Packaging Details:	Plywood case
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

UL/cUL,CE,ISO

Type:

Pad Mounted Transformer

Rated Capacity:

600kva

Feed Type:

Loop Feed

Primary Voltage:

34500V

Secondary Voltage:

480Y/277

Vector Group:

Winding Material:

Aluminum

Standard:

ASNI/IEEE C57.12.34

Supply Ability:

1000set/month

Product Description

UL Listed 600Kva 3 Phase Pad Mounted Transformer Oil-Immersed 34.5KV To 480V Efficient Power Distribution Transformer

This 600 kVA three-phase pad-mounted transformer (radial feed) has a 34500V primary and 480Y/277V secondary . It features off-circuit tapping , ONAN cooling, 60Hz operation, Dyn1 vector group, Class A insulation (105℃), and 65K temperature rise. it suits indoor/outdoor use, meeting ANSI/IEEE C57.12.34.

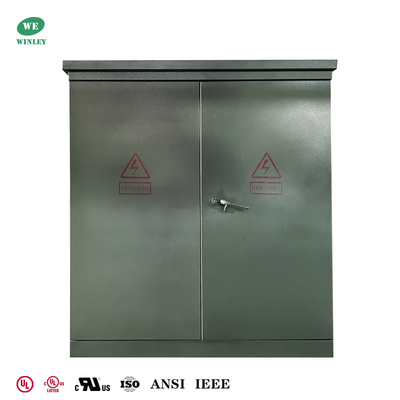

UL Listed 600Kva 3 Phase Pad Mounted Transformer Oil-Immersed 34.5KV To 480V Efficient Power Distribution Transformer 0

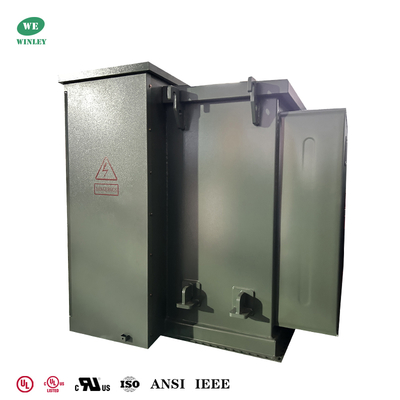

UL Listed 600Kva 3 Phase Pad Mounted Transformer Oil-Immersed 34.5KV To 480V Efficient Power Distribution Transformer 1

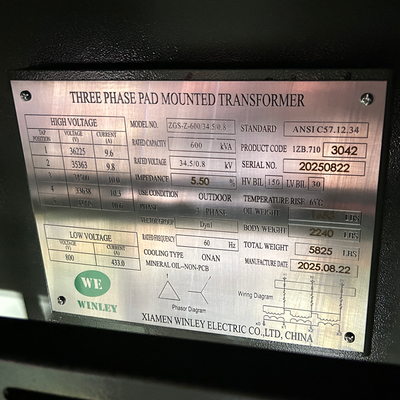

Main data

No.	Particulars	Unit	Specification
1	Type	~	pad mounted,radial feed
2	Rated capacity	kVA	600
3	No. of Phase	~	3
4	Primary voltage	V	34500
5	Primary termination	~	35kV class, BIL150kV, 200A well&insert
6	Secondary voltage	V	480Y/277
7	Secondary connection	~	4-hole spade
8	Tapping type	~	off-circuit tapping
9	Tapping range	%	±2*2.5%
10	Cooling method	~	ONAN
11	Rated frequency	Hz	60
12	Vector group	~	Dyn1
13	Insulation class	~	A (105℃)
14	Temperature rise	K	65
15	Winding material	~	Aluminum
16	Core material	~	silicon steel
17	Cooling material	~	Mineral oil
18	Housing material	~	coated steel (Munsell bell green)
19	Service condition	~	indoor or outdoor
20	Sea level	M	≤1000
21	Standard	~	ASNI/IEEE C57.12.34

Technical drawings

UL Listed 600Kva 3 Phase Pad Mounted Transformer Oil-Immersed 34.5KV To 480V Efficient Power Distribution Transformer 2

Why choose WINLEY?

WINLEY offers a full range of three-phase pad-mounted transformers , meeting or exceeding DOE 2016, IEEE/ANSI, CSA, IEC, NEMA standards.
Products hold UL/cUL certifications UL partner authorization available per request.
Widely exported to North America, South America, the Philippines, etc., with rich experience, reliable after-sales, and fast delivery (7-35 days)

UL Listed 600Kva 3 Phase Pad Mounted Transformer Oil-Immersed 34.5KV To 480V Efficient Power Distribution Transformer 3

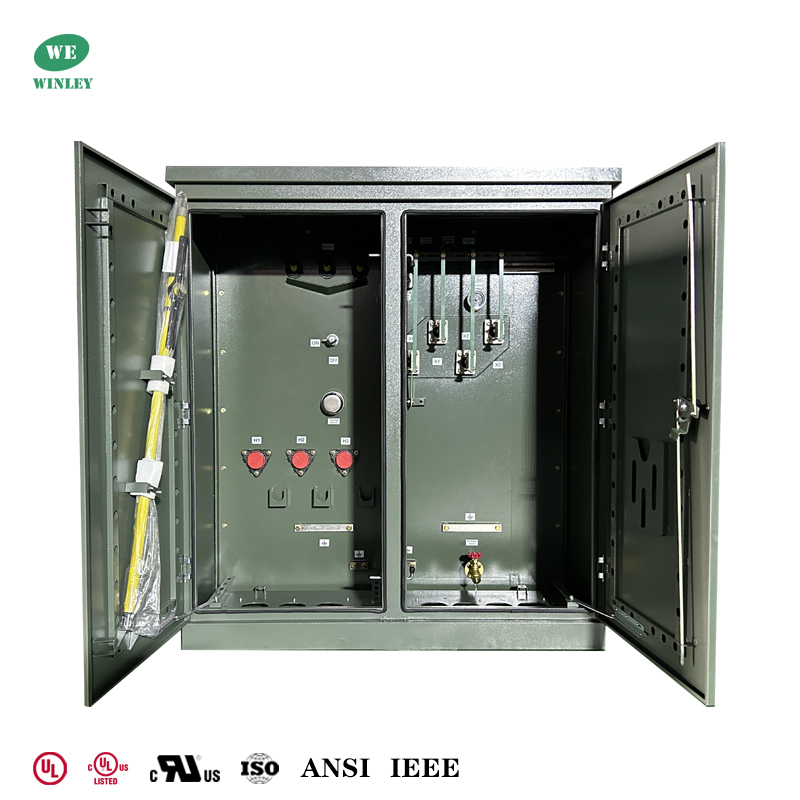

Product Structure

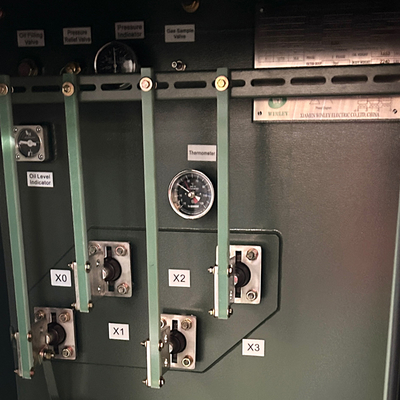

34500V Delta primary (35kV class, 150kV BIL, 200A dead-front well & insert termination); 480Y/277V Wye-N secondary (live-front 4-hole spade connection).

UL Listed 600Kva 3 Phase Pad Mounted Transformer Oil-Immersed 34.5KV To 480V Efficient Power Distribution Transformer 4

Off-circuit tapping (±2*2.5%), ONAN cooling, 60Hz frequency, Dyn1 vector group, Class A insulation (105℃), 65K temperature rise. Aluminum windings, silicon steel core, mineral oil cooling.Housing & Accessories: Coated steel housing. Includes 2-position break switch, drain with sample valve, thermometer, liquid level/pressure vacuum gauges, pressure relief valve; HV side has bayonet fuse, current limiting fuse, and arresters.

UL Listed 600Kva 3 Phase Pad Mounted Transformer Oil-Immersed 34.5KV To 480V Efficient Power Distribution Transformer 5

Specification

Rated Power (KVA)	High Voltage (KV)	Low Voltage (V)	No-load Loss (W)	On-load Loss (W)	Height (mm)	Depth (mm)	Width (mm)	Weight (kg)	Weight (Lbs)
75KVA	34.5KV 4.160KV 12.47KV 13.2KV 13.8KV 24940GrdY/14400 1247Grdy/7200 4160GrdY/2400 or others	277V 347V 480V 600V 120/240V 208GrdY/120 415GrdY/240 480GrdY/277 600Y/347	180	1250	1430	910	1930	645	1422
150KVA			280	2200	1530	980	1510	989	2180
300KVA			480	3650	1680	1080	1660	1415	3119
500KVA			680	5100	1790	1160	1810	1905	4200
750KVA			980	7500	2030	1300	2030	2755	6074
1000KVA			1150	10300	1854	1549	1651	3235	7132
1500KVA			1640	14500	2150	1570	2210	5835	12864
2000KVA			2160	20645	2220	1600	2380	6430	14175
2500KVA			2680	23786	2330	1650	3070	8865	19544
3000KVA			3300	30300	2460	1850	3260	11300	24912
3735KVA			4125	37875	2680	2060	4080	14400	31746

Production process

UL Listed 600Kva 3 Phase Pad Mounted Transformer Oil-Immersed 34.5KV To 480V Efficient Power Distribution Transformer 6

UL Listed 600Kva 3 Phase Pad Mounted Transformer Oil-Immersed 34.5KV To 480V Efficient Power Distribution Transformer 7

UL Listed 600Kva 3 Phase Pad Mounted Transformer Oil-Immersed 34.5KV To 480V Efficient Power Distribution Transformer 8

FAQ

1. Q: Can I have a sample order?

A: Yes, we welcome sample order to test and check quality.

2. Q: What is the lead time?

A: Mass production time 15-25 days.

3. Q: How long is the warranty?

A: 24 monthes from B/L. If there are any accessory problems,just provide the photos of damaged accessory,then we will provide free service. According to the number of products,we will provide easily damaged accessories for free. we also can provide technical support if you need.

4. Q: Is OEM/ODM available?

A: Yes,it is! We are manufacturer with our own R&D team, we can customize products according to customer's drawing or requirements.

Customized services:

a. Customized color and special function.

b. Customized box.

c. Print customer's logo.

d. Your other ideas about product, we can help you design and put them into production. The above customized services must be confirmed before production.

5. Q: How to control the products quality?

A: Our company owns the core technology ,all kinds of products hold CE certificate. We have professional engineers. Workers are strictly required to make products according to the drawings. Each process has technical instructors.The QC supervisors will regularly inspect the production. We will do products performance tests during production, and comprehensive quality tests when the products is completed.
