100kva 1 Phase Pad Mounted Transformer 22900V To 120V Power Distribution Transformer ANSI IEEE Meet DOE 2016 Standard

Brand Name:	WINLEY
Model Number:	ZGD-100/22.9
MOQ:	1unit
Price:	$1000-$10000
Packaging Details:	Plywood case
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

UL/cUL, ISO

Capacity:

100Kva

Primary Voltage:

22900V

Secondary Voltage:

120/240V

Cooling Class:

KNAN; Self-Cooled

Insulation Rating:

Class E Insulation - 120°C, 248°F

Frequency:

Efficiency:

99.00%

Certificate:

UL/cUL , ISO ,CE

Efficiency Standard(s):

Meets DOE 2016 Standards, Meets ANSI/IEEE Standards

Supply Ability:

1000set/month

Highlight:

100kva single phase pad mounted transformer

22900V to 120V power distribution transformer

ANSI IEEE pad mounted transformer with warranty

Product Description

100kva 1 Phase Pad Mounted Transformer 22900V To 120V Power Distribution Transformer ANSI IEEE Meet DOE 2016 Standard

The 100 kVA Single Phase Pad Mounted Transformer, designed for reliable power distribution with a 22,900 V delta primary and a 120/240 V secondary. This single-phase, liquid-filled unit uses biodegradable KNAN fluid, meeting DOE 2016 efficiency standards with a 99% efficiency rating.

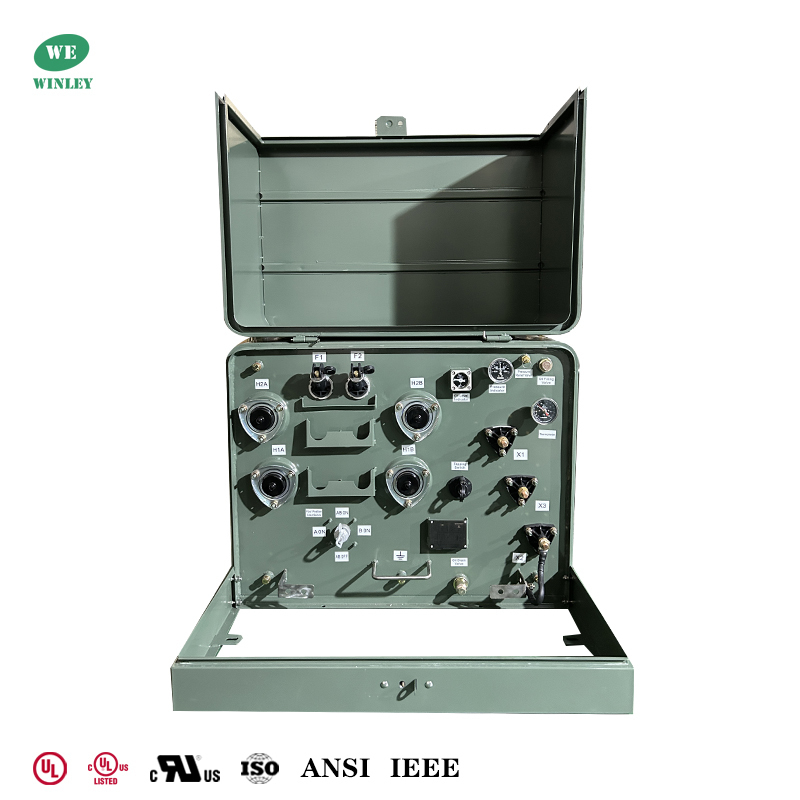

100kva 1 Phase Pad Mounted Transformer 22900V To 120V Power Distribution Transformer ANSI IEEE Meet DOE 2016 Standard 0

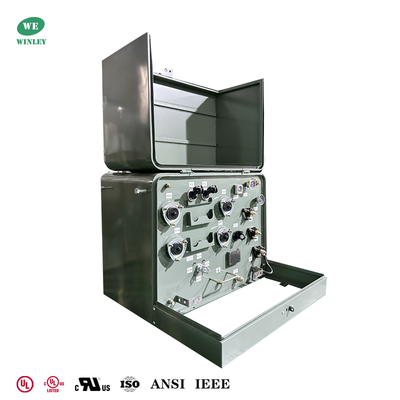

100kva 1 Phase Pad Mounted Transformer 22900V To 120V Power Distribution Transformer ANSI IEEE Meet DOE 2016 Standard 1

Main data

Transformer Type	Pad Mounted
Transformer Feed Type	Loop Feed
Phase	Single Phase
Capacity	100
Primary Voltage	22900V
Secondary Voltage	120/240 (L-N-L)
Secondary Phasor	Dual Winding Single Phase
Frequency	60 Hz
Temperature Rise	65°C
Cooling Class	KNAN; Self-Cooled
Efficiency	Meet DOE 2016 Standard
Winding Material	Copper
Ambient Temperature Rating	40°C
Sound Level	50 dBA
Elevation (Altitude)	3300ft (1000 meters) Above Sea Level
Tank Material	Coated Steel
Efficiency	99.00%
No Load Loss (in watts)*	+/- 270W
Load Loss (in watts)*	+/- 1,100W

Drawing

100kva 1 Phase Pad Mounted Transformer 22900V To 120V Power Distribution Transformer ANSI IEEE Meet DOE 2016 Standard 2

Transformer Features

22900V Delta primary (125 KV BIL) and 120/240V (L-N-L) dual-winding secondary (30 KV BIL) ensure stable medium-to-low voltage conversion, with high BIL values enhancing transient protection. The 5-position tap changer (2 up/2 down, 2.5% steps) allows precise voltage adjustment to adapt to system fluctuations.4-position load break switch and bayonet fuse enhance operational safety and protection.Auto pressure relief and fill/drain valves (with sampler) simplify maintenance. Tamper-resistant coated steel housing resists damage and corrosion, suiting outdoor use.

100kva 1 Phase Pad Mounted Transformer 22900V To 120V Power Distribution Transformer ANSI IEEE Meet DOE 2016 Standard 3

Primary 200A well bushings (4 dead-front connections) and secondary 3 live-front threaded stud terminals offer secure, reliable connections; dead-front design adds safety, while threaded studs simplify wiring.

100kva 1 Phase Pad Mounted Transformer 22900V To 120V Power Distribution Transformer ANSI IEEE Meet DOE 2016 Standard 6

Specification

Single phase Pad mounted Transformer Specification
Rating	High voltage(kV)	No Load Loss	On load Loss	Height	Depth	Width	Oil Weight(kg)	Total Weight(kg)
(kVA)	High voltage(kV)	No Load Loss	On load Loss	(mm)	(mm)	(mm)	Oil Weight(kg)	Total Weight(kg)
15 kVA	34.5/19.92 13.8/8 13.2/7.6 12.47/7.2 or others	50	195	840	740	610	45	294
25 kVA		80	290	840	740	610	68	362
37.5 kVA		106	360	840	760	610	75	476
50 kVA		135	500	840	810	610	93	553
75 kVA		190	650	840	860	610	132	672
100 kVA		280	1010	910	1200	965	230	714
167 kVA		435	1530	1000	1200	965	265	913
250 kVA		550	2230	1250	1300	1430	325	1106

Why choose us

1. WINLEY single-phase transformer has obtained UL/cUL certification, with a capacity of 10-333KVA and a voltage of up to 34.5KV
2. The products are designed according to multiple standards and meet or even exceed DOE 2016, IEEE, ANSI, CSA, IEC, NEMA and other standards.
3. The monthly delivery capacity is over 800 units, and fast delivery can be achieved within 4 weeks.

100kva 1 Phase Pad Mounted Transformer 22900V To 120V Power Distribution Transformer ANSI IEEE Meet DOE 2016 Standard 7

Production process

100kva 1 Phase Pad Mounted Transformer 22900V To 120V Power Distribution Transformer ANSI IEEE Meet DOE 2016 Standard 9

100kva 1 Phase Pad Mounted Transformer 22900V To 120V Power Distribution Transformer ANSI IEEE Meet DOE 2016 Standard 10

FAQ

1. Q: Can I have a sample order?

A: Yes, we welcome sample order to test and check quality.

2. Q: What is the lead time?

A: Mass production time 15-25 days.

3. Q: How long is the warranty?

A: 24 monthes from B/L. If there are any accessory problems,just provide the photos of damaged accessory,then we will provide free service. According to the number of products,we will provide easily damaged accessories for free. we also can provide technical support if you need.

4. Q: Is OEM/ODM available?

A: Yes,it is! We are manufacturer with our own R&D team, we can customize products according to customer's drawing or requirements.

Customized services:

a. Customized color and special function.

b. Customized box.

c. Print customer's logo.

d. Your other ideas about product, we can help you design and put them into production. The above customized services must be confirmed before production.

5. Q: How to control the products quality?

A: Our company owns the core technology ,all kinds of products hold CE certificate. We have professional engineers. Workers are strictly required to make products according to the drawings. Each process has technical instructors.The QC supervisors will regularly inspect the production. We will do products performance tests during production, and comprehensive quality tests when the products is completed.
