150kva Three Phase Dry Type Isolation Transformer Step Down 480v To 415v H-class insulation

Brand Name:	WINLEY
Model Number:	150KVA
MOQ:	1unit
Price:	$1000-$150000
Packaging Details:	Plywood case
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

UL,CE,ISO

Rated Capacity:

150KVA

Phase:

Three

Frequency:

50Hz/60Hz

Insulation Class:

Material:

Aluminum

Connection Type:

Temperature Rise:

Enclosures Protection Level:

Standard:

AS60076

Certificate:

UL,CE,ISO

Supply Ability:

1000set/month

Highlight:

150kva three phase dry type transformer

480v to 415v step down transformer

H-class insulation isolation transformer

Product Description

150kva Three Phase Dry Type Isolation Transformer Step Down 480v To 415v H-class insulation

Summarization

SG series three-coherent-type transformers are widely used in AC 50~60Hz, input, output voltage not exceedlng 500V three phase power supply in a variety of occasions.
For a variety of input and output voltage lever, Join groups, regulating the number and location of laps(typically±5%), winding capacity allocation, single-phase secondary winding is equipped with, the use of rectiffer cirouits, take shell or not, etc.

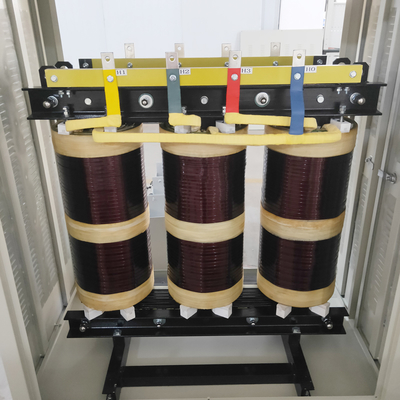

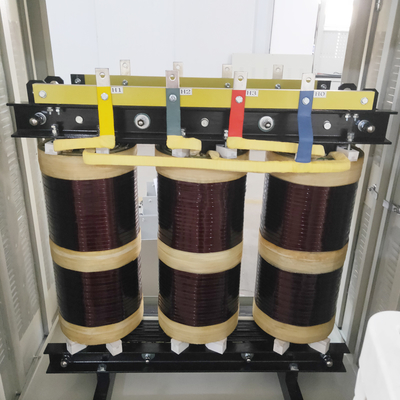

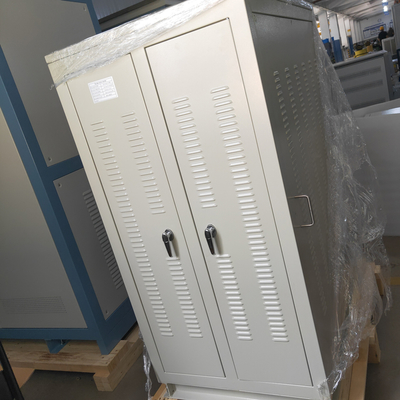

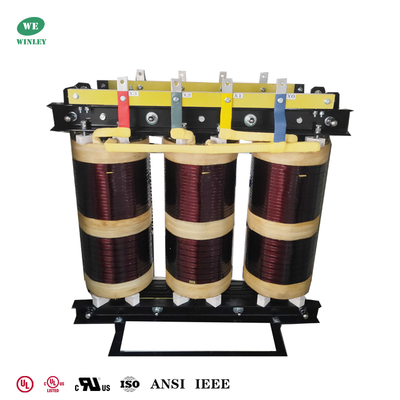

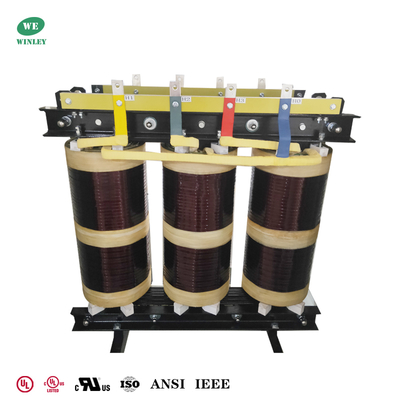

Product Photos

150kva Three Phase Dry Type Isolation Transformer Step Down 480v To 415v H-class insulation 0

150kva Three Phase Dry Type Isolation Transformer Step Down 480v To 415v H-class insulation 2

Main data

Model Number	SG-150KVA
Power	150KVA
Product name	Three Phase Transformer
Input Voltage	480vac customized
Output Voltage	415va customized
Frequency	50/60Hz
Insulation class	H
Temperature rise	<80℃
Connection Type	Yyn0
Enclosures Protection Level	IP23
Winding material	Enameled alum or copper
Advantage	Vacuum Impregnation Insulation
Cooling Method	Natural or air cooling
Certification	UL,ISO,CE
dimension	850mmx 700mmx 950mm/680kg

Technical drawings

150kva Three Phase Dry Type Isolation Transformer Step Down 480v To 415v H-class insulation 4

Specification

Rated capacity	High Voltage	Low	Connection Symbol	No-Load Loss	On-Load Loss	No Load Current	Weight	Short Circuit Impendence
(KVA)	(KV)	Voltage		(W)	(W)	(%)	(KG)	(%)
(KVA)	(KV)	(KV)
10	6 6.3 10 10.5 11	0.4	Dyn11 Yyn0	0.15	0.325	4.1	130	4
30				0.215	0.75	3.2	260
50				0.305	1.055	2.8	315
80				0.415	1.46	2.6	470
100				0.45	1.665	2.4	520
125				0.53	1.955	2.2	585
160				0.61	2.25	2.2	670
200				0.7	2.675	2	790
250				0.81	2.915	2	920
315				0.99	3.67	1.8	1085
400				1.1	4.22	1.8	1320
500				1.305	5.165	1.8	1520
630				1.46	6.31	1.6	1820	6
800				1.71	7.36	1.6	2105
1000				1.99	8.6	1.4	2550
1250				2.35	10.26	1.4	2900
1600				2.755	12.42	1.4	3490
2000				3.735	15.3	1.2	4220
2500				4.5	19.53	1.2	4955

Production process

150kva Three Phase Dry Type Isolation Transformer Step Down 480v To 415v H-class insulation 5

FAQ

1. Q: Can I have a sample order?

A: Yes, we welcome sample order to test and check quality.

2. Q: What is the lead time?

A: Mass production time 15-25 days.

3. Q: How long is the warranty?

A: 24 monthes from B/L. If there are any accessory problems,just provide the photos of damaged accessory,then we will provide free service. According to the number of products,we will provide easily damaged accessories for free. we also can provide technical support if you need.

4. Q: Is OEM/ODM available?

A: Yes,it is! We are manufacturer with our own R&D team, we can customize products according to customer's drawing or requirements.

Customized services:

a. Customized color and special function.

b. Customized box.

c. Print customer's logo.

d. Your other ideas about product, we can help you design and put them into production. The above customized services must be confirmed before production.

5. Q: How to control the products quality?

A: Our company owns the core technology ,all kinds of products hold CE certificate. We have professional engineers. Workers are strictly required to make products according to the drawings. Each process has technical instructors.The QC supervisors will regularly inspect the production. We will do products performance tests during production, and comprehensive quality tests when the products is completed.

Summarization
