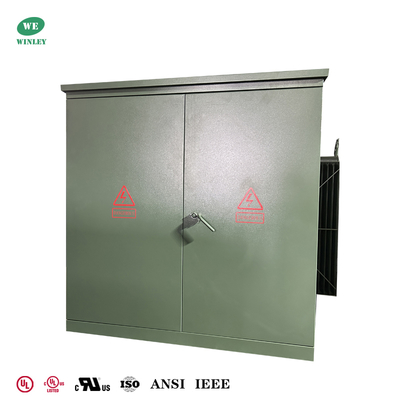

2000Kva Three Phase Pad Mounted Transformer Step-Down 12.47KV To 480V Meet DOE Efficiency Values With UL listed
Design capabilities
Main data
Transformer Configuration | Liquid Filled Pad Mount |
Transformer Feed Type | Loop Feed |
Operation | Step-Down Operation (Not Approved for Step-Up) |
Phase | Three Phase |
Capacity | 2 MVA (2000 KVA) |
Vector Group | DYN1 |
Primary Voltage | 12470V |
Secondary Voltage | 480Y/277 |
Frequency | 60 Hz |
Temperature Rise | 65°C |
Insulation Rating | Class E Insulation - 120°C, 248°F |
Cooling Class | KNAN; Self-Cooled |
Impedance | 5.75% |
Primary Connection Type | Dead Front |
Secondary Connection Type | Live Front |
Efficiency Standard(s) | Meets DOE 2016 Standards, Meets CSA Standards Meets ANSI/IEEE Standards |
K-Factor Rating (Harmonic Mitigation) | K-1 (Standard) |
Winding Material | Copper |
Ambient Temperature Rating | 50°C |
Ambient Operating Temperature Range | -50°C to +50°C (-58°F to +122°F) |
Efficiency % | 99.40% |
No Load Loss (in watts) | +/- 2,090W |
Full Load Loss (in watts) at 100% | +/- 18,300W |
Technical drawings
Standard Features
Optional accessories
Application
Specification
Rated Power (KVA) |
High Voltage (KV) |
Low Voltage (V) |
No-load Loss (W) |
On-load Loss (W) |
Height (mm) |
Depth (mm) |
Width (mm) |
Weight (kg) |
Weight (Lbs) |
75KVA | 34.5KV 4.160KV 12.47KV 13.2KV 13.8KV 24940GrdY/14400 1247Grdy/7200 4160GrdY/2400 or others |
277V 347V 480V 600V 120/240V 208GrdY/120 415GrdY/240 480GrdY/277 600Y/347 |
180 | 1250 | 1430 | 910 | 1930 | 645 | 1422 |
150KVA | 280 | 2200 | 1530 | 980 | 1510 | 989 | 2180 | ||
300KVA | 480 | 3650 | 1680 | 1080 | 1660 | 1415 | 3119 | ||
500KVA | 680 | 5100 | 1790 | 1160 | 1810 | 1905 | 4200 | ||
750KVA | 980 | 7500 | 2030 | 1300 | 2030 | 2755 | 6074 | ||
1000KVA | 1150 | 10300 | 1854 | 1549 | 1651 | 3235 | 7132 | ||
1500KVA | 1640 | 14500 | 2150 | 1570 | 2210 | 5835 | 12864 | ||
2000KVA | 2160 | 20645 | 2220 | 1600 | 2380 | 6430 | 14175 | ||
2500KVA | 2680 | 23786 | 2330 | 1650 | 3070 | 8865 | 19544 | ||
3000KVA | 3300 | 30300 | 2460 | 1850 | 3260 | 11300 | 24912 | ||
3735KVA | 4125 | 37875 | 2680 | 2060 | 4080 | 14400 | 31746 |
