Three Phase Pad Mounted Transformer
>
UL Certified 3 Phase Pad Mounted Transformer Oil Immersed 500Kva 34.5KV to 208Y Dead Front Loop Feed
Detail Information
Place of Origin:
CHINA
Certification:
UL/cUL,CE,ISO
Type:
Pad Mounted,Radial Feed
Capacity:
500KVA
Primary Voltage:
34500GrdY/19920
Secondary Voltage:
208Y/120
Frequency:
60 Hz
Insulation Rating:
Class E Insulation
Standard:
DOE 2016, CSA , ANSI，IEEE
UL/cUL Certification:
UL-US-2431836-0, UL-CA-2423202-0
Delivery Time:
30days
Supply Ability:
1000set/month
Highlight:

3 Phase Pad Mounted Transformer

,

UL Certified Pad Mounted Transformer

,

500Kva Pad Mounted Transformer

Product Description

UL Certified 3 Phase Pad Mounted Transformer Oil Immersed 500Kva 34.5KV to 208Y Dead Front Loop Feed





Summarization



The three phase pad mounted transformer immerses the load switch and fuse on the high voltage side of the transformer with the core and windings of the transformer in the same oil tank, has the advantages of advanced structure, reliable performance, energy saving and consumption reduction, flexible use, strong adaptability, and economical advantages.

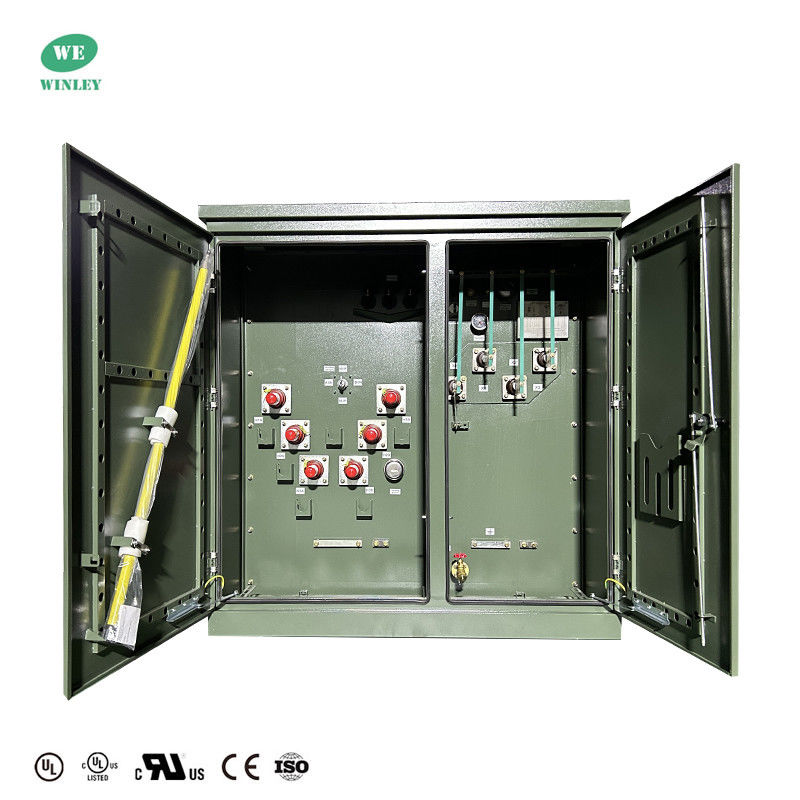

UL Certified 3 Phase Pad Mounted Transformer Oil Immersed 500Kva 34.5KV to 208Y Dead Front Loop Feed 0

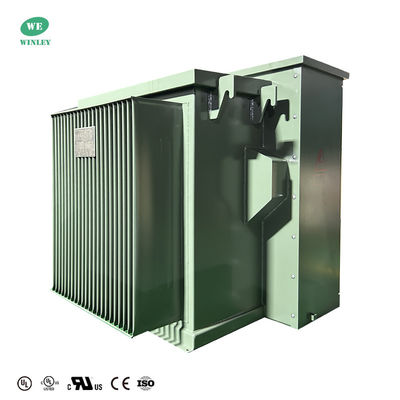

UL Certified 3 Phase Pad Mounted Transformer Oil Immersed 500Kva 34.5KV to 208Y Dead Front Loop Feed 1



Why choose us



  1. WINLEY produces a full range of three phase pad mounted transformers with a capacity of 45kva-5500KVA and a voltage of up to 34.5KV. The products meet or even exceed the standards of DOE 2016, IEEE/ANSI, CSA, IEC, NEMA, etc.
  2. The three phase pad mounted transformer produced by WINLEY has obtained UL/cUL certification (Certificate Number: UL-US-2431836-0, UL-CA-2423202-0), and can apply for UL (partner authorization) according to customer requirements.
  3. Our products are exported to North America, South America, the Philippines and other places in large quantities. We have rich experience in design and production, professional and reliable after-sales service, and can deliver goods quickly within 7-35 days.



Main data





Phase Three Phase
Capacity 500 KVA
Vector Group YnYn0
Primary Voltage 34500GrdY/19920
Primary Voltage Class 35 kV Class
Primary BIL 150 KV
Secondary Voltage 208Y/120
Frequency 60 Hz
Temperature Rise 65°C
Insulation Rating Class E Insulation - 120°C, 248°F
Cooling Class KNAN; Self-Cooled
Winding Material Copper
Enclosure Rating NEMA 3R Weatherproof Wiring Cabinet, Sealed Tank
Efficiency % 99.10%
No Load Loss (in watts) +/- 695W
Full Load Loss (in watts) at 100% +/- 4,950W





Standard Features



• 60 Hz operation.
• 65°C average winding rise.
• Radial & loop feed arrangements.
• Dead and live front type of HV terminals.
• HV BIL 45 – 150 kV (Dead Front) 200 kV (Live Front).
• LV BIL 30 – 60 kV.
• Three-point latching of low-voltage door.
• High-voltage door, which can be opened only after
the low-voltage door is opened.
• Rigid steel partition.
• Transformer tank welded from cover to base.
• Permanent nameplate.
• One-inch NPT pipe cap filling provision.
• ANSI tank ground pads.
• One-inch drain valve and sampler.
• Automatic pressure-relief valve (35 SCFM).
• Tap changer with (2) 2.5% full capacity taps aboveand below nominal.
• One 10”x18” (or 14”x25”) hand hole in transformertank cover.
• Painted olive-green color (Munsell 7GY 3.29/1.5).
• Designed, manufactured and tested in accordancewith the latest ANSI standards

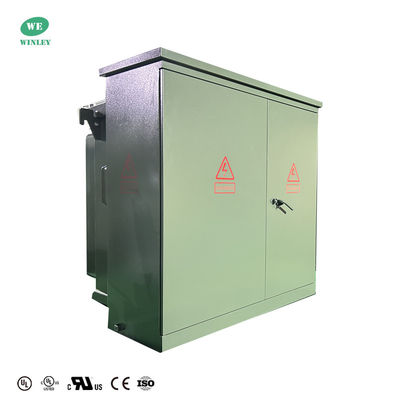

UL Certified 3 Phase Pad Mounted Transformer Oil Immersed 500Kva 34.5KV to 208Y Dead Front Loop Feed 2



Performance



  1. Safe and Reliable: They use efficient insulation protection and heat dissipation equipment, with a well-designed cable cabinet structure ensuring safety and reliability. They have a strong overload capacity, allowing for 2 times overload for 2 hours and 1.6 times overload for 7 hours without affecting their lifespan.
  2. Convenient Connections: The use of elbow plugs makes it easy to connect high-voltage incoming cables, allowing for plug-in and plug-out operations under power.
  3. Strong Defense Capability: They can effectively resist instantaneous voltage peaks, protecting power equipment from damage. They also feature double fuse protection:Insertion Fuse (BAY-o-NET): A dual-sensitive fuse (temperature and current) protecting against short-circuit faults on the secondary side.Backup Current Limiting Protection Fuse (ELSP): Protects against faults inside the transformer and the high-voltage side.
  4. Flexible Power Supply: They can be either terminal type or ring network type, allowing one transformer to supply power to another, enhancing power supply distance and reliability.
  5. Energy Saving and Environmental Protection: Designed with energy efficiency and environmental protection in mind.





Technical drawings



UL Certified 3 Phase Pad Mounted Transformer Oil Immersed 500Kva 34.5KV to 208Y Dead Front Loop Feed 3



Specification



Rated Power
(KVA)		 High Voltage
(KV)		 Low Voltage
(V)		 No-load Loss
(W)		 On-load Loss
(W)		 Height
(mm)		 Depth
(mm)		 Width
(mm)		 Weight
(kg)		 Weight
(Lbs)
75KVA 34.5KV
4.160KV
12.47KV
13.2KV
13.8KV
24940GrdY/14400
1247Grdy/7200
4160GrdY/2400
or others		 277V
347V
480V
600V
120/240V
208GrdY/120
415GrdY/240
480GrdY/277
600Y/347		 180 1250 1430 910 1930 645 1422
150KVA 280 2200 1530 980 1510 989 2180
300KVA 480 3650 1680 1080 1660 1415 3119
500KVA 680 5100 1790 1160 1810 1905 4200
750KVA 980 7500 2030 1300 2030 2755 6074
1000KVA 1150 10300 1854 1549 1651 3235 7132
1500KVA 1640 14500 2150 1570 2210 5835 12864
2000KVA 2160 20645 2220 1600 2380 6430 14175
2500KVA 2680 23786 2330 1650 3070 8865 19544
3000KVA 3300 30300 2460 1850 3260 11300 24912
3735KVA 4125 37875 2680 2060 4080 14400 31746





Factory Tests



  • Winding Resistance Test
  • Insulation Resistance Test
  • Voltage Ratio Error Test
  • Short-circuit Impedance Test
  • No-load Loss (Wattage) Test
  • Load Loss (Wattage) Test
  • Induced Voltage Withstand Test
  • Separate Source Voltage Withstand Test
  • Pressure Integrity Test Test



Production process



UL Certified 3 Phase Pad Mounted Transformer Oil Immersed 500Kva 34.5KV to 208Y Dead Front Loop Feed 4

UL Certified 3 Phase Pad Mounted Transformer Oil Immersed 500Kva 34.5KV to 208Y Dead Front Loop Feed 5

UL Certified 3 Phase Pad Mounted Transformer Oil Immersed 500Kva 34.5KV to 208Y Dead Front Loop Feed 6



FAQ



1. Q: Can I have a sample order?

A: Yes, we welcome sample order to test and check quality.

2. Q: What is the lead time?

A: Mass production time 15-25 days.

3. Q: How long is the warranty?

A: 24 monthes from B/L. If there are any accessory problems,just provide the photos of damaged accessory,then we will provide free service. According to the number of products,we will provide easily damaged accessories for free. we also can provide technical support if you need.

4. Q: Is OEM/ODM available?

A: Yes,it is! We are manufacturer with our own R&D team, we can customize products according to customer's drawing or requirements.

Customized services:

a. Customized color and special function.

b. Customized box.

c. Print customer's logo.

d. Your other ideas about product, we can help you design and put them into production. The above customized services must be confirmed before production.

5. Q: How to control the products quality?

A: Our company owns the core technology ,all kinds of products hold CE certificate. We have professional engineers. Workers are strictly required to make products according to the drawings. Each process has technical instructors.The QC supervisors will regularly inspect the production. We will do products performance tests during production, and comprehensive quality tests when the products is completed.
