3 Phase Pad Mounted Transformer Oil Immersed Distribution 500Kva 12870V ANSI IEEE Standards

Brand Name:	WINLEY
Model Number:	ZGS-500/12.87
MOQ:	1unit
Price:	$5000-$150000
Packaging Details:	Plywood case
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

UL/cUL,CE,ISO

Type:

Pad Mounted,Radial Feed

Capacity:

500KVA

Primary Voltage:

12870V

Secondary Voltage:

480Y/277

Tapping Range:

14400, 13800, 13200, 12870, 12470, 12000, 11700

Material:

Aluminum/Copper

Vector Group:

UL/cUL Certification:

UL-US-2431836-0, UL-CA-2423202-0

Supply Ability:

1000set/month

Highlight:

12870V Pad Mounted Transformer

ANSI IEEE Pad Mounted Transformer

500Kva Pad Mounted Transformer

Product Description

3 Phase Pad Mounted Transformer Oil Immersed Distribution 500Kva 12870V ANSI IEEE Standards

Why choose us

WINLEY produces a full range of three phase pad mounted transformers with a capacity of 45kva-5500KVA and a voltage of up to 34.5KV. The products meet or even exceed the standards of DOE 2016, IEEE/ANSI, CSA, IEC, NEMA, etc.
The three phase pad mounted transformer produced by WINLEY has obtained UL/cUL certification (Certificate Number: UL-US-2431836-0, UL-CA-2423202-0), and can apply for UL (partner authorization) according to customer requirements.
Our products are exported to North America, South America, the Philippines and other places in large quantities. We have rich experience in design and production, professional and reliable after-sales service, and can deliver goods quickly within 7-35 days.

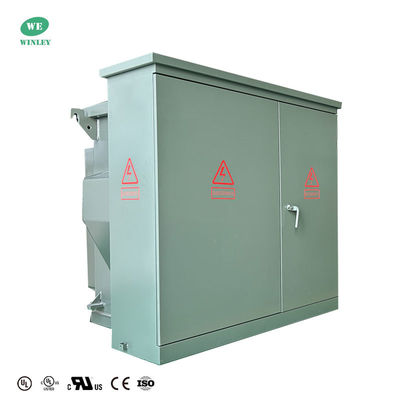

3 Phase Pad Mounted Transformer Oil Immersed Distribution 500Kva 12870V ANSI IEEE Standards 0

Product Photos

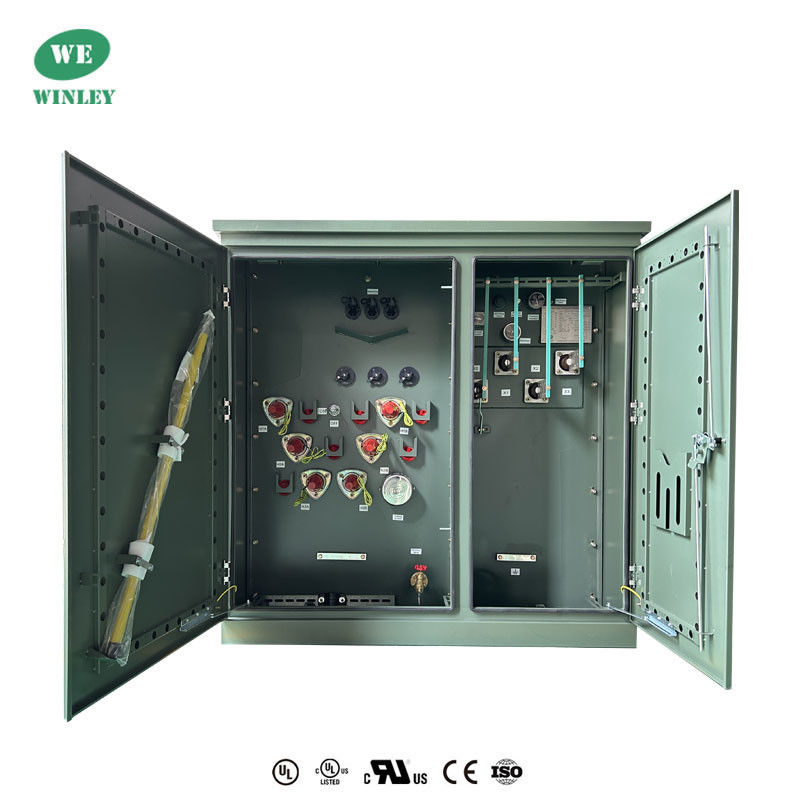

Engineered for radial feed systems, this transformer converts 12,870V delta primary to 208Y/120V wye-secondary, with dead front primary terminations for safe maintenance. Off-circuit tapping across 7 voltage settings adapts to grid needs. Built with aluminum windings and silicon steel core in a coated steel housing, it delivers durable performance for commercial/industrial use, compliant with ANSI/IEEE C57.12.34 for indoor/outdoor installations.

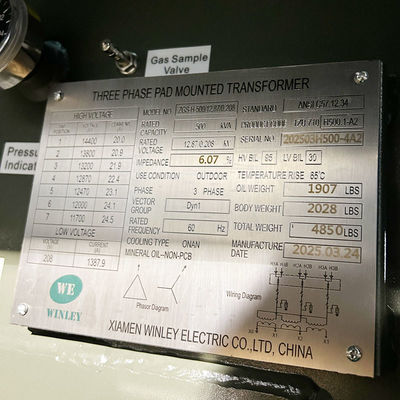

3 Phase Pad Mounted Transformer Oil Immersed Distribution 500Kva 12870V ANSI IEEE Standards 1

3 Phase Pad Mounted Transformer Oil Immersed Distribution 500Kva 12870V ANSI IEEE Standards 2

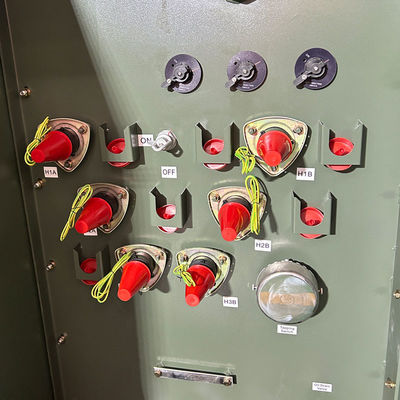

3 Phase Pad Mounted Transformer Oil Immersed Distribution 500Kva 12870V ANSI IEEE Standards 3

Main data

3 Phase Pad Mounted Transformer specification data
No.	Particulars	Unit	Specification	Remark
1	Type	~	pad mounted,radial feed
2	Rated capacity	kVA	500
3	No. of Phase	~	3
4	Primary voltage	V	12870	delta
5	Primary termination	~	15kV class, BIL95kV, 200A well&insert	dead front
6	Secondary voltage	V	480Y/277	Wye-N

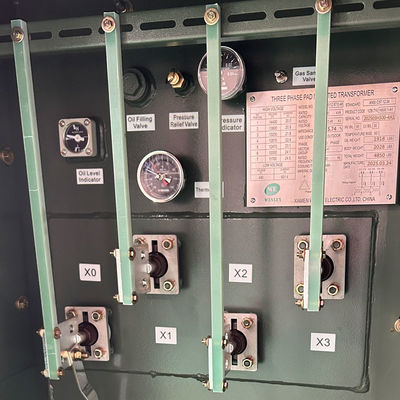

7	Secondary connection	~	4-hole spade
7	Tapping type	~	off-circuit tapping
8	Tapping range	%	14400, 13800, 13200, 12870, 12470, 12000, 11700
9	Cooling method	~	ONAN
10	Rated frequency	Hz	60
11	Vector group	~	Dyn1
12	Insulation class	~	A (105℃)
13	Temperature rise	K	65
14	Off-load loss	W	750	with 10% tolerance
15	On-load loss (85℃)	W	5800	with 10% tolerance
16	Impedance	%	5.5~6.5
17	Winding material	~	Aluminum or copper
18	Core material	~	silicon steel
19	Cooling material	~	Mineral oil

Technical drawings

Specification

Rated Power (KVA)	High Voltage (KV)	Low Voltage (V)	No-load Loss (W)	On-load Loss (W)	Height (mm)	Depth (mm)	Width (mm)	Weight (kg)	Weight (Lbs)
75KVA	34.5KV 4.160KV 12.47KV 13.2KV 13.8KV 24940GrdY/14400 1247Grdy/7200 4160GrdY/2400 or others	277V 347V 480V 600V 120/240V 208GrdY/120 415GrdY/240 480GrdY/277 600Y/347	180	1250	1430	910	1930	645	1422
150KVA			280	2200	1530	980	1510	989	2180
300KVA			480	3650	1680	1080	1660	1415	3119
500KVA			680	5100	1790	1160	1810	1905	4200
750KVA			980	7500	2030	1300	2030	2755	6074
1000KVA			1150	10300	1854	1549	1651	3235	7132
1500KVA			1640	14500	2150	1570	2210	5835	12864
2000KVA			2160	20645	2220	1600	2380	6430	14175
2500KVA			2680	23786	2330	1650	3070	8865	19544
3000KVA			3300	30300	2460	1850	3260	11300	24912
3735KVA			4125	37875	2680	2060	4080	14400	31746

Production process

3 Phase Pad Mounted Transformer Oil Immersed Distribution 500Kva 12870V ANSI IEEE Standards 5

3 Phase Pad Mounted Transformer Oil Immersed Distribution 500Kva 12870V ANSI IEEE Standards 6

3 Phase Pad Mounted Transformer Oil Immersed Distribution 500Kva 12870V ANSI IEEE Standards 7

FAQ

1. Q: Can I have a sample order?

A: Yes, we welcome sample order to test and check quality.

2. Q: What is the lead time?

A: Mass production time 15-25 days.

3. Q: How long is the warranty?

A: 24 monthes from B/L. If there are any accessory problems,just provide the photos of damaged accessory,then we will provide free service. According to the number of products,we will provide easily damaged accessories for free. we also can provide technical support if you need.

4. Q: Is OEM/ODM available?

A: Yes,it is! We are manufacturer with our own R&D team, we can customize products according to customer's drawing or requirements.

Customized services:

a. Customized color and special function.

b. Customized box.

c. Print customer's logo.

d. Your other ideas about product, we can help you design and put them into production. The above customized services must be confirmed before production.

5. Q: How to control the products quality?

A: Our company owns the core technology ,all kinds of products hold CE certificate. We have professional engineers. Workers are strictly required to make products according to the drawings. Each process has technical instructors.The QC supervisors will regularly inspect the production. We will do products performance tests during production, and comprehensive quality tests when the products is completed.
