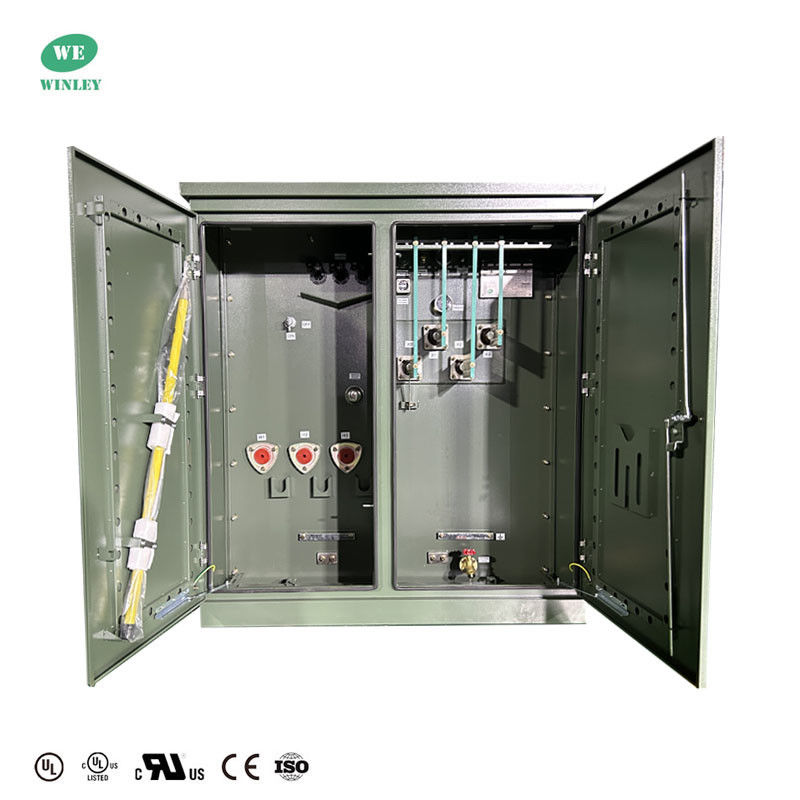

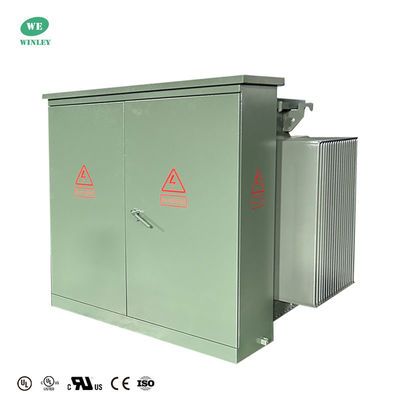

1300Kva Pad Mounted Three Phase Oil Immersed Distribution Transformer 13.8KV To 480V With UL Certified
| Brand Name: | WINLEY |
| Model Number: | ZGS-1000/13.8 |
| MOQ: | 1unit |
| Price: | $5000-$150000 |
| Packaging Details: | Plywood case |
| Payment Terms: | T/T |
480V Pad Mounted Transformer
,1300Kva Pad Mounted Transformer
,13.8KV Pad Mounted Transformer
1000Kva Pad Mounted Three Phase Oil Immersed Distribution Transformer 13.8KV To 480V With UL Certified
Why choose us
- WINLEY produces a full range of three phase pad mounted transformers with a capacity of 45kva-5500KVA and a voltage of up to 34.5KV. The products meet or even exceed the standards of DOE 2016, IEEE/ANSI, CSA, IEC, NEMA, etc.
- The three phase pad mounted transformer produced by WINLEY has obtained UL/cUL certification (Certificate Number: UL-US-2431836-0, UL-CA-2423202-0), and can apply for UL (partner authorization) according to customer requirements.
- Our products are exported to North America, South America, the Philippines and other places in large quantities. We have rich experience in design and production, professional and reliable after-sales service, and can deliver goods quickly within 7-35 days.
Design capabilities
- Capacity :75 kVA—5000 kVA
- Primary Voltage : 34.5KV,24.94KV,13.8KV,13.2KV,12.47KV,4.16KV or others
- Secondary Voltage :690Y/400,480Y/277, 208Y/120,240Y/120 or others
- Feed Type: Loop feed,Radial feed
- Standards: IEEE/ANSI(C57.12.34 ), CSA(C227.4 和 C227.5), IEC, DOE, NEMA
Main data
| No. | Particulars | Unit | Specification |
| 1 | Type | ~ | pad mounted,radial feed |
| 2 | Rated capacity | kVA | 1000 |
| 3 | No. of Phase | ~ | 3 |
| 4 | Primary voltage | V | 13800 |
| 5 | Primary termination | ~ | 15kV class, BIL95kV, 200A well&insert |
| 6 | Secondary voltage | V | 480Y/277 |
| 7 | Secondary connection | ~ | 6-hole spade |
| 7 | Tapping type | ~ | off-circuit tapping |
| 8 | Tapping range | % | ±2*2.5% |
| 9 | Cooling method | ~ | ONAN |
| 10 | Rated frequency | Hz | 60 |
| 11 | Vector group | ~ | Dyn1 |
| 12 | Insulation class | ~ | A (105℃) |
| 13 | Temperature rise | K | 65 |
| 14 | Off-load loss | W | 1150 |
| 15 | On-load loss (85℃) | W | 9800 |
| 16 | Impedance | % | 4.0~6.0 |
| 17 | Winding material | ~ | Aluminum |
| 18 | Core material | ~ | silicon steel |
| 19 | Cooling material | ~ | Mineral oil |
| 20 | Housing material | ~ | coated steel (Munsell bell green) |
| 23 | Service condition | ~ | indoor or outdoor |
| 24 | Sea level | M | ≤1000 |
| 25 | Standard | ~ | IEEE C57.159 |
Technical drawings
STRUCTURE
WINLEY’s Three-phase pad-mounted oil-immersed transformers are powerful, dependable, and designed with the environment in mind. With the ability to function indoors and outdoors, these transformers offer enhanced reliability and protection against critical equipment failure.

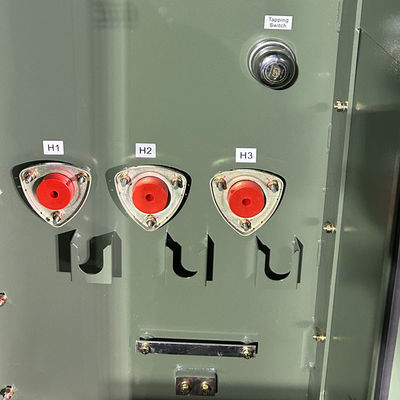

- HV bushings

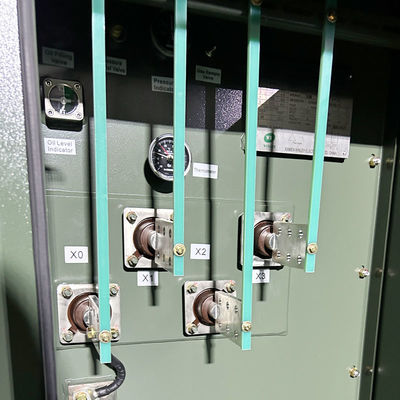

- LV bushings
- Tap Change
- Insulating Oil
- Oil level gauge
- Liquid temperature gauge
- Pressure vacuum gauge
- Lifting Lugs
- Grounding Terminals

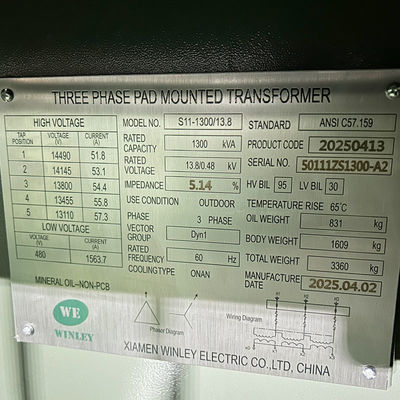

- Nameplate
- Load break switch
- Bayonet fuse
- ELSP fuse
- Oil drain valve with sampler
- Drain valve
Specification
| Rated Power (KVA) |
High Voltage (KV) |
Low Voltage (V) |
No-load Loss (W) |
On-load Loss (W) |
Height (mm) |
Depth (mm) |
Width (mm) |
Weight (kg) |
Weight (Lbs) |
| 75KVA | 34.5KV 4.160KV 12.47KV 13.2KV 13.8KV 24940GrdY/14400 1247Grdy/7200 4160GrdY/2400 or others |
277V 347V 480V 600V 120/240V 208GrdY/120 415GrdY/240 480GrdY/277 600Y/347 |
180 | 1250 | 1430 | 910 | 1930 | 645 | 1422 |
| 150KVA | 280 | 2200 | 1530 | 980 | 1510 | 989 | 2180 | ||
| 300KVA | 480 | 3650 | 1680 | 1080 | 1660 | 1415 | 3119 | ||
| 500KVA | 680 | 5100 | 1790 | 1160 | 1810 | 1905 | 4200 | ||
| 750KVA | 980 | 7500 | 2030 | 1300 | 2030 | 2755 | 6074 | ||
| 1000KVA | 1150 | 10300 | 1854 | 1549 | 1651 | 3235 | 7132 | ||
| 1500KVA | 1640 | 14500 | 2150 | 1570 | 2210 | 5835 | 12864 | ||
| 2000KVA | 2160 | 20645 | 2220 | 1600 | 2380 | 6430 | 14175 | ||
| 2500KVA | 2680 | 23786 | 2330 | 1650 | 3070 | 8865 | 19544 | ||
| 3000KVA | 3300 | 30300 | 2460 | 1850 | 3260 | 11300 | 24912 | ||
| 3735KVA | 4125 | 37875 | 2680 | 2060 | 4080 | 14400 | 31746 |
Application
Pad mount transformers are an essential part of modern distribution networks and are used in modern underground distribution power systems. They provide efficient and reliable power distribution in a variety of environments, including residential, commercial, energy storage, tram, ultility, etc. They are widely used in the Americas region due to their durability, easy maintenance, and safety features.
Production process
FAQ
1. Q: Can I have a sample order?
A: Yes, we welcome sample order to test and check quality.
2. Q: What is the lead time?
A: Mass production time 15-25 days.
3. Q: How long is the warranty?
A: 24 monthes from B/L. If there are any accessory problems,just provide the photos of damaged accessory,then we will provide free service. According to the number of products,we will provide easily damaged accessories for free. we also can provide technical support if you need.
4. Q: Is OEM/ODM available?
A: Yes,it is! We are manufacturer with our own R&D team, we can customize products according to customer's drawing or requirements.
Customized services:
a. Customized color and special function.
b. Customized box.
c. Print customer's logo.
d. Your other ideas about product, we can help you design and put them into production. The above customized services must be confirmed before production.
5. Q: How to control the products quality?
A: Our company owns the core technology ,all kinds of products hold CE certificate. We have professional engineers. Workers are strictly required to make products according to the drawings. Each process has technical instructors.The QC supervisors will regularly inspect the production. We will do products performance tests during production, and comprehensive quality tests when the products is completed.
