1000Kva Three Phase Pad Mounted Transformer 304SS Distribution 12000V Oil Immersed UL / CUL Certified

Brand Name:	WINLEY
Model Number:	ZGS-1000/34.5
MOQ:	1unit
Price:	$5000-$150000
Packaging Details:	Plywood case
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

UL,CE,ISO

Phase:

Three Phase

Capacity:

1MVA (1000KVA)

Primary Voltage:

12000V

Secondary Voltage:

480Y/277V

Feed Type:

Loop Feed

Material:

Copper/Aluminum

Tank Material:

304 Stainless Steel

UL/cUL Certification:

UL-US-2431836-0, UL-CA-2423202-0

Supply Ability:

1000set/month

Highlight:

Three Phase Pad Mounted Transformer

1000Kva Pad Mounted Transformer

12000V Pad Mounted Transformer

Product Description

1000Kva Three Phase Pad Mounted Transformer 304 Stainless Steel Distribution 12000V Oil Immersed UL / cUL Certified

Three Phase Pad Mounted Transformer widely used in power distribution systems, solar energy systems and Crypto Mining.Three phase Pad Mounted Transformer can be designed to UL listed standards and feature fully enclosed tamper-resistant terminal compartments, available in pre-dead or pre-live configurations, for loop or radial feed applications, using mineral oil, or environmentally friendly Envirotemp™ FR3™.

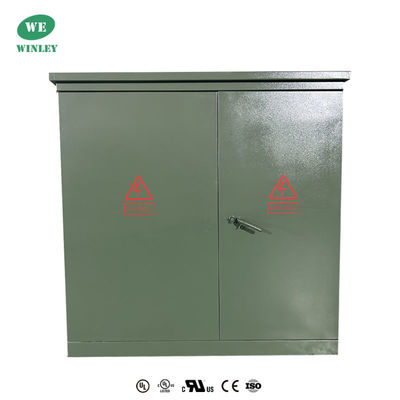

1000Kva Three Phase Pad Mounted Transformer 304SS Distribution 12000V Oil Immersed UL / CUL Certified 0

WINLEY is a professional pad mounted transformer manufacturer and supplier, Various international standards can be customized for your transformer, such as: IEEE/ANSI(C57.12.34 ), CSA(C227.4 和 C227.5), IEC, DOE, NEMA, WINLEY produces transformers with UL/cUL, ISO, CE etc certifications, and We can also apply for UL (partner authorization), SASO, SONCAP, etc. according to customer requirements.

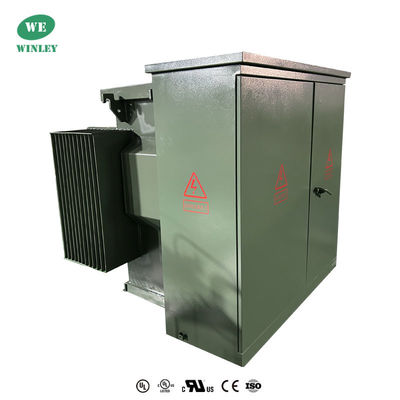

1000Kva Three Phase Pad Mounted Transformer 304SS Distribution 12000V Oil Immersed UL / CUL Certified 1

Design capabilities

Capacity :75 kVA—5000 kVA
Primary Voltage : 34.5KV,24.94KV,13.8KV,13.2KV,12.47KV,4.16KV or others
Secondary Voltage :690Y/400,480Y/277, 208Y/120,240Y/120 or others
Feed Type: Loop feed,Radial feed
Standards: IEEE/ANSI(C57.12.34 ), CSA(C227.4 和 C227.5), IEC, DOE, NEMA

Main data

Transformer Type	Pad Mounted
Transformer Feed Type	Loop Feed
Phase	Three Phase
Capacity	1 MVA (1000 KVA)
Vector Group	Dyn1
Primary Voltage	12000V
Secondary Voltage	480Y/277
Frequency	60 Hz
Temperature Rise	65°C
Cooling Class	KNAN; Self-Cooled
Impedance	5.75%
Efficiency Standard(s)	Meets DOE 2016 Standards, Meets ANSI/IEEE Standards
K-Factor Rating (Harmonic Mitigation)	K-1 (Standard)
Winding Material	Copper
Ambient Temperature Rating	40°C
Tank Material	304 Stainless Steel
Dimensions	72''-W x 62''-D x 63''-H
Weight	6,734 Lbs
Efficiency %	99.20%
No Load Loss (in watts))	+/- 1,290W
Full Load Loss (in watts) at 100%	+/- 8,450W

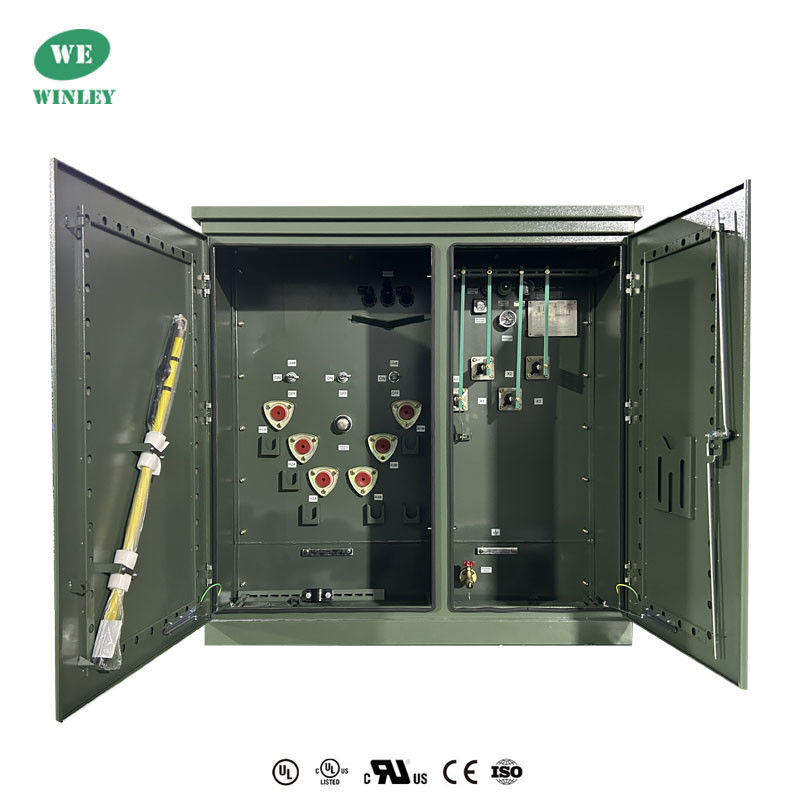

STRUCTURE

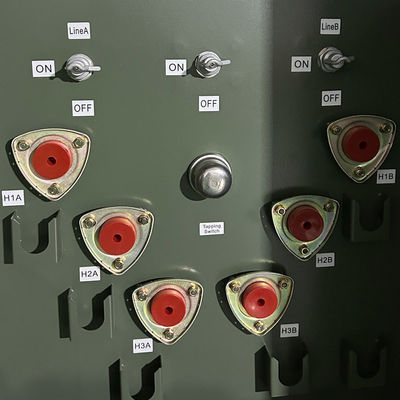

HV bushings
LV bushings
Tap Change
Insulating Oil
Oil level gauge
Liquid temperature gauge
Pressure vacuum gauge
Lifting Lugs
Grounding Terminals
Nameplate
Load break switch
Bayonet fuse
ELSP fuse
Oil drain valve with sampler
Drain valve

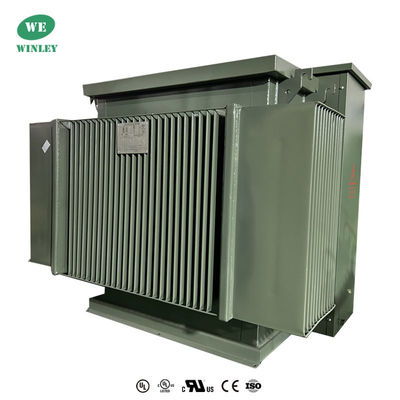

1000Kva Three Phase Pad Mounted Transformer 304SS Distribution 12000V Oil Immersed UL / CUL Certified 2

Drawing

1000Kva Three Phase Pad Mounted Transformer 304SS Distribution 12000V Oil Immersed UL / CUL Certified 3

Specification

Rated Power (KVA)	High Voltage (KV)	Low Voltage (V)	No-load Loss (W)	On-load Loss (W)	Height (mm)	Depth (mm)	Width (mm)	Weight (kg)	Weight (Lbs)
75KVA	34.5KV 4.160KV 12.47KV 13.2KV 13.8KV 24940GrdY/14400 1247Grdy/7200 4160GrdY/2400 or others	277V 347V 480V 600V 120/240V 208GrdY/120 415GrdY/240 480GrdY/277 600Y/347	180	1250	1430	910	1930	645	1422
150KVA			280	2200	1530	980	1510	989	2180
300KVA			480	3650	1680	1080	1660	1415	3119
500KVA			680	5100	1790	1160	1810	1905	4200
750KVA			980	7500	2030	1300	2030	2755	6074
1000KVA			1150	10300	1854	1549	1651	3235	7132
1500KVA			1640	14500	2150	1570	2210	5835	12864
2000KVA			2160	20645	2220	1600	2380	6430	14175
2500KVA			2680	23786	2330	1650	3070	8865	19544
3000KVA			3300	30300	2460	1850	3260	11300	24912
3735KVA			4125	37875	2680	2060	4080	14400	31746

Production process

FAQ

1. Q: Can I have a sample order?

A: Yes, we welcome sample order to test and check quality.

2. Q: What is the lead time?

A: Mass production time 15-25 days.

3. Q: How long is the warranty?

A: 24 monthes from B/L. If there are any accessory problems,just provide the photos of damaged accessory,then we will provide free service. According to the number of products,we will provide easily damaged accessories for free. we also can provide technical support if you need.

4. Q: Is OEM/ODM available?

A: Yes,it is! We are manufacturer with our own R&D team, we can customize products according to customer's drawing or requirements.

Customized services:

a. Customized color and special function.

b. Customized box.

c. Print customer's logo.

d. Your other ideas about product, we can help you design and put them into production. The above customized services must be confirmed before production.

5. Q: How to control the products quality?

A: Our company owns the core technology ,all kinds of products hold CE certificate. We have professional engineers. Workers are strictly required to make products according to the drawings. Each process has technical instructors.The QC supervisors will regularly inspect the production. We will do products performance tests during production, and comprehensive quality tests when the products is completed.
