Zig Zag Grounding Transformer 500 KVA Pad Mounted Liquid Filled 35KV 100A Continuous Meets DOE 2016 CSA ANSI IEEE Standards
| Brand Name: | WINLEY |
| Model Number: | S-5000/35 |
| MOQ: | 1unit |
| Price: | $5000-$150000 |
| Packaging Details: | Plywood case |
| Payment Terms: | T/T |
35KV Grounding Transformer
,Liquid Filled Grounding Transformer
,500 KVA Grounding Transformer
Zig Zag Grounding Transformer 5000 KVA Pad Mounted Liquid Filled 35KV 100A Continuous Meets DOE 2016 CSA ANSI IEEE Standards
The zig-zag transformer is typically the least costly method that can be used as a high impedance ground system.WINLEY's zig zag grounding transformers are designed with exceptional quality and attention to detail, meeting a wide range of specifications and applications. These grounding transformers are designed to perform in the most rigorous industries and last for decades.

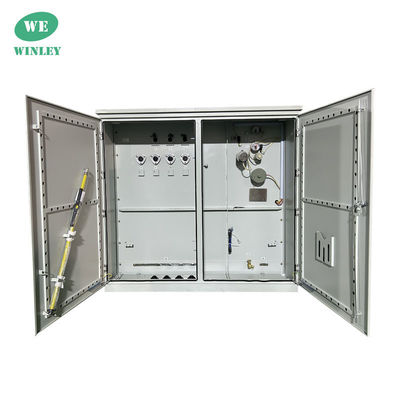

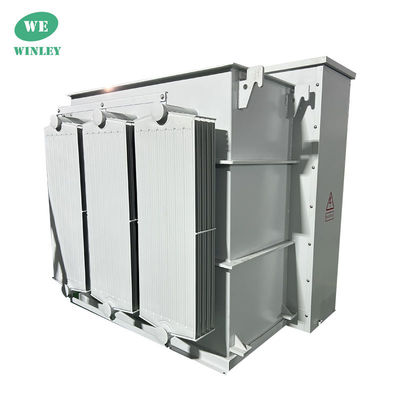

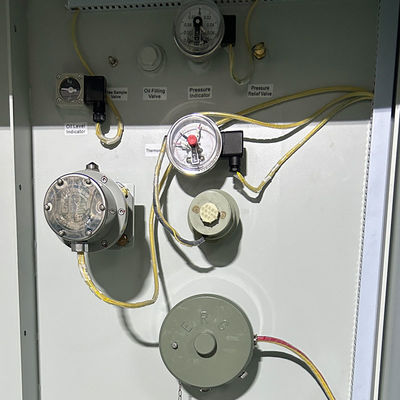

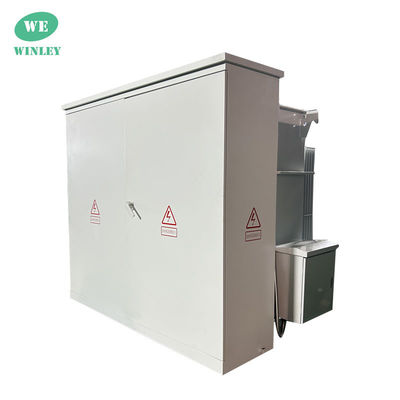

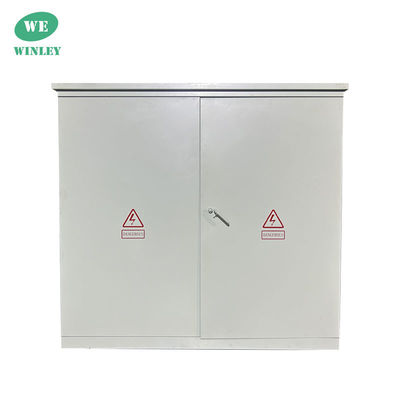

Zig Zag Grounding Transformer Factory product photos
Zig Zag Grounding Transformer Main data
| Operation | Zig Zag Grounding Transformer |
| Transformer Feed Type | Radial Feed |
| Phase | Three Phase |
| Capacity | 500 KVA, 100A Continuous |
| Vector Group | ZN |
| Primary Voltage | 27600GrdY/15940 |
| Primary Voltage Class | 35 kV Class |
| Primary Phasor | Grounded Wye |
| Primary BIL | 150 KV |
| Frequency | 60 Hz |
| Temperature Rise | 65°C |
| Insulation Rating | Class E Insulation - 120°C |
| Cooling Class | KNAN; Self-Cooled |
| Efficiency Standard(s) | Meets DOE 2016 Standards, Meets CSA Standards Meets ANSI/IEEE Standards |
| K-Factor Rating (Harmonic Mitigation) | K-1 (Standard) |
| Winding Material | Copper |
| Dimensions* | 60''-W x 58''-D x 69''-H |
| Total Weight (Liquid Filled)* | 4,711 Lbs |
| Efficiency % | 99.10% |
| No Load Loss (in watts) | +/- 700W |
| Full Load Loss (in watts) at 100% | +/- 5,000W |
Zig Zag Grounding Transformer Technical drawings
Reasons for the Necessity of Grounding Transformers
- They serve as a measuring point for monitoring faults.
- They help reduce the intensity of transient over-voltages that may arise during a ground fault re-strike.
- They may include a low-voltage auxiliary winding, allowing them to act as a local power supply for substations.
- They facilitate the connection of phase-to-neutral loads when necessary.
- By offering a low-impedance route to the ground, they assist in keeping the system neutral near ground potential.
- They are employed in wind farms to protect against faults in ungrounded cables.
- They can supply ground-fault current during line-to-ground faults.
Zig Zag Grounding Transformer Factory Tests
- Winding Resistance Test
- Insulation Resistance Test
- Voltage Ratio Error Test
- Short-circuit Impedance Test
- No-load Loss (Wattage) Test
- Load Loss (Wattage) Test
- Induced Voltage Withstand Test
- Separate Source Voltage Withstand Test
- Pressure Integrity Test
Zig Zag Grounding Transformer Production process
FAQ
1. Q: Can I have a sample order?
A: Yes, we welcome sample order to test and check quality.
2. Q: What is the lead time?
A: Mass production time 15-25 days.
3. Q: How long is the warranty?
A: 24 monthes from B/L. If there are any accessory problems,just provide the photos of damaged accessory,then we will provide free service. According to the number of products,we will provide easily damaged accessories for free. we also can provide technical support if you need.
4. Q: Is OEM/ODM available?
A: Yes,it is! We are manufacturer with our own R&D team, we can customize products according to customer's drawing or requirements.
Customized services:
a. Customized color and special function.
b. Customized box.
c. Print customer's logo.
d. Your other ideas about product, we can help you design and put them into production. The above customized services must be confirmed before production.
5. Q: How to control the products quality?
A: Our company owns the core technology ,all kinds of products hold CE certificate. We have professional engineers. Workers are strictly required to make products according to the drawings. Each process has technical instructors.The QC supervisors will regularly inspect the production. We will do products performance tests during production, and comprehensive quality tests when the products is completed.
