500 KVA Pad Mounted Zig Zag Grounding Transformer Liquid Filled 4160V Meets DOE 2016 CSA ANSI/IEEE Standards
| Brand Name: | WINLEY |
| Model Number: | S-500/5 |
| MOQ: | 1unit |
| Price: | $5000-$150000 |
| Packaging Details: | Plywood case |
| Payment Terms: | T/T |
Liquid Filled Pad Mounted Transformer
,4160V Pad Mounted Transformer
,CSA Pad Mounted Transformer
500 KVA Pad Mounted Zig Zag Grounding Transformer Liquid Filled 4160V Meets DOE 2016 CSA ANSI/IEEE Standards
Main data
| Transformer Type | Pad Mounted, Compartmental-Type, Zig Zag Grounding Transformer |
| Transformer Configuration | Liquid Filled Pad Mounted |
| Transformer Feed Type | Loop Feed |
| Phase | Three Phase |
| Capacity | 500 KVA |
| Vector Group | ZN |
| Primary Voltage | 4160Y/2400 |
| Frequency | 60 Hz |
| Temperature Rise | 65°C |
| Insulation Rating | Class E |
| Cooling Class | KNAN |
| Impedance | 45 Ω/Ph |
| Efficiency Standard(s) | Meets DOE 2016 Standards, Meets CSA Standards Meets ANSI/IEEE Standards |
| Winding Material | Copper |
| Ambient Temperature Rating | 40°C |
| Dimensions* | 60-W x 43-D x 68-H |
| Total Weight (Liquid Filled)* | 2,500 lb |

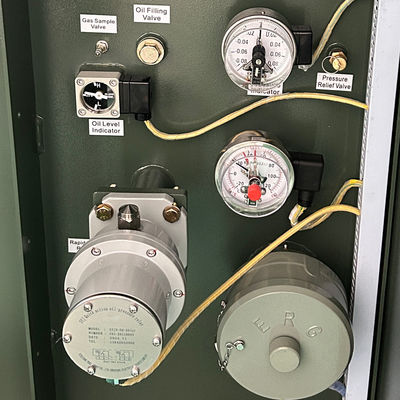

Features
- Pentahead Bolt Entry Assembly
- High-Fire Point Insulating Fluid
- Non-PCB Insulating Fluid
- Tamper Proof Housing

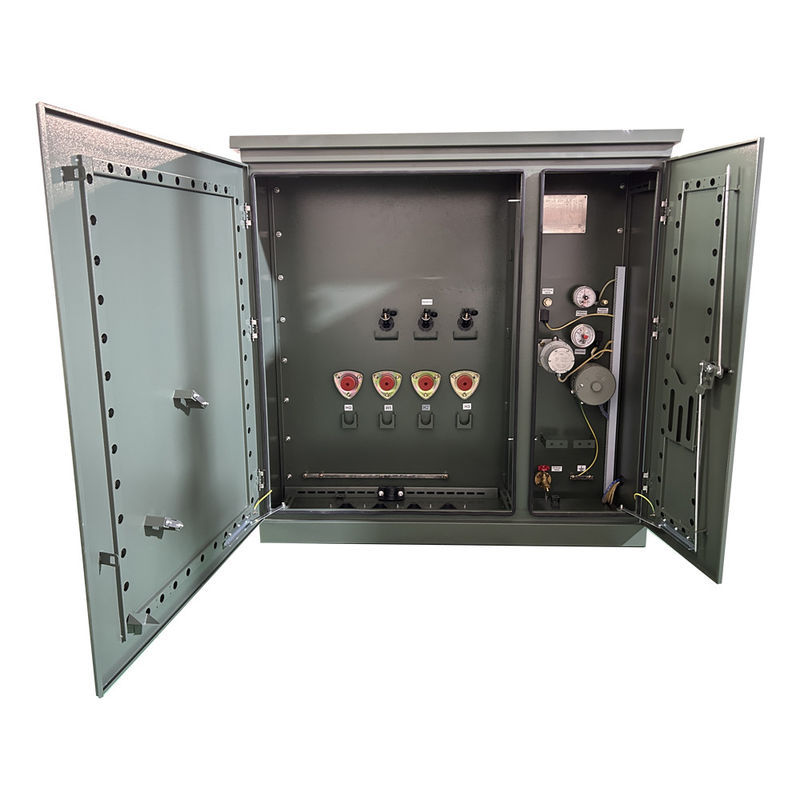

- Hinged Front Compartment Doors, Pad Lockable
- NEMA 3R Wiring Compartment
- Hot Stick Included, HV Door Mount
Technical drawings
Ratings
- Meets/Exceeds DOE 2016 Efficiency Ratings
- Meets/Exceeds CSA Efficiency Ratings
- Complies with ANSI / IEEE C57.12.00
- Complies with ANSI / IEEE C57 12.28
- Complies with ANSI / IEEE C57 12.29
- Complies with ANSI / IEEE C57 12.34
- Complies with ANSI / IEEE C57 12.35
- Complies with ANSI / IEEE C57.12.70
- Complies with ANSI / IEEE C57.12.110
- Complies with ANSI / IEEE C57.12.131
- Complies with ANSI / IEEE C62.11
- Complies with ANSI / IEEE C62.22
- Complies with ANSI Z535.4
- Complies with ANSI / IEEE 386
- Complies with ANSI / IEEE C2
- Complies with ANSI / IEEE C37.47
- Complies with ASTM D3487
- Complies with ASTM D6871
- Complies with NEMA 260-1996
- Complies with 10 CFR Part 431
- Complies with CSA C2.1-06
- Complies with CSA C50
- Complies with CSA C88
- Complies with CSA C88.1
- Complies with CSA C88-16
- Complies with CSA C227.4
- Complies with CSA C227.5
- Complies with CSA C802-3
- Complies with CSA C802.1

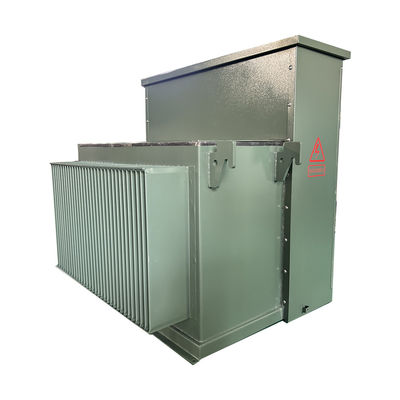

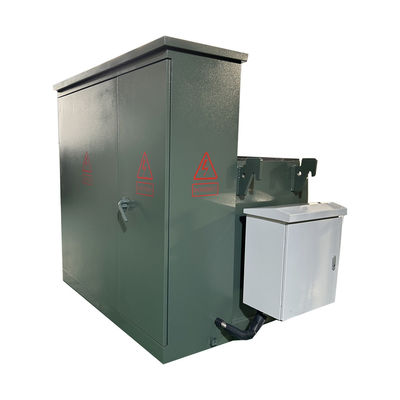

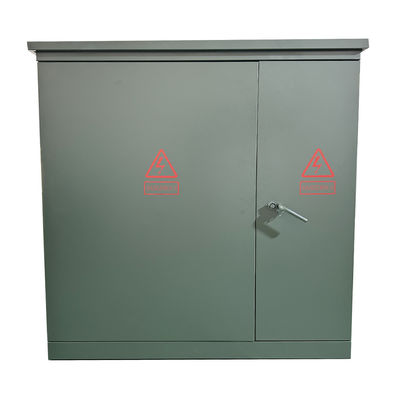

Factory product photos
Production process
FAQ
1. Q: Can I have a sample order?
A: Yes, we welcome sample order to test and check quality.
2. Q: What is the lead time?
A: Mass production time 15-25 days.
3. Q: How long is the warranty?
A: 24 monthes from B/L. If there are any accessory problems,just provide the photos of damaged accessory,then we will provide free service. According to the number of products,we will provide easily damaged accessories for free. we also can provide technical support if you need.
4. Q: Is OEM/ODM available?
A: Yes,it is! We are manufacturer with our own R&D team, we can customize products according to customer's drawing or requirements.
Customized services:
a. Customized color and special function.
b. Customized box.
c. Print customer's logo.
d. Your other ideas about product, we can help you design and put them into production. The above customized services must be confirmed before production.
5. Q: How to control the products quality?
A: Our company owns the core technology ,all kinds of products hold CE certificate. We have professional engineers. Workers are strictly required to make products according to the drawings. Each process has technical instructors.The QC supervisors will regularly inspect the production. We will do products performance tests during production, and comprehensive quality tests when the products is completed.
