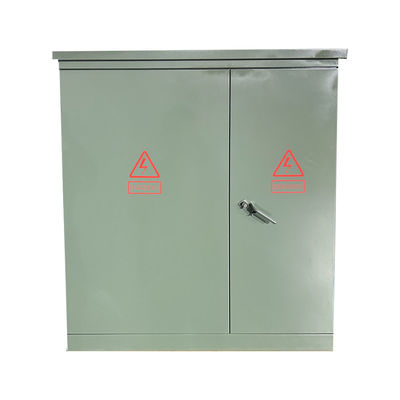

75 Kva 3 Phase Pad Mounted Transformer Liquid-filled 13.2KV DOE 2016 Efficiency UL/cUL Certified

Why choose us

• The product range spans from 45KVA to 5500 KVA, with a voltage rating of up to 34.5 KV, conforming to or exceeding standards such as DOE 2016, IEEE/ANSI, CSA , IEC , NEMA.
• The products hold UL/cUL certification (Certificate Numbers: UL-US-2431836-0, UL-CA-2423202-0) and can obtain UL (partner authorization) based on customer requests.
• Our products are exported in large quantities to regions such as North America and the Philippines. We pride ourselves on our extensive design and production experience, along with professional and reliable after-sales service, ensuring quick delivery within 7 to 35 days.

Main data

Product structure

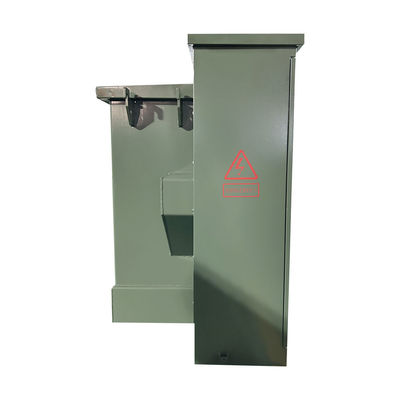

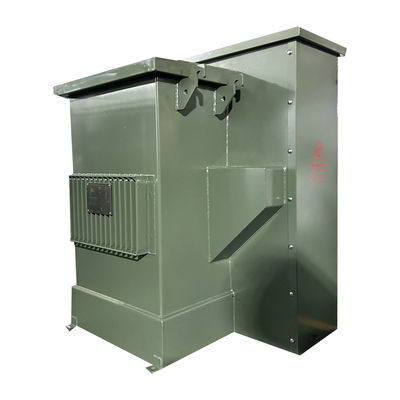

1)The transformer part and the control cabinet part of the United States variation, of which the transformer part is a fully sealed structure, and the insulating oil can be two types of high ignition point oil or ordinary oil.
2)The control cabinet is divided into a high-voltage room and a low-voltage room.

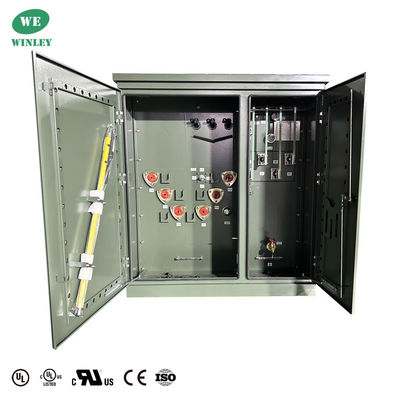

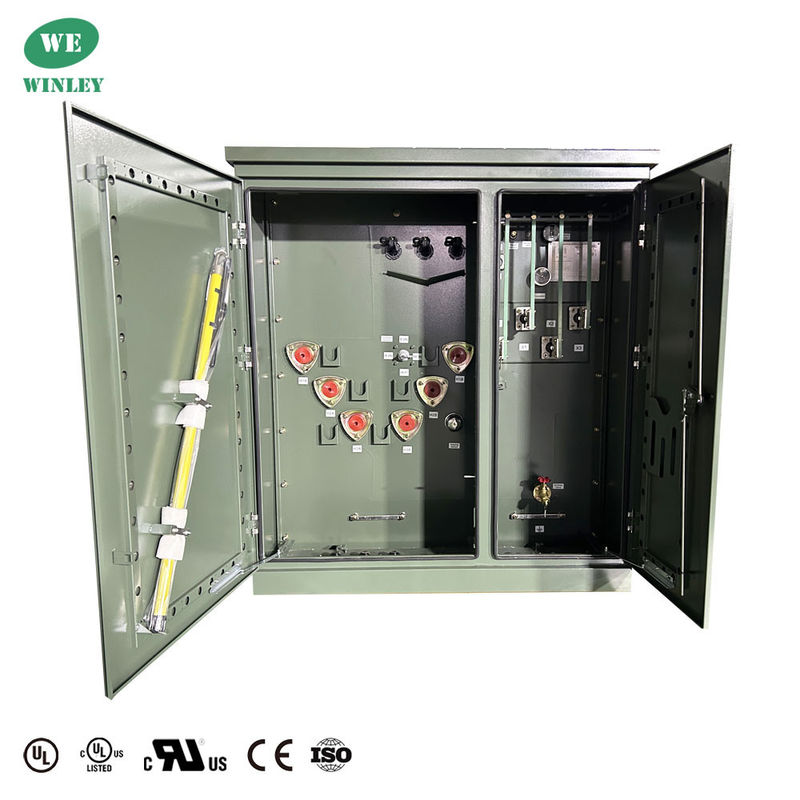

3)The high-voltage room is equipped with: high-voltage cable plug, lightning arrester, load switch operating handle, non-excitation tap switch handle, plug-in fuse, pressure release valve, thermometer, pressure gauge, oil Position gauges, oil filling plugs, oil drain valves, etc., load switches, off-excitation tap changers, plug-in fuses, etc. are all immersed in transformer oil together with the transformer core. The high-voltage cable and the transformer are connected by elbow cable connectors.

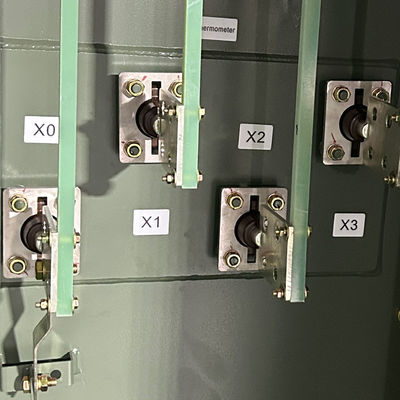

4)The low-voltage side can be installed with air circuit breakers, current transformers, as well as electric energy meters, ammeters and voltmeters, and output circuits and capacitance compensation devices can be configured according to user needs.

Technical drawings

Specification

Ratings

• Meets/Exceeds DOE 2016 Efficiency Ratings
• Meets/Exceeds CSA Efficiency Ratings
• Complies with ANSI / IEEE C57.12.00
• Complies with ANSI / IEEE C57 12.28
• Complies with ANSI / IEEE C57 12.29
• Complies with ANSI / IEEE C57 12.34
• Complies with ANSI / IEEE C57 12.35
• Complies with ANSI / IEEE C57.12.70
• Complies with ANSI / IEEE C57.12.110
• Complies with ANSI / IEEE C57.12.131
• Complies with ANSI / IEEE C62.11
• Complies with ANSI / IEEE C62.22
• Complies with ANSI / IEEE 386
• Complies with ANSI / IEEE C2
• Complies with ANSI / IEEE C37.47
• Complies with ANSI Z535.4
• Complies with ASTM D3487
• Complies with ASTM D6871
• Complies with NEMA 260-1996
• Complies with 10 CFR Part 431
• Complies with CSA C2.1-06
• Complies with CSA C50
• Complies with CSA C88
• Complies with CSA C88.1
• Complies with CSA C88-16
• Complies with CSA C227.4
• Complies with CSA C227.5
• Complies with CSA C802-3
• Complies with CSA C802.1
