2500 Kva Three Phase Pad Mounted Transformer Step-Down 12470v To 480V  UL Certification

Brand Name: WINLEY
Model Number: S-2500/12.47
MOQ: 1unit
Price: $5000-$150000
Packaging Details: Plywood case
Payment Terms: T/T
Detail Information
Product Description
Detail Information
Place of Origin:
CHINA
Certification:
UL/cUL,CE,ISO
Phase:
Three Phase
Capacity @ 55°:
2.5 MVA (2500 KVA)
Primary Voltage:
12470V Or Customized
Secondary Voltage:
480Y/277
Capacity @ 65°:
3.5 MVA (3500 KVA)
Cooling Class:
KNAN/KNAF
Efficiency %:
99.40%
Enclosure:
NEMA 3R
Supply Ability:
1000set/month
Highlight:

Three Phase Pad Mounted Transformer

,

2500Kva Pad Mounted Transformer

Product Description

2500 Kva Three Phase Pad Mounted Transformer Step-Down 12470v To 480V UL Certification





summary



WINLEY offers a complete line of liquid-filled ThreePhase Pad-Mounted distribution transformers that meet applicable ANSI®/IEEE® standards.

The three phase pad mounted transformer immerses the load switch and fuse on the high voltage side of the transformer with the core and windings of the transformer in the same oil tank, has the advantages of advanced structure, reliable performance, energy saving and consumption reduction, flexible use, strong adaptability, and economical advantages.



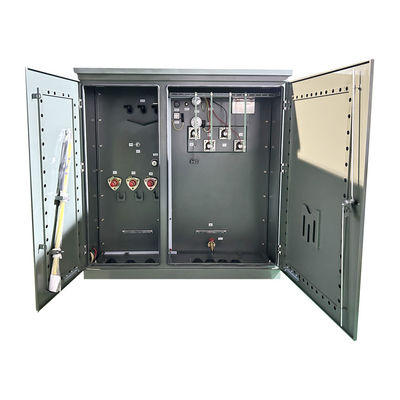

2500 Kva Three Phase Pad Mounted Transformer Step-Down 12470v To 480V  UL Certification 0



Main data



Transformer Type Pad Mounted, Compartmental-Type
Phase Three Phase
Capacity @ 55° (w/o Fans) 2.5 MVA (2500 KVA)
Capacity @ 65° (w/ Fans) 3.125 MVA (3125 KVA)
Vector Group DYN1
Primary Voltage 12470V
Secondary Voltage 480Y/277
Frequency 60 Hz
Temperature Rise 65°C
Insulation Rating Class E Insulation - 120°C, 248°F
Cooling Class KNAN/KNAF
Impedance 5.75%
Efficiency Standard(s) DOE 2016 Standards, CSA Standards ,ANSI/IEEE Standards
K-Factor Rating (Harmonic Mitigation) K-1 (Standard)
Winding Material Copper
Ambient Temperature Rating 40°C
Ambient Operating Temperature Range -40°C to +40°C (-50°F to +104°F)
Sound Level 60 dBA
Enclosure Rating NEMA 3R
Dimensions* 75-W x 75-D x 73-H
Total Weight (Liquid Filled)* 11,529 lb
Efficiency % 99.40%
No Load Loss (in watts) +/- 2,690W
Full Load Loss (in watts) at 100% +/- 15,480W



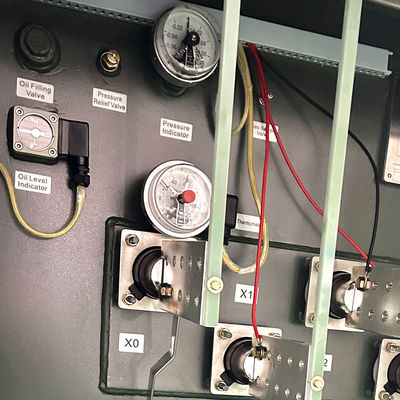

FEATURES



Pentahead Bolt Entry Assembly
High-Fire Point Insulating Fluid
Non-PCB Insulating Fluid
Tamper Proof Housing
Hinged Front Compartment Doors, Pad Lockable
NEMA 3R Wiring Compartment
Hot Stick Included, HV Door Mount





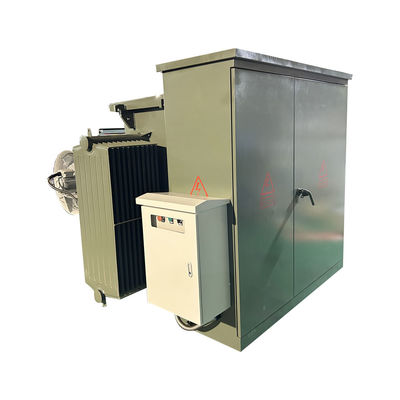

2500 Kva Three Phase Pad Mounted Transformer Step-Down 12470v To 480V  UL Certification 1

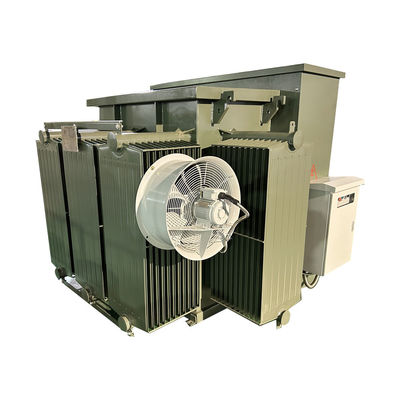

2500 Kva Three Phase Pad Mounted Transformer Step-Down 12470v To 480V  UL Certification 2



Specification



Three Phase Pad Mounted Transformer
Rated Power (KVA) High Voltage (KV) Low Voltage (V) Loss (W)
No-load Loss (W) On-load Loss (W)
75KVA 24.94/14.4kV
12.47/7.2kV
34.5KV/
19.92KV/
13.8KV/
13.2KV/
or others		 120/240V
480Y/
277V
600Y/
347V		 180 1250
112.5KVA 200 1500
150KVA 280 2200
225KVA 400 3050
300KVA 480 3650
500KVA 680 5100
750KVA 980 7500
1000KVA 1150 10300
1500KVA 1640 14500
2000KVA 2160 20645
2500KVA 2680 23786
3000KVA 3300 25300
3750KVA 4125 27875
5000KVA 5200 30000



Technical drawings



2500 Kva Three Phase Pad Mounted Transformer Step-Down 12470v To 480V  UL Certification 3



Production process



2500 Kva Three Phase Pad Mounted Transformer Step-Down 12470v To 480V  UL Certification 4

2500 Kva Three Phase Pad Mounted Transformer Step-Down 12470v To 480V  UL Certification 52500 Kva Three Phase Pad Mounted Transformer Step-Down 12470v To 480V  UL Certification 6



FAQ



1. Q: Can I have a sample order?

A: Yes, we welcome sample order to test and check quality.

2. Q: What is the lead time?

A: Mass production time 15-25 days.

3. Q: How long is the warranty?

A: 24 monthes from B/L. If there are any accessory problems,just provide the photos of damaged accessory,then we will provide free service. According to the number of products,we will provide easily damaged accessories for free. we also can provide technical support if you need.

4. Q: Is OEM/ODM available?

A: Yes,it is! We are manufacturer with our own R&D team, we can customize products according to customer's drawing or requirements.

Customized services:

a. Customized color and special function.

b. Customized box.

c. Print customer's logo.

d. Your other ideas about product, we can help you design and put them into production. The above customized services must be confirmed before production.

5. Q: How to control the products quality?

A: Our company owns the core technology ,all kinds of products hold CE certificate. We have professional engineers. Workers are strictly required to make products according to the drawings. Each process has technical instructors.The QC supervisors will regularly inspect the production. We will do products performance tests during production, and comprehensive quality tests when the products is completed.

Tags:
