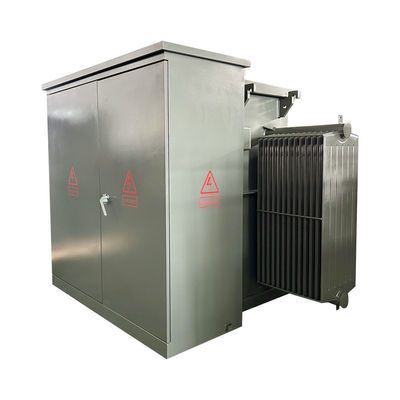

2500kva 3 Phase Pad Mounted Power Distribution Transformer 24.94KV To 4160V ANSI

The three phase pad mounted transformers we produce have obtained UL certification, with capacities ranging from 30 to 5500kVA and voltages up to 34.5kV. Our products are exported to North America the Philippines and other places in large quantities.

UL /cUL Certification

Main data

Technical drawings

Feature

1.Primary Switching
 1)5-position tap changer.
 2)4 position load break switch,Can be operated a hot stick and allows for flexibility in repair and maintenance.

2.termination connection

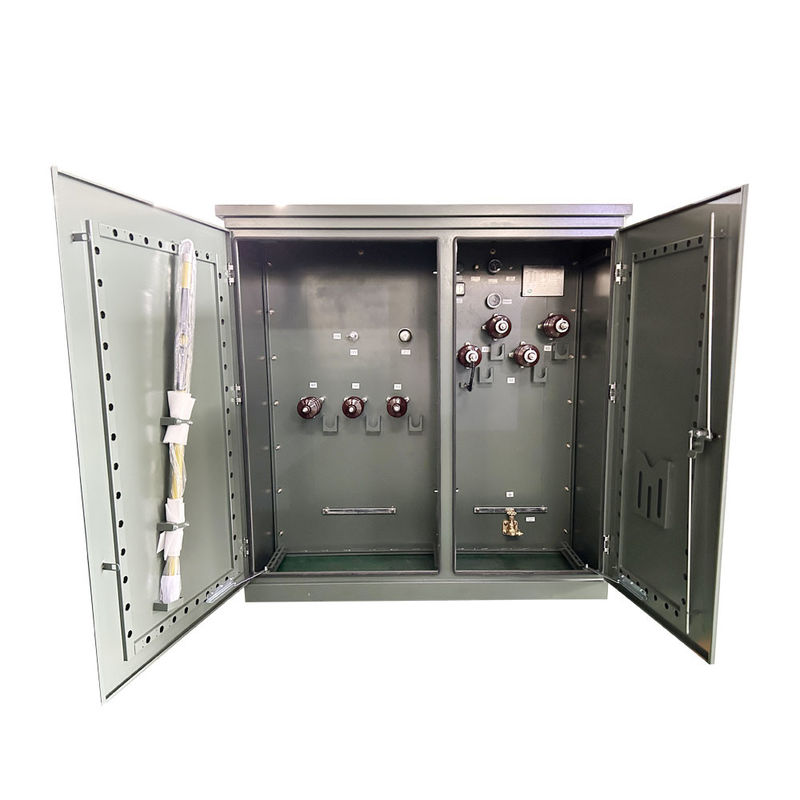

 1)Primary power cables are connected with elbow connectors.
 2)Externally clamped bushing wells with loadbreak inserts.
 3)Integral loadbreak or non-loadbreak bushings.
 4)Secondary termination Externally clamped bushings with NEMA 4-hole, 6-hole.8-hole,10-hole or 12-hole spades , Spade supports are available.

3.protective device
 1) Bayonet fuses partial-range current-limiting fuses.
 2) Automatic action pressure relief device.

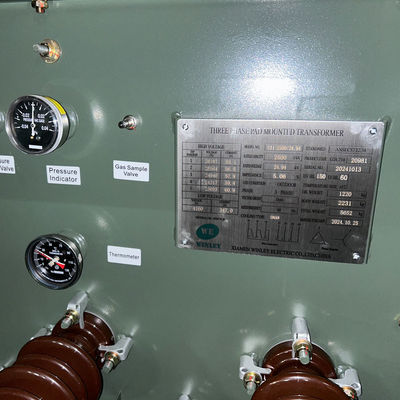

 3) Oil level gauge.
 4) Oil temperature gauge.
 5) Pressure vacuum gauge.
 6) Drain valve with sampler.
 7)Distribution class, metal oxide arresters, 3-36 kV.
 8)Distribution class, valve-type lightning arresters,3-27 kV.
