| Brand Name: | WINLEY |
| Model Number: | S11-1500/35 |
| MOQ: | 1unit |
| Price: | $5000-$150000 |
| Packaging Details: | Plywood case |
| Payment Terms: | T/T |

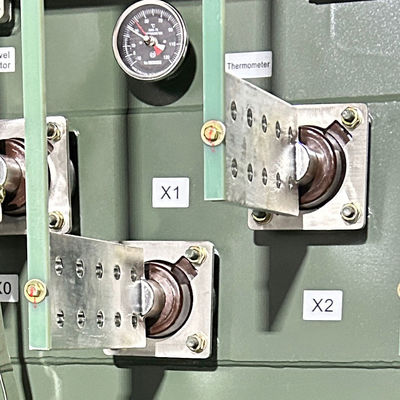

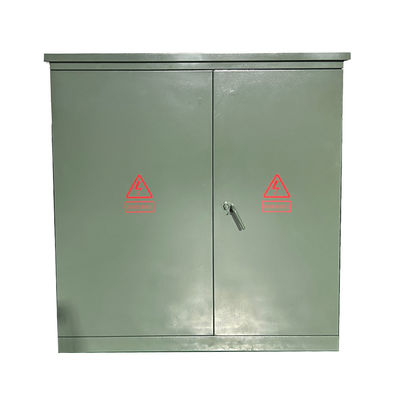

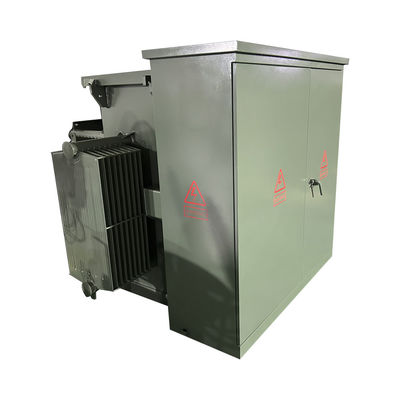

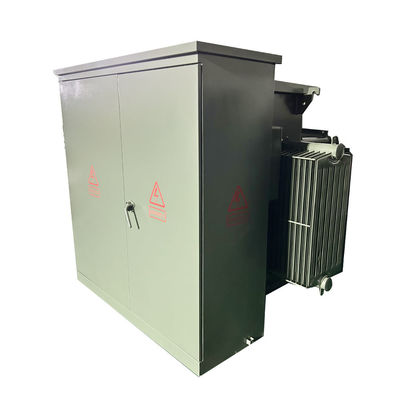

3 Phase Pad Mounted Electric Oil Type Transformer 1500kva 35kv Class
WINLEY specialize in the production of three phase pad mounted transformers. Our products have obtained UL/cUL certification comply with ANSI, IEEE, DOE, CSA and other standards. The rated power is usually 75kva to 5500kVA, and the voltage can reach 34.5 kV.
UL Certification
WINLEY's Pad Mounted Transformers have obtained UL certificate. WINLEY's transformers have passed the UL (Underwriters Laboratories) test, complying with the safety and sustainability standards recognized by the United States, and have a good guarantee in terms of quality, safety and service life. WINLEY can provide the UL lised of the Pad Mounted Transformer.
cUL Certification
WINLEY's Pad Mounted transformers have also obtained cUL certificates while obtaining UL certificates. WINLEY's pad mounted transformers have passed cUL (The Canadian version of Underwriters Laboratories) test, and can be used safely and reliably in the Canadian market.
Main data
| Transformer Type | Pad Mounted, Compartmental-Type |
| Phase | Three Phase |
| Transformer Feed Type | Loop Feed |
| Capacity | 1.5 MVA (1500 KVA) |
| Vector Group | DYN1 |
| Primary Voltage | 25700V |
| Primary Phasor | Delta |
| Secondary Voltage | 480Y/277 |
| Frequency | 60 Hz |
| Temperature Rise | 65°C |
| Insulation Rating | Class E Insulation - 120°C, 248°F |
| Cooling Class | KNAN; Self-Cooled |
| Impedance | 5.75% |
| Efficiency Standard(s) | Meets DOE 2016 Standards, Meets CSA Standards Meets ANSI/IEEE Standards |
| K-Factor Rating (Harmonic Mitigation) | K-1 (Standard) |
| Winding Material | Copper |
| Ambient Temperature Rating | 40°C |
| Ambient Operating Temperature Range | -40°C to +40°C (-50°F to +104°F) |
| Sound Level | 60 dBA |
| Elevation (Altitude) | 3300ft (1000 meters) Above Sea Level |
| Dimensions* | 75''-W x 72''-D x 72''-H |
| Total Weight (Liquid Filled)* | 9,750 Lbs |
| Efficiency % | 99.30% |
| No Load Loss (in watts) | +/- 1,900W |
| Full Load Loss (in watts) at 100% | +/- 10,500W |
Standard Feature
− Mild steel, optional stainless steel tank
− Three-point latching door for security
− Removable sill for easy installation
−Stainless steel cabinet hinges and mounting studs
Bolted-on cabinet with removable sill having the following depths:
22"deep for 1500 kva

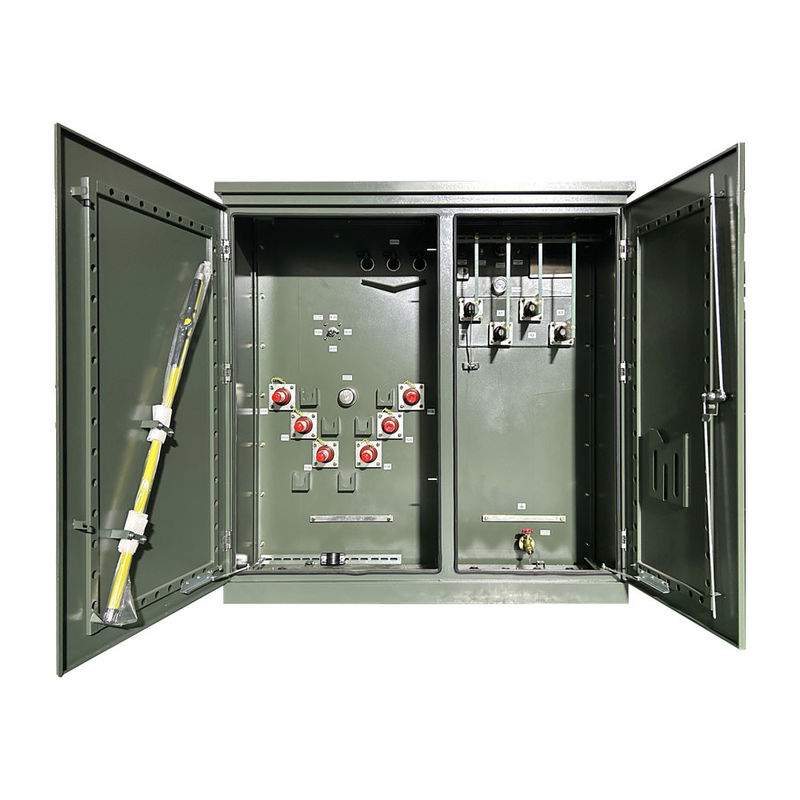

− Live front construction & dead front construction
− Steel HV/LV compartment barrier
Specification
| Three Phase Pad Mounted Transformer | ||||
|
Rated Power (KVA) |
High Voltage (KV) |
Low Voltage (V) |
Loss (W) | |
|
No-load Loss (W) |
On-load Loss (W) |
|||
| 75KVA | 24.94/14.4kV 12.47/7.2kV 34.5KV/ 19.92KV/ 13.8KV/ 13.2KV/ or others |
120/240V 480Y/ 277V 600Y/ 347V |
180 | 1250 |
| 112.5KVA | 200 | 1500 | ||
| 150KVA | 280 | 2200 | ||
| 225KVA | 400 | 3050 | ||
| 300KVA | 480 | 3650 | ||
| 500KVA | 680 | 5100 | ||
| 750KVA | 980 | 7500 | ||
| 1000KVA | 1150 | 10300 | ||
| 1500KVA | 1640 | 14500 | ||
| 2000KVA | 2160 | 20645 | ||
| 2500KVA | 2680 | 23786 | ||
| 3000KVA | 3300 | 25300 | ||
| 3750KVA | 4125 | 27875 | ||
| 5000KVA | 5200 | 30000 | ||
Technical drawings
Accessories
Production process
FAQ
1. Q: Can I have a sample order?
A: Yes, we welcome sample order to test and check quality.
2. Q: What is the lead time?
A: Mass production time 15-25 days.
3. Q: How long is the warranty?
A: 24 monthes from B/L. If there are any accessory problems,just provide the photos of damaged accessory,then we will provide free service. According to the number of products,we will provide easily damaged accessories for free. we also can provide technical support if you need.
4. Q: Is OEM/ODM available?
A: Yes,it is! We are manufacturer with our own R&D team, we can customize products according to customer's drawing or requirements.
Customized services:
a. Customized color and special function.
b. Customized box.
c. Print customer's logo.
d. Your other ideas about product, we can help you design and put them into production. The above customized services must be confirmed before production.
5. Q: How to control the products quality?
A: Our company owns the core technology ,all kinds of products hold CE certificate. We have professional engineers. Workers are strictly required to make products according to the drawings. Each process has technical instructors.The QC supervisors will regularly inspect the production. We will do products performance tests during production, and comprehensive quality tests when the products is completed.
|
