Three Phase Dry Type Transformer
>
1500KVA 3 Phase Dry Type Transformer C Class UL Certification Low Voltage 480V To 260V

1500KVA 3 Phase Dry Type Transformer C Class UL Certification Low Voltage 480V To 260V

Brand Name: WINLEY
Model Number: SG-1500KVA
MOQ: 1unit
Price: $500~$60000/Unit
Packaging Details: Plywood case
Payment Terms: T/T
Detail Information
Place of Origin:
CHINA
Certification:
ISO,CE,UL/cUL
Name:
Three-phase Dry Type Transformer
Rated Power:
1500KVA
Insulation Class:
C
Primary Voltage:
480V
Secondary Voltage:
450Y/260V
Temperature Rise:
<150℃
Enclosure Material:
NEMA 3R
Cooling Method:
Air Cooling
Supply Ability:
1000units/month
Highlight:

260V Dry type transformer

,

3 Phase Dry type transformer

,

1500KVA Dry type transformer

Product Description

1500KVA 3 phase Dry type transformer C Class UL Certification Low Voltage 480V To 260V





Performance Characteristic



1. C-class insulation (one level higher than H-class insulation), excellent heat dissipation conditions, great overload capacity, 130% overload without the need to put in a fan can be long-term safe and stable operation; under IP45 conditions, no forced air cooling is required and it can still operate safely and stably for a long time.
2. Extremely high safety and flame retardant performance, long-term combustion at 800℃ high temperature without smoke generation.
3. Strong ability to withstand thermal shock (can be fully loaded immediately at -50℃).
4. 100% waterproof sealing.
5. No partial discharge.
6. Dirt and water repellent, can withstand acid and alkali corrosion and fungal or mold invasion.



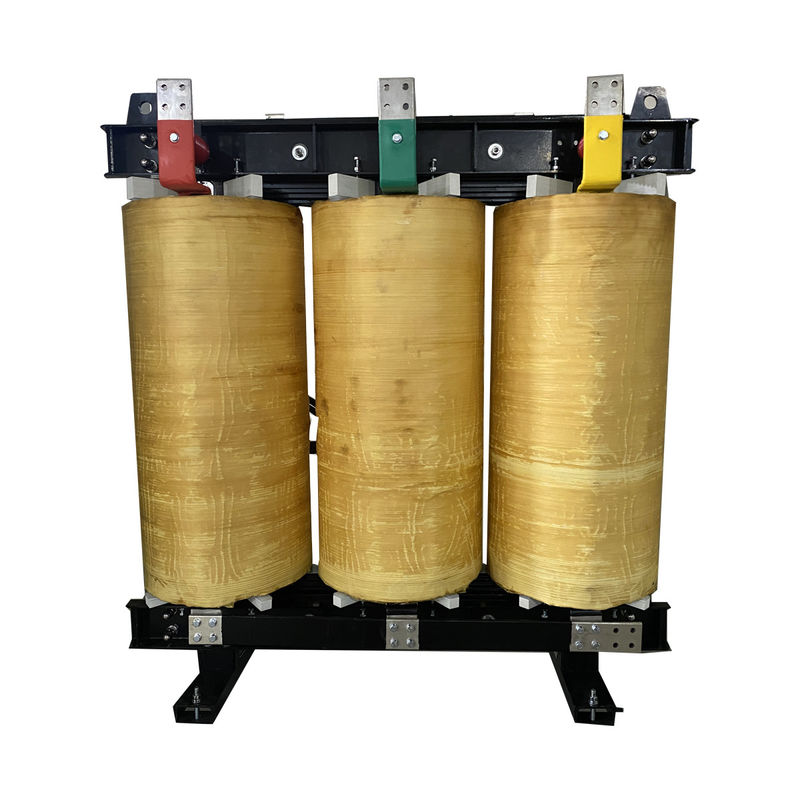

1500KVA 3 Phase Dry Type Transformer  C Class UL Certification Low Voltage 480V To 260V 0



2.Specification


No. Description
1 Model SG-1500KVA
2 Name Three-phase Dry type transformer
3 Rated power SG-1500KVA
4 Input voltage 480V Delta
5 Input current 1804A
6 Output voltage 450Y/260V
7 Output current 1924.5A
8 Phase Three
9 Frequency 60Hz
10 Insulation class C
11 Withstand voltage test

Primary to secondary 2500V/60S

Primary to grounding 2500V/60S

Secondary to grounding 2500V/60S

12 Insulation resistance

Primary to secondary >100MΩ

Primary to grounding >100MΩ

Secondary to grounding >100MΩ

13 Induced withstand voltage 125Hz/Double voltage/min
14 Grounding resistance 25A<100mΩ
15 Cooling method Air cooling
16 Ratio <3%
17 Temperature rise <150℃
18 Overall dimensions(AxBxC) 1800x1000x2200mm
19 Weight 3600Kg



Drawing



1500KVA 3 Phase Dry Type Transformer  C Class UL Certification Low Voltage 480V To 260V 1



Specification



Model
(kva)
Primary Voltage Secondary Voltage Coupling group tab Shape dimension Mounting dimension   K*J The box dimension
Bmax Dmax±5 Emax A C±5 Bmax Dmax±5 Emax
SG-10KVA 660
400
380
200
380
220
110
36
Yyn0
Y/d
D/y
D/d
360 180 305 215 140 10*20 450 360 480
SG-15KVA 360 200 335 215 155 10*20 450 360 480
SG-20KVA 420 210 350 250 170 10*20 490 400 540
SG-30KVA 420 230 380 250 190 10*20 490 400 540
SG-50KVA 680 350 550 420 220 10*20 800 510 840
SG-80KVA 750 400 620 480 250 10*20 850 510 840
SG-100KVA 780 420 650 500 250 10*20 900 550 890
SG-300KVA 180 95 185 100 75 6*14
SG-500KVA 180 95 185 100 75 6*14
SG-1000KVA 180 110 185 100 90 6*14
SG-2000KVA 230 125 205 130 100 9*16
SG-3000KVA 240 145 215 130 120 9*16
SG-4000KVA 240 155 235 130 130 9*16
SG-5000KVA 320 160 255 180 115 10*20 400 330 480
SG-6000KVA 300 165 280 180 140 10*20 400 330 480


Production process


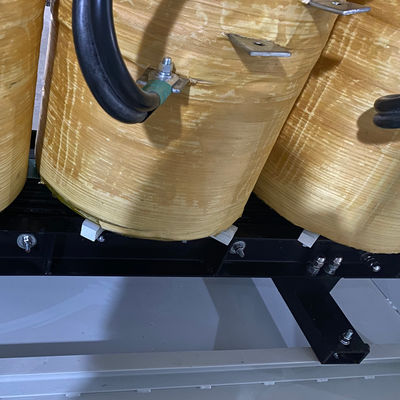

1500KVA 3 Phase Dry Type Transformer  C Class UL Certification Low Voltage 480V To 260V 2

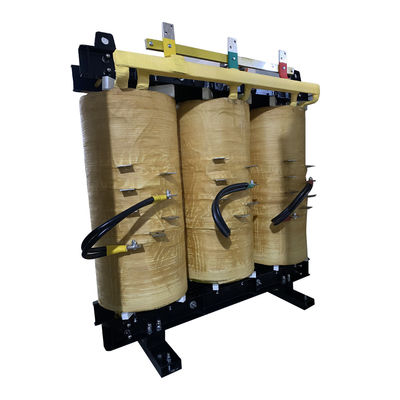

1500KVA 3 Phase Dry Type Transformer  C Class UL Certification Low Voltage 480V To 260V 3
1500KVA 3 Phase Dry Type Transformer  C Class UL Certification Low Voltage 480V To 260V 4

FAQ



1. Q: Can I have a sample order?

A: Yes, we welcome sample order to test and check quality.

2. Q: What is the lead time?

A: Sample time 3-7 days, we usually ship by DHL, UPS, FedEx,etc. Mass production time 7-25 days.

3. Q: How long is the warranty?

A: 24 monthes from B/L. If there are any accessory problems,just provide the photos of damaged accessory,then we will provide free service. According to the number of products,we will provide easily damaged accessories for free. we also can provide technical support if you need.

4. Q: Is OEM/ODM available?

A: Yes,it is! We are manufacturer with our own R&D team, we can customize products according to customer's drawing or requirements.

Customized services:

a. Customized color and special function.

b. Customized box.

c. Print customer's logo(MOQ:≥10pcs).

d. Your other ideas about product, we can help you design and put them into production. The above customized services must be confirmed before production.

5. Q: How to control the products quality?

A: Our company owns the core technology ,all kinds of products hold CE certificate. We have professional engineers. Workers are strictly required to make products according to the drawings. Each process has technical instructors.The QC supervisors will regularly inspect the production. We will do products performance tests during production, and comprehensive quality tests when the products is completed.
