750kva 3 Phase Pad Mounted Transformer 8320V To 480Y UL Certification Doe2016 ANSI IEEE standards

Brand Name:	WINLEY
Model Number:	S-750/8.3
MOQ:	1unit
Price:	$5000-$150000
Packaging Details:	Plywood case
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

UL,cUL,CE,ISO

Phase:

Three Phase

Capacity:

750 KVA

Primary Voltage:

8320V

Secondary Voltage:

480Y/277

Frequency:

60 HZ

Temperature Rise:

Cooling Class:

KNAN; Self-Cooled

Impedance (Typical):

5.0-7.5%

Supply Ability:

1000set/month

Highlight:

750kva Pad Mounted Transformer

UL Certification Pad Mounted Transformer

3 Phase Pad Mounted Transformer

Product Description

750kva 3 Phase Pad Mounted Transformer 8320V To 480Y UL Certification Doe2016 ANSI IEEE standards

Primary Voltage Ratings: 12.47kV or others
Secondary Voltage Ratings: 208Y/120V or others
H.V. TAP RANGE: ±2×2.5% or others
CONNECTION TYPE: Dyn11/YNyn0 or others
TYPE: Loop feed/Radial feed
BIL: 30-150 kV
Standards: IEEE, CSA, DOE
Power Rating: 750 kVA
Certificate: UL, cUL, CSA, ISO

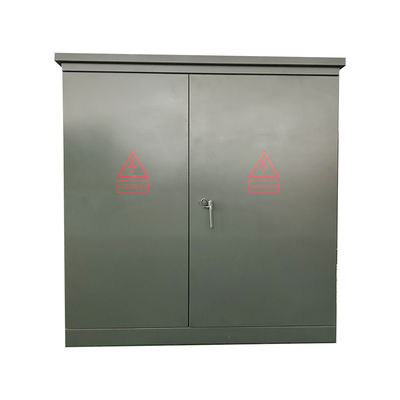

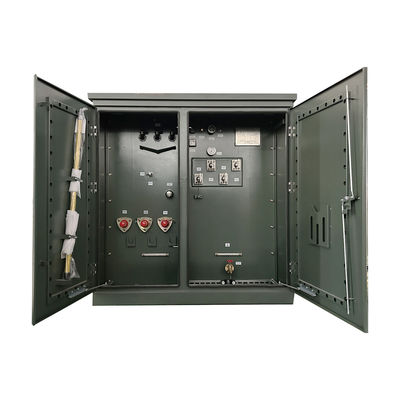

750kva 3 Phase Pad Mounted Transformer 8320V To 480Y UL Certification Doe2016 ANSI IEEE standards 0

Main data

Transformer Type	Pad Mounted, Compartmental-Type
Transformer Feed Type	Radial Feed
Phase	Three Phase
Capacity	750 KVA
Vector Group	DYN1
Primary Voltage	8320V
Secondary Voltage	480Y/277
Frequency	60 Hz
Temperature Rise	65°C
Cooling Class	KNAN
Impedance (Typical)	5.0-7.5% Typical
Efficiency Standard(s)	DOE 2016 , ANSI/IEEE
Winding Material	Copper
Ambient Temperature Rating	40°C
Sound Level	58 dBA
Elevation Rating	3300ft (1000 meters) Above Sea Level
Core Material	Grain Oriented Steel
Tank Material	Coated Steel
Dimensions	88''-W x 56''-D x 63''-H
Weight	6400 lb
Efficiency %	99.25%
No Load Loss (in watts))	+/- 980W
Full Load Loss (in watts) at 100%	+/- 6,450W

The 750 kVA pad mounted transformer depicted is meticulously tailored for the US market, boasting a loop feed layout that impeccably aligns with IEEE and DOE standards. Operating at a primary voltage of 8320V and a secondary voltage of 480GrdY/277V, .With a temperature rise capped at 65°C and employing the ONAN cooling method, it utilizes mineral oil as the insulating liquid. Backed by a UL certificate, this transformer ensures utmost safety and reliability.

STRUCTURE

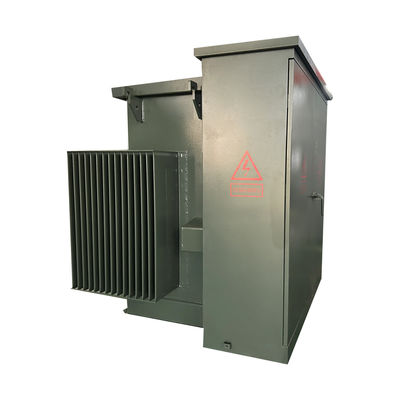

750kva 3 Phase Pad Mounted Transformer 8320V To 480Y UL Certification Doe2016 ANSI IEEE standards 1

Technical drawings

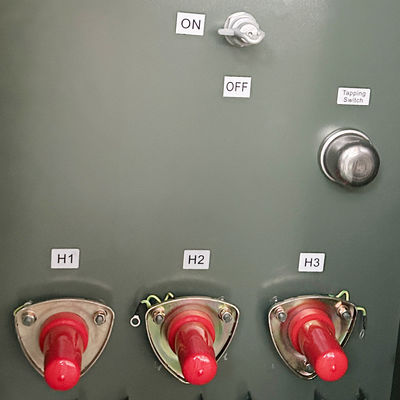

750kva 3 Phase Pad Mounted Transformer 8320V To 480Y UL Certification Doe2016 ANSI IEEE standards 2

Specification

PRODUCT SPECIFICATION
Rated Power (KVA)	High Voltage (KV)	Low Voltage (V)	No-load Loss (W)	On-load Loss (W)	Height (mm)	Depth (mm)	Width (mm)	Weight (kg)
75	34.5KV 4.160KV 12.47KV 13.2KV 13.8KV 24940GrdY/14400 1247Grdy/7200 4160GrdY/2400 or others	277V 347V 480V 600V 120/240V 208GrdY/120 415GrdY/240 480GrdY/277 600Y/347	180	1250	1430	910	1930	645
150			280	2200	1530	980	1510	989
300			480	3650	1680	1080	1660	1415
500			680	5100	1790	1160	1810	1905
750			980	7500	2030	1300	2030	2755
1000			1150	10300	1854	1549	1651	3235
1500			1640	14500	2150	1570	2210	5835
2000			2160	20645	2220	1600	2380	6430
2500			2680	23786	2330	1650	3070	8865
3000			3300	30300	2460	1850	3260	11300
3735			4125	37875	2680	2060	4080	14400

Product Photos

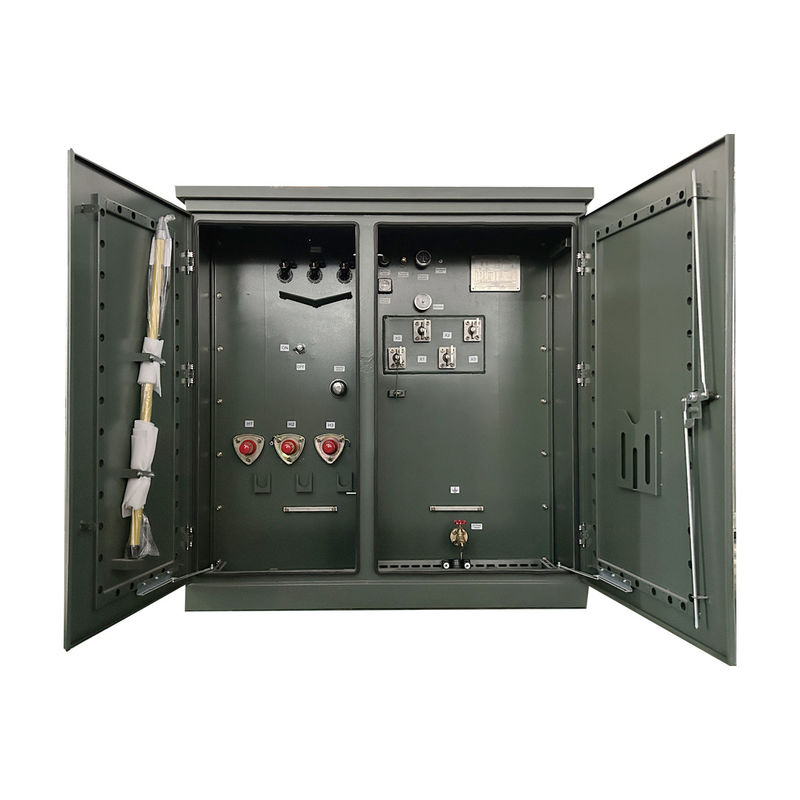

750kva 3 Phase Pad Mounted Transformer 8320V To 480Y UL Certification Doe2016 ANSI IEEE standards 3

Production process

FAQ

1. Q: Can I have a sample order?

A: Yes, we welcome sample order to test and check quality.

2. Q: What is the lead time?

A: Mass production time 15-25 days.

3. Q: How long is the warranty?

A: 24 monthes from B/L. If there are any accessory problems,just provide the photos of damaged accessory,then we will provide free service. According to the number of products,we will provide easily damaged accessories for free. we also can provide technical support if you need.

4. Q: Is OEM/ODM available?

A: Yes,it is! We are manufacturer with our own R&D team, we can customize products according to customer's drawing or requirements.

Customized services:

a. Customized color and special function.

b. Customized box.

c. Print customer's logo.

d. Your other ideas about product, we can help you design and put them into production. The above customized services must be confirmed before production.

5. Q: How to control the products quality?

A: Our company owns the core technology ,all kinds of products hold CE certificate. We have professional engineers. Workers are strictly required to make products according to the drawings. Each process has technical instructors.The QC supervisors will regularly inspect the production. We will do products performance tests during production, and comprehensive quality tests when the products is completed.
