| Place of Origin: | CHINA |
|---|---|
| Brand Name: | WINLEY |
| Certification: | ISO,CE |
| Model Number: | SG-100KVA |
| Minimum Order Quantity: | 1unit |
| Price: | $500~$60000/Unit |
| Packaging Details: | Plywood case |
| Delivery Time: | 10-15days |
| Payment Terms: | T/T |
| Supply Ability: | 1000units/month |
| Phase: | THREE | Frequency: | 60 |
|---|---|---|---|
| Type: | Step Down | Primary Volt: | 480V |
| Secondary Voltage: | 13800V | Insulation Class: | H |
| Temperature Rise: | 125'C | Cooling Method: | Air Cooling |
| High Light: | 100KVA Three Phase Dry Type Transformer,13.8KV Three Phase Dry Type Transformer |
||

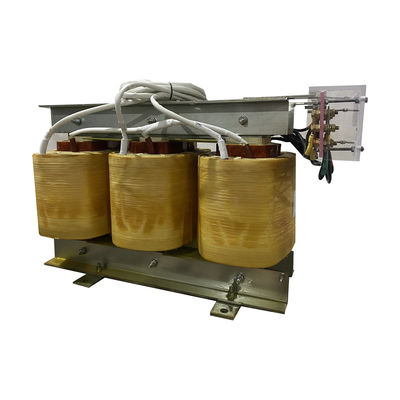

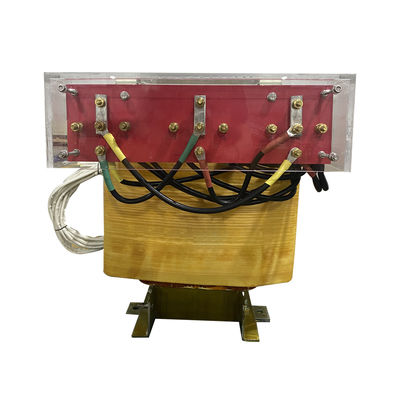

100KVA Three Phase High Votage Dry Type plate Transformer 480V To 13.8KV H Class
Summary
The insulation scheme of H-class three-phase dry-type transformers is designed with 180℃ H-class materials, and is made of H-class solvent-free insulating paint vacuum pressure impregnation and high-temperature curing treatment, with extremely good electrical and mechanical properties.
2.Specification
| Product Name | Three Phase High Votage Dry Type plate Transforme |
| Product Model | SG-100KVA |
| Winding Material | Enameled copper wire |
| Capacity | 100KVA |
| Input Voltage | 480V |
| Output Voltage | 13800V |
| Frequency | 60Hz |
| Connection Type | DYN1 |
| Insulation Level | H |
| Enclosures Protection Level | IP00 |
| Induction Withstand Voltage Test | 960V/124.5Hz 60s/1.5A |
| Cooling Method | Natural or air cooling |
| Temperature Rise | ≤125℃ |
| Transformation Ratio | <3% |
| Air Carrying Current | <3% |
| Impedance Voltage | about 7% |
| Total Losses | 2700W |
| Efficiency | 80%--99% |
| Operating Temperature | -15℃～40℃ (40℃, 90%R.H., 56days) |
| Storage Temperature | -25℃～100℃(40℃, 90%R.H., 56days) |
| Certificate | CE,ISO |
| The technical parameter for reference only, for exactly technical information, please feel free to contact us! | |
