Three Phase Pad Mounted Transformer

500kva Three Phase Pad Mounted Transformer Power 12000V To 208Y 304 SS NEMA 3R Radial Feed

All Category

Three Phase Isolation Transformer

Three Phase Pad Mounted Transformer

Single Phase Pad Mounted Transformer

Industrial Control Transformer

Single Phase Control Transformer

Toroidal Isolation Transformer

Three Phase Dry Type Transformer

Three Phase Reactor

Mr. Steven

steven@winley-electric.com

86-18650108051

Contact Now

500kva Three Phase Pad Mounted Transformer Power 12000V To 208Y 304 SS NEMA 3R Radial Feed

Brand Name:	WINLEY
Model Number:	S-500/12
MOQ:	1unit
Price:	$5000-$150000
Packaging Details:	Plywood case
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

UL/cUL,CE,ISO

Phase:

Three Phase

Capacity:

500KVA

Primary Voltage:

12000V

Secondary Voltage:

208Y/120V

Vector Group:

Temperature Rise:

Efficiency:

Meets DOE 2016 Standard

Cooling Class:

Supply Ability:

1000set/month

Highlight:

500kva Pad Mounted Transformer

12000V Pad Mounted Transformer

208Y Pad Mounted Transformer

Product Description

500kva Three Phase Pad Mounted Transformer Power 12000V To 208Y 304 SS NEMA 3R Radial Feed

WINLEY ELECTRIC specialize in the production of three phase pad mounted transformers. Our products have obtained UL/cUL certification comply with ANSI, IEEE, DOE, CSA and other standards. The rated power is usually 75kva to 5500kVA, and the voltage can reach 34.5 kV. service.

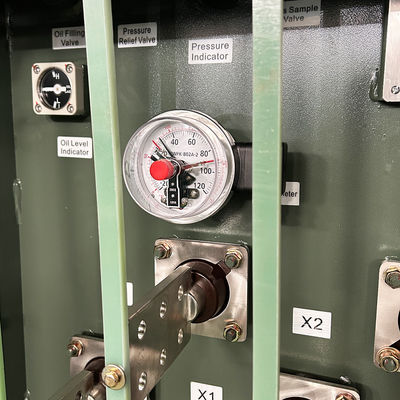

500kva Three Phase Pad Mounted Transformer Power 12000V To 208Y 304 SS NEMA 3R Radial Feed 0

structure

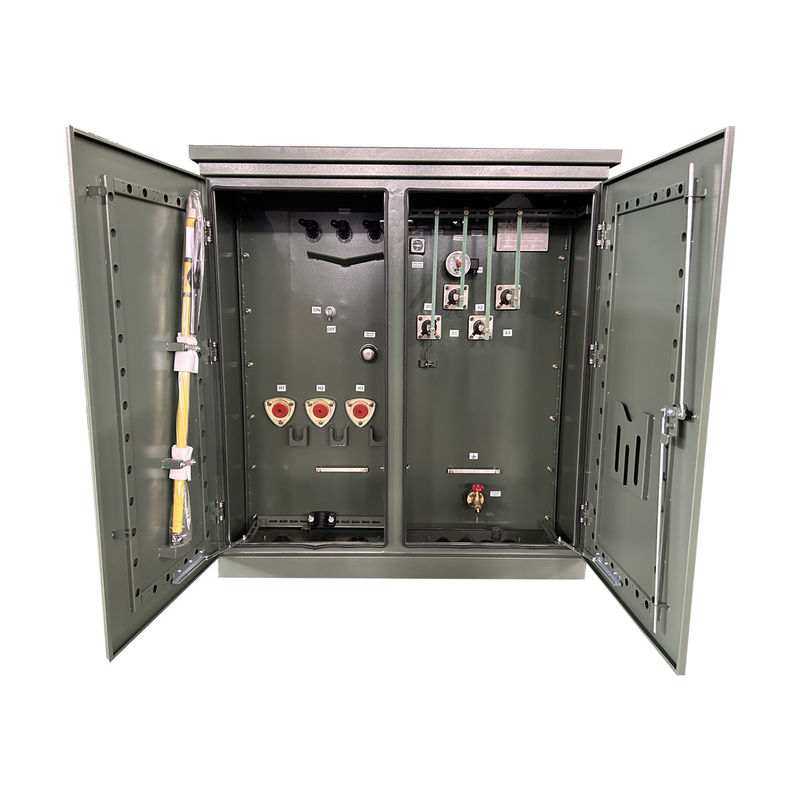

500kva Three Phase Pad Mounted Transformer Power 12000V To 208Y 304 SS NEMA 3R Radial Feed 1

500kva Three Phase Pad Mounted Transformer Power 12000V To 208Y 304 SS NEMA 3R Radial Feed 2

Main data

Phase	Three Phase
Capacity	500 kVA
Primary Voltage	12000V Delta
Secondary Voltage	208Y/120 Wye-N
Frequency	60 Hz
Temperature Rise	65°C
Efficiency	Meets DOE 2016 Standard
Cooling Class	ONAN
Front	Dead-Front
Feed	Radial
Winding Material	Copper
Cabinet Material	304 Stainless Steel
Enclosure Rating	NEMA 3R Weatherproof

Performance

1.pad-mounted transformers are made in power ratings up to 10000 kVA.High voltage up to 34.5 kV.

2.pad mounted transformer is designde and tested in accordance with standards including CSA, IEEE c.57, and DOE as applicable.

3.The pad mounted transformers are oil-filled and have a tamper-resistant design. The transformer is divided into two parts, the front cabin and the rear cabin.

Specification

Three Phase Pad Mounted Transformer
Rated Power (KVA)	High Voltage (KV)	Low Voltage (V)	Loss (W)
Rated Power (KVA)	High Voltage (KV)	Low Voltage (V)	No-load Loss (W)	On-load Loss (W)
75KVA	24.94/14.4kV 12.47/7.2kV 34.5KV/ 19.92KV/ 13.8KV/ 13.2KV/ or others	120/240V 480Y/ 277V 600Y/ 347V	180	1250
112.5KVA			200	1500
150KVA			280	2200
225KVA			400	3050
300KVA			480	3650
500KVA			680	5100
750KVA			980	7500
1000KVA			1150	10300
1500KVA			1640	14500
2000KVA			2160	20645
2500KVA			2680	23786
3000KVA			3300	25300
3750KVA			4125	27875
5000KVA			5200	30000

Technical drawings

500kva Three Phase Pad Mounted Transformer Power 12000V To 208Y 304 SS NEMA 3R Radial Feed 3

FAQ

1. Q: Can I have a sample order?

A: Yes, we welcome sample order to test and check quality.

2. Q: What is the lead time?

A: Mass production time 15-25 days.

3. Q: How long is the warranty?

A: 24 monthes from B/L. If there are any accessory problems,just provide the photos of damaged accessory,then we will provide free service. According to the number of products,we will provide easily damaged accessories for free. we also can provide technical support if you need.

4. Q: Is OEM/ODM available?

A: Yes,it is! We are manufacturer with our own R&D team, we can customize products according to customer's drawing or requirements.

Customized services:

a. Customized color and special function.

b. Customized box.

c. Print customer's logo.

d. Your other ideas about product, we can help you design and put them into production. The above customized services must be confirmed before production.

5. Q: How to control the products quality?

A: Our company owns the core technology ,all kinds of products hold CE certificate. We have professional engineers. Workers are strictly required to make products according to the drawings. Each process has technical instructors.The QC supervisors will regularly inspect the production. We will do products performance tests during production, and comprehensive quality tests when the products is completed.
