3 Phase Pad Mounted Distribution Transformer 3750 Kva 13.2KV Dead Front Loop Feed

Brand Name:	WINLEY
Model Number:	S-3750/13.2
MOQ:	1unit
Price:	$5000-$150000
Packaging Details:	Plywood case
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

UL/cUL,CE,ISO

Phase:

Three Phase

Capacity:

3750KVA

Primary Voltage:

13.2KV

Secondary Voltage:

480Y/277

Vector Group:

YnYn0

Efficiency:

99.00%

Efficiency Standard(s):

DOE 2016

Cooling Class:

KNAN; Self-Cooled

Supply Ability:

1000set/month

Highlight:

3750 Kva Pad Mounted Distribution Transformer

Dead Front Pad Mounted Distribution Transformer

13.2KV Pad Mounted Distribution Transformer

Product Description

3 Phase Pad Mounted Distribution Transformer 3750 Kva 13.2KV Dead Front Loop Feed

WINLEY specialize in the production of three phase pad mounted transformers. Our products have obtained UL/cUL certification comply with ANSI, IEEE, DOE, CSA and other standards. The rated power is usually 75kva to 5500kVA, and the voltage can reach 34.5 kV.

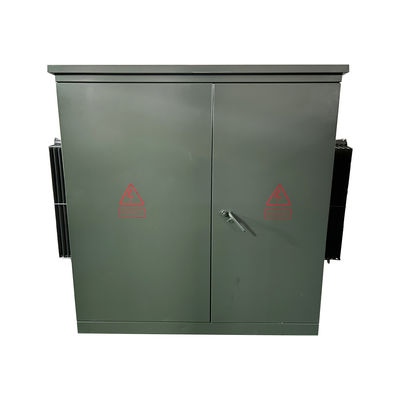

3 Phase Pad Mounted Distribution Transformer 3750 Kva 13.2KV Dead Front Loop Feed 0

Main data

Transformer Type	Pad Mounted, Compartmental-Type
Transformer Configuration	Liquid Filled Pad Mounted
Transformer Feed Type	Loop Feed
Operation	Step-Down Operation (Not Approved for Step-Up)
Phase	Three Phase
Capacity	3.75 MVA (3750 KVA)
Vector Group	YnYn0
Primary Voltage	13200V
Secondary Voltage	480Y/277
Frequency	60 Hz
Temperature Rise	65°C
Insulation Rating	Class E Insulation - 120°C, 248°F
Cooling Class	KNAN; Self-Cooled
Impedance (Typical)	5.0-7.5%
Efficiency Standard(s)	Meets DOE 2016 Standards, Meets CSA Standards Meets ANSI/IEEE Standards
K-Factor Rating (Harmonic Mitigation)	K-1 (Standard)
Winding Material	Copper
Ambient Temperature Rating	40°C
Ambient Operating Temperature Range	-40°C to +40°C (-50°F to +104°F)
Sound Level	64 dBA
Elevation (Altitude)	3300ft (1000 meters) Above Sea Level

structure

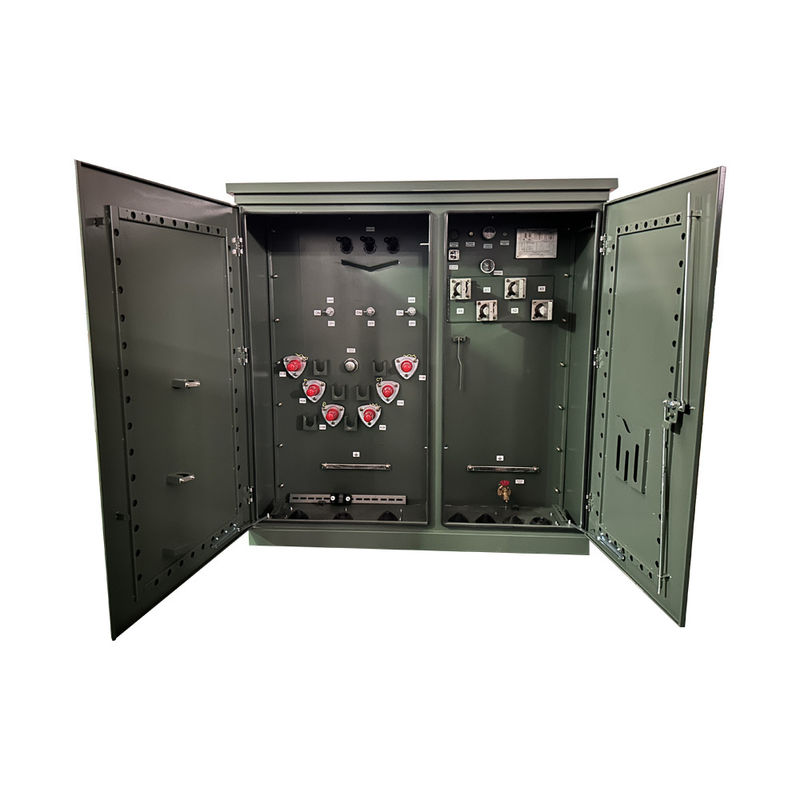

3 Phase Pad Mounted Distribution Transformer 3750 Kva 13.2KV Dead Front Loop Feed 1

Standard Feature

− Mild steel, optional stainless steel tank
− Three-point latching door for security
− Removable sill for easy installation
−Stainless steel cabinet hinges and mounting studs
Bolted-on cabinet with removable sill having the following depths:
19"dedp for 300kva through 750 kva
22"deep for 1000kva through 1500 kva
24"deep for 2000kva through 3750kva
30"deep for 5000kva through 7500kva

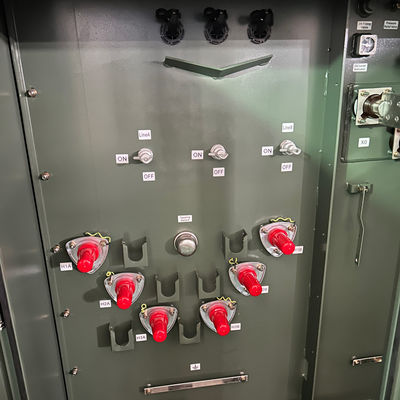

− Live front construction & dead front construction
− Steel HV/LV compartment barrier
− Oil drain plug for 500 kVA and below
− 1” drain valve with sampler for 750 kVA and above

Specification

Three Phase Pad Mounted Transformer
Rated Power (KVA)	High Voltage (KV)	Low Voltage (V)	Loss (W)
Rated Power (KVA)	High Voltage (KV)	Low Voltage (V)	No-load Loss (W)	On-load Loss (W)
75KVA	24.94/14.4kV 12.47/7.2kV 34.5KV/ 19.92KV/ 13.8KV/ 13.2KV/ or others	120/240V 480Y/ 277V 600Y/ 347V	180	1250
112.5KVA			200	1500
150KVA			280	2200
225KVA			400	3050
300KVA			480	3650
500KVA			680	5100
750KVA			980	7500
1000KVA			1150	10300
1500KVA			1640	14500
2000KVA			2160	20645
2500KVA			2680	23786
3000KVA			3300	25300
3750KVA			4125	27875
5000KVA			5200	30000

Technical drawings

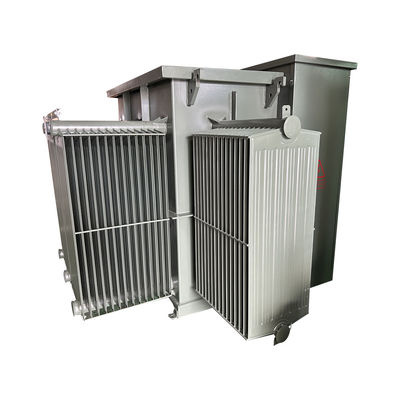

3 Phase Pad Mounted Distribution Transformer 3750 Kva 13.2KV Dead Front Loop Feed 2

Production process

FAQ

1. Q: Can I have a sample order?

A: Yes, we welcome sample order to test and check quality.

2. Q: What is the lead time?

A: Mass production time 15-25 days.

3. Q: How long is the warranty?

A: 24 monthes from B/L. If there are any accessory problems,just provide the photos of damaged accessory,then we will provide free service. According to the number of products,we will provide easily damaged accessories for free. we also can provide technical support if you need.

4. Q: Is OEM/ODM available?

A: Yes,it is! We are manufacturer with our own R&D team, we can customize products according to customer's drawing or requirements.

Customized services:

a. Customized color and special function.

b. Customized box.

c. Print customer's logo.

d. Your other ideas about product, we can help you design and put them into production. The above customized services must be confirmed before production.

5. Q: How to control the products quality?

A: Our company owns the core technology ,all kinds of products hold CE certificate. We have professional engineers. Workers are strictly required to make products according to the drawings. Each process has technical instructors.The QC supervisors will regularly inspect the production. We will do products performance tests during production, and comprehensive quality tests when the products is completed.
