| Place of Origin: | CHINA |
|---|---|
| Brand Name: | WINLEY |
| Certification: | CE,ISO |
| Model Number: | SG-500/6 |
| Minimum Order Quantity: | 1unit |
| Price: | $1000-$10000 |
| Packaging Details: | Plywood case |
| Delivery Time: | 30days |
| Payment Terms: | T/T |
| Supply Ability: | 500set/month |
| Model: | SG-500KVA | Input Voltage: | 208Y/120V |
|---|---|---|---|
| Output Voltage: | 600Y/347V | Phase: | Three |
| Frequency: | 60Hz | Insulation Class: | C |
| Cooling Method: | Air Cooling | Temperature Rise: | <150℃ |
| High Light: | 500k Three Phase Dry Type Transformer,347V Three Phase Dry Type Transformer |
||

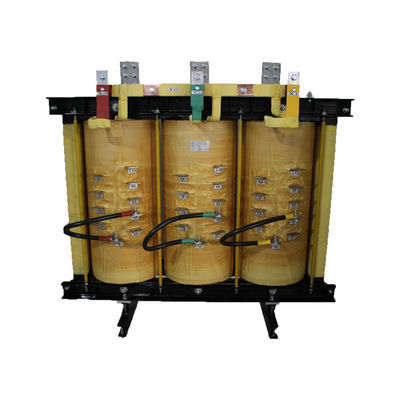

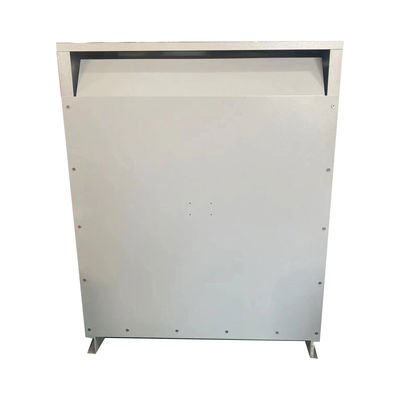

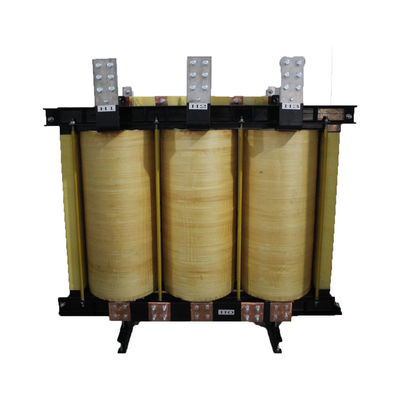

C Class Insulation 500k Three phase Dry type transformer Step up 208Y/120V to 600Y/347V
Summarization
The main insulation of the C-class insulation three-phase non-encapsulated dry-type transformer is made of C-class (heat-resistant temperature 220℃) Nomex paper, which is cured by VPI vacuum pressure impregnation and high temperature. It has extremely high flame retardancy, heat dissipation performance and overload capacity. It is safe, reliable, environmentally friendly and energy-saving. It is suitable for environments with high fire protection requirements, small sites, and large load fluctuations.
Main data
| No. | Description | |
| 1 | Model | SG-500KVA |
| 2 | Name | Three-phase Dry type transformer |
| 3 | Rated power | SG-500KVA |
| 4 | Input voltage | 208Y/120V |
| 5 | Input current | 1387.9A |
| 6 | Output voltage | 600Y/347V with 2x2.5% FCAN and 6x2.5% FCBN |
| 7 | Output current | 481.1A |
| 8 | Phase | Three |
| 9 | Frequency | 60Hz |
| 10 | Insulation class | C |
| 11 | Withstand voltage test |
Primary to secondary 2500V/60S Primary to grounding 2500V/60S Secondary to grounding 2500V/60S |
| 12 | Insulation resistance |
Primary to grounding >100MΩ Secondary to grounding >100MΩ |
| 13 | Induced withstand voltage | 125Hz/Double voltage/min |
| 14 | Grounding resistance | 25A<100mΩ |
| 15 | Cooling method | Air cooling |
| 16 | Ratio | <3% |
| 17 | Temperature rise | <150℃ |
| 18 | Overall dimensions(AxBxC) | 63’x33.46’x78.74’ |
| 19 | Weight | 3747.8Lbs |
Performance Characteristic
1. C-class insulation (one level higher than H-class insulation), excellent heat dissipation conditions, great overload capacity, 130% overload without the need to put in a fan can be long-term safe and stable operation; under IP45 conditions, no forced air cooling is required and it can still operate safely and stably for a long time.
2. Extremely high safety and flame retardant performance, long-term combustion at 800℃ high temperature without smoke generation.
3. Strong ability to withstand thermal shock (can be fully loaded immediately at -50℃).
4. 100% waterproof sealing.
5. No partial discharge.
6. Dirt and water repellent, can withstand acid and alkali corrosion and fungal or mold invasion.
7. Environmental protection concept - low noise, no harmful gas, no pollution to the environment, easy to decompose and collect after life, protect the environment, in line with the trend.
Drawing
Production process
FAQ
1. Q: Can I have a sample order?
A: Yes, we welcome sample order to test and check quality.
2. Q: What is the lead time?
A: Sample time 3-7 days, we usually ship by DHL, UPS, FedEx,etc. Mass production time 7-25 days.
3. Q: How long is the warranty?
A: 24 monthes from B/L. If there are any accessory problems,just provide the photos of damaged accessory,then we will provide free service. According to the number of products,we will provide easily damaged accessories for free. we also can provide technical support if you need.
4. Q: Is OEM/ODM available?
A: Yes,it is! We are manufacturer with our own R&D team, we can customize products according to customer's drawing or requirements.
Customized services:
a. Customized color and special function.
b. Customized box.
c. Print customer's logo(MOQ:≥10pcs).
d. Your other ideas about product, we can help you design and put them into production. The above customized services must be confirmed before production.
5. Q: How to control the products quality?
A: Our company owns the core technology ,all kinds of products hold CE certificate. We have professional engineers. Workers are strictly required to make products according to the drawings. Each process has technical instructors.The QC supervisors will regularly inspect the production. We will do products performance tests during production, and comprehensive quality tests when the products is completed.
