500kva 3 Phase Pad Mounted Transformer Oil Filled 12470v To 480v Ansi Ieee Standards

Brand Name:	WINLEY
Model Number:	S-500/12.47
MOQ:	1unit
Price:	$5000-$150000
Packaging Details:	Plywood case
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

UL/cUL,CE,ISO

Phase:

Three Phase

Transformer Type:

Pad Mounted, Compartmental-Type

Primary Voltage:

12470GrdY/7200

Secondary Voltage:

480Y/277

Cooling Class:

ONAN; Self-Cooled

Frequency:

60 Hz

Temperature Rise:

Winding Material:

Opper

Supply Ability:

1000set/month

Highlight:

CSA Pad Mounted Transformer

300Kva Pad Mounted Transformer

DOE 2016 Pad Mounted Transformer

Product Description

500kva 3 Phase Pad Mounted Transformer Oil Filled 12470v To 480v Ansi Ieee Standards

The three phase pad mounted transformers we produce have obtained UL certification, with capacities ranging from 30 to 5500kVA and voltages up to 34.5kV. Our products are exported to North America the Philippines and other places in large quantities.

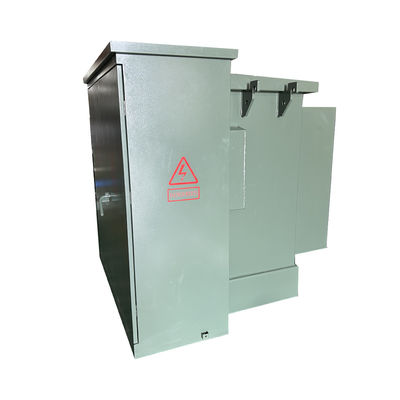

500kva 3 Phase Pad Mounted Transformer Oil Filled 12470v To 480v Ansi Ieee Standards 0

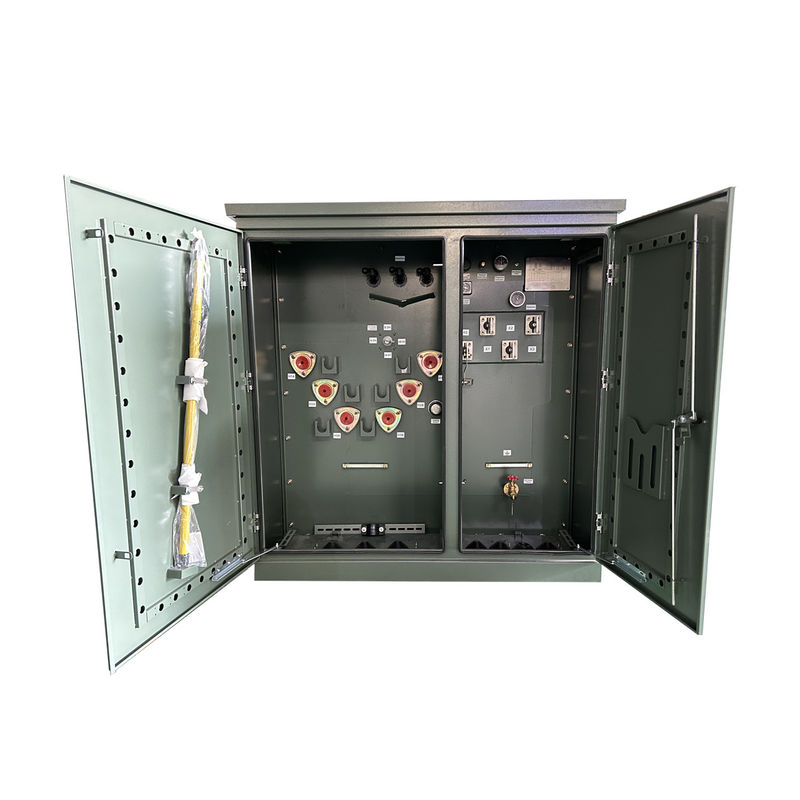

500kva 3 Phase Pad Mounted Transformer Oil Filled 12470v To 480v Ansi Ieee Standards 1

Performance Characteristic

Small size, compact structure.
Low loss, low noise, low temperature rise.
Strong load capacity, high short-circuit withstand capability.
Fully enclosed, fully insulated structure.
Flexible wiring methods.
Convenient operation, simple maintenance.

Technical drawings

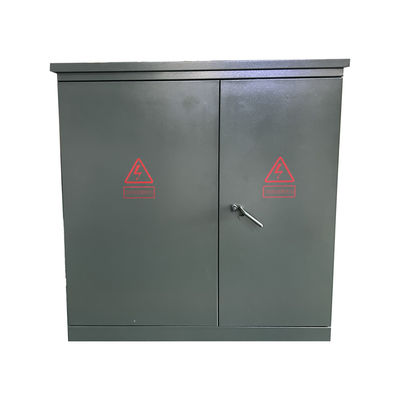

500kva 3 Phase Pad Mounted Transformer Oil Filled 12470v To 480v Ansi Ieee Standards 2

Main data

Phase	Three Phase
Capacity	500 KVA
Primary Voltage	12470GrdY/7200
Secondary Voltage	480Y/277
Frequency	60 Hz
Temperature Rise	65°C
Cooling Class	ONAN; Self-Cooled
Tap Changer	5-position Tap Changer
Winding Material	Copper
Ambient Temperature Rating	40°C
Sound Level	56 dBA
Dimensions	89''-W x 53''-D x 50''-H
Weight	4,650 lb
Efficiency %	99.15%
Based on transformer operating at 50% of nameplate base kVA.
Load Losses Based on 85°C Reference Temp.
No Load Loss (in watts))	+/- 698W
Full Load Loss (in watts) at 100%	+/- 4985W

Specification

PRODUCT SPECIFICATION
Rated Power (KVA)	High Voltage (KV)	Low Voltage (V)	No-load Loss (W)	On-load Loss (W)	Height (mm)	Depth (mm)	Width (mm)	Weight (kg)
75	34.5KV 4.160KV 12.47KV 13.2KV 13.8KV 24940GrdY/14400 1247Grdy/7200 4160GrdY/2400 or others	277V 347V 480V 600V 120/240V 208GrdY/120 415GrdY/240 480GrdY/277 600Y/347	180	1250	1430	910	1930	645
150			280	2200	1530	980	1510	989
300			480	3650	1680	1080	1660	1415
500			680	5100	1790	1160	1810	1905
750			980	7500	2030	1300	2030	2755
1000			1150	10300	1854	1549	1651	3235
1500			1640	14500	2150	1570	2210	5835
2000			2160	20645	2220	1600	2380	6430
2500			2680	23786	2330	1650	3070	8865
3000			3300	30300	2460	1850	3260	11300
3735			4125	37875	2680	2060	4080	14400

Production process

FAQ

1. Q: Can I have a sample order?

A: Yes, we welcome sample order to test and check quality.

2. Q: What is the lead time?

A: Mass production time 15-25 days.

3. Q: How long is the warranty?

A: 24 monthes from B/L. If there are any accessory problems,just provide the photos of damaged accessory,then we will provide free service. According to the number of products,we will provide easily damaged accessories for free. we also can provide technical support if you need.

4. Q: Is OEM/ODM available?

A: Yes,it is! We are manufacturer with our own R&D team, we can customize products according to customer's drawing or requirements.

Customized services:

a. Customized color and special function.

b. Customized box.

c. Print customer's logo.

d. Your other ideas about product, we can help you design and put them into production. The above customized services must be confirmed before production.

5. Q: How to control the products quality?

A: Our company owns the core technology ,all kinds of products hold CE certificate. We have professional engineers. Workers are strictly required to make products according to the drawings. Each process has technical instructors.The QC supervisors will regularly inspect the production. We will do products performance tests during production, and comprehensive quality tests when the products is completed.
