| Brand Name: | WINLEY |
| Model Number: | S-5000/35 |
| MOQ: | 1unit |
| Price: | $5000-$150000 |
| Packaging Details: | Plywood case |
| Payment Terms: | T/T |
3 phase pad mounted transformer sizes 3000Kva Step-Down 12000V to 630Y/364
summary
The three phase pad mounted transformer immerses the load switch and fuse on the high voltage side of the transformer with the core and windings of the transformer in the same oil tank, has the advantages of advanced structure, reliable performance, energy saving and consumption reduction, flexible use, strong adaptability, and economical advantages.
Main data
| Transformer Type | Pad Mounted, Compartmental-Type |
| Phase | Three Phase |
| Capacity | 3 MVA (3000 KVA) |
| Vector Group | DYN1 |
| Primary Voltage | 12000V |
| Primary Phasor | Delta |
| Secondary Voltage | 630Y/364 Grounded Wye |
| Frequency | 60 Hz |
| Temperature Rise | 65°C |
| Insulation Rating | Class E Insulation - 120°C, 248°F |
| Cooling Class | KNAN; Self-Cooled |
| Impedance | 5.0-7.5% Typical, Target 5.75% |
| Efficiency Standard(s) | Meets DOE 2016 Standards, Meets CSA Standards Meets ANSI/IEEE Standards |
| K-Factor Rating (Harmonic Mitigation) | K-1 (Standard) |
| Fluid (Oil) Capacity* | 330 Gallons |
| Winding Material | Copper |
| Ambient Temperature Rating | 40°C |
| Ambient Operating Temperature Range | -40°C to +40°C (-50°F to +104°F) |
| Sound Level | 63 dBA |
| Elevation (Altitude) | 3300ft (1000 meters) Above Sea Level |
| Core Material | Grain Oriented Steel |
| Tank Material | Coated Steel |
| Enclosure Rating | NEMA 3R Weatherproof Wiring Cabinet, Sealed Tank |
| Dimensions* | 90-W x 80-D x 83-H |
| Dry Weight (w/o Oil)* | 5,810 lb |

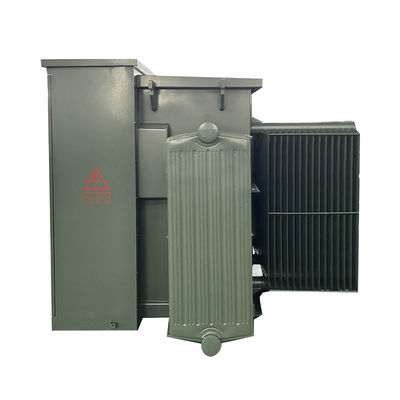

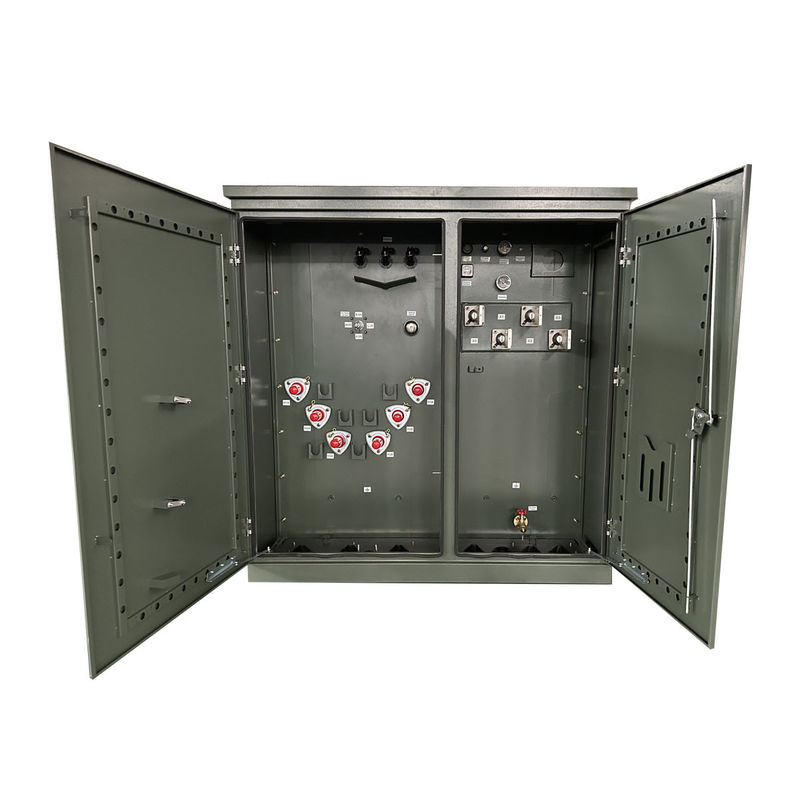

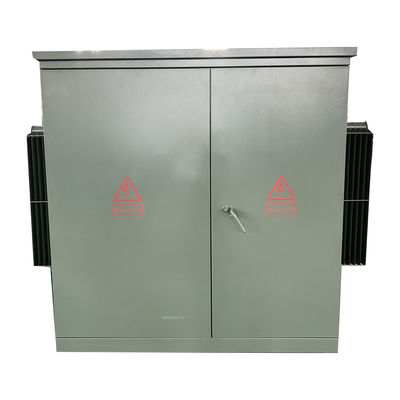

STRUCTURE
Technical drawings
Specification
| Three Phase Pad Mounted Transformer | ||||
| Rated Power (KVA) | High Voltage (KV) | Low Voltage (V) | Loss (W) | |
| No-load Loss (W) | On-load Loss (W) | |||
| 75KVA | 24.94/14.4kV 12.47/7.2kV 34.5KV/ 19.92KV/ 13.8KV/ 13.2KV/ or others |
120/240V 480Y/ 277V 600Y/ 347V |
180 | 1250 |
| 112.5KVA | 200 | 1500 | ||
| 150KVA | 280 | 2200 | ||
| 225KVA | 400 | 3050 | ||
| 300KVA | 480 | 3650 | ||
| 500KVA | 680 | 5100 | ||
| 750KVA | 980 | 7500 | ||
| 1000KVA | 1150 | 10300 | ||
| 1500KVA | 1640 | 14500 | ||
| 2000KVA | 2160 | 20645 | ||
| 2500KVA | 2680 | 23786 | ||
| 3000KVA | 3300 | 25300 | ||
| 3750KVA | 4125 | 27875 | ||
| 5000KVA | 5200 | 30000 |
||
Application
A padmount or pad-mounted transformer is a ground mounted electric power distribution transformer in a locked steel cabinet mounted on a concrete pad. Since all energized connection points are securely enclosed in a grounded metal housing, a padmount transformer can be installed in places that do not have room for a fenced enclosure.
Production process
FAQ
1. Q: Can I have a sample order?
A: Yes, we welcome sample order to test and check quality.
2. Q: What is the lead time?
A: Mass production time 15-25 days.
3. Q: How long is the warranty?
A: 24 monthes from B/L. If there are any accessory problems,just provide the photos of damaged accessory,then we will provide free service. According to the number of products,we will provide easily damaged accessories for free. we also can provide technical support if you need.
4. Q: Is OEM/ODM available?
A: Yes,it is! We are manufacturer with our own R&D team, we can customize products according to customer's drawing or requirements.
Customized services:
a. Customized color and special function.
b. Customized box.
c. Print customer's logo.
d. Your other ideas about product, we can help you design and put them into production. The above customized services must be confirmed before production.
5. Q: How to control the products quality?
A: Our company owns the core technology ,all kinds of products hold CE certificate. We have professional engineers. Workers are strictly required to make products according to the drawings. Each process has technical instructors.The QC supervisors will regularly inspect the production. We will do products performance tests during production, and comprehensive quality tests when the products is completed.
|
