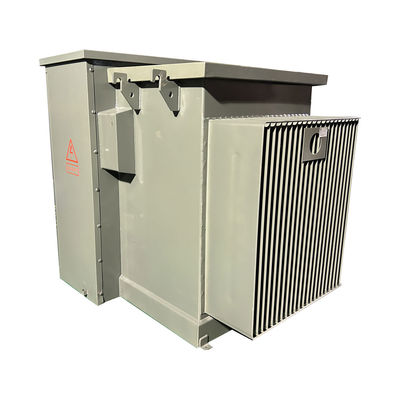

500kva Three Phase Pad Mounted Transformer Ansi Standard  Loop Feed 34500v To 480y/277

Brand Name: WINLEY
Model Number: S-500/34.5
MOQ: 1unit
Price: $5000-$150000
Packaging Details: Plywood case
Payment Terms: T/T
Detail Information
Product Description
Detail Information
Place of Origin:
CHINA
Certification:
UL/cUL,CE,ISO
Transformer Type:
Pad Mounted, Compartmental-Type
Capacity:
150Kva Or Customize
Primary Voltage:
34500V Or Customize
Secondary Voltage:
480Y/277
Cooling Class:
KNAN; Self-Cooled
Frequency:
50/60Hz
Temperature Rise:
65°C
Winding Material:
Aluminum
Supply Ability:
1000set/month
Highlight:

500kva Pad Mounted Transformer

,

480y/277 Pad Mounted Transformer

,

Ansi Standard Pad Mounted Transformer

Product Description

500kva Three Phase Pad Mounted Transformer Ansi Standard Loop Feed 34500v To 480y/277





Performance Characteristic



A padmount transformer is a ground-mounted utility distribution transformer, which usually is housed in a locked metal cabinet,situated on a small concrete pad. They are usually manufactured in power ratings from around 75 to around 5000 kVa and often includes built-in fuses and switches. A typical enclosure includes a tank for holding the core/coil assembly of the padmounted transformer immersed in oil or the like, and a wiring cabinet having high and low voltage wiring compartments for enclosing the high and low voltage bushings, respectively, of the transformer, etc. Our pad mounted transformer is design and tested in accordance with industry standards including CSA,ANSI C.57,DOE,and IEEE as applicable.



500kva Three Phase Pad Mounted Transformer Ansi Standard  Loop Feed 34500v To 480y/277 0

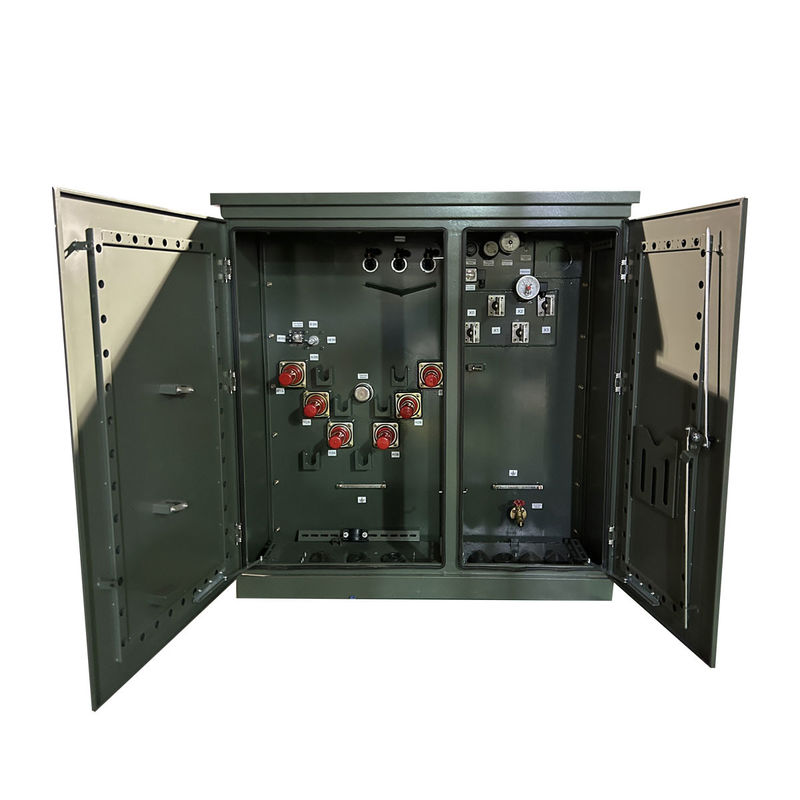

product structure



500kva Three Phase Pad Mounted Transformer Ansi Standard  Loop Feed 34500v To 480y/277 1





Main data



Phase Three Phase
Capacity 500 KVA
Primary Voltage 34500V
Primary Voltage Class 35 kV Class
Frequency 60 Hz
Temperature Rise 65°C
Insulation Rating Class E Insulation - 120°C, 248°F
Cooling Class KNAN; Self-Cooled
Tap Changer 5-position Tap Changer
Load Break Switch 4-Position Load Break Switch
Load Break Switch Rating 300-Amp, 35 kV
Efficiency Standard(s) Meets DOE 2016 Standards, Meets CSA Standards Meets ANSI/IEEE Standards
K-Factor Rating (Harmonic Mitigation) K-1 (Standard)
Insulation Fluid Biodegradable Natural Vegetable Oil Ester Insulating Fluid - Non-PCB Fluid
Winding Material Aluminum
Ambient Temperature Rating 40°C
Ambient Operating Temperature Range -40°C to +40°C (-50°F to +104°F)
Sound Level 56 dBA
Elevation (Altitude) 3300ft (1000 meters) Above Sea Level
Core Material Grain Oriented Steel
Tank Material Coated Steel
Enclosure Rating NEMA 3R Weatherproof Wiring Cabinet, Sealed Tank
Features Pentahead Bolt Entry Assembly
  High-Fire Point Insulating Fluid
  Non-PCB Insulating Fluid
  Tamper Proof Housing
  Hinged Front Compartment Doors, Pad Lockable
  NEMA 3R Wiring Compartment
  Hot Stick Included, HV Door Mount
Efficiency % 99.10%



Technical drawings



500kva Three Phase Pad Mounted Transformer Ansi Standard  Loop Feed 34500v To 480y/277 2

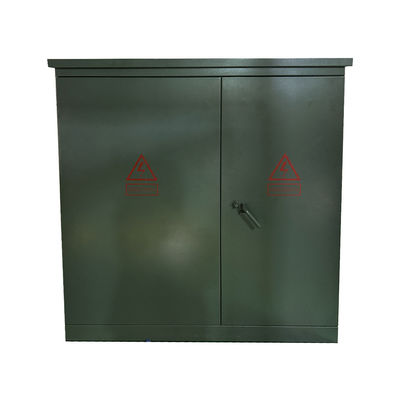

Factory product photos



500kva Three Phase Pad Mounted Transformer Ansi Standard  Loop Feed 34500v To 480y/277 3



Specification



Tachnical Data for Three Phase Pad Mounted Transformer
Rated Capacity Loss(w) Dimension(mm) Weight(kg)
No-load Loss(W) On-load Loss W D H Oil Weight (L) Total Weight (KG)
45kVA 160 1000 1730 990 1270 416 950
75kVA 180 1250 1730 990 1270 435 1020
150kVA 280 2200 1730 1245 1270 473 1225
300kVA 480 3650 1830 1295 1270 605 1655
500kVA 680 5100 2260 1345 1270 720 2110
750kVA 980 7500 2260 1448 1628 1022 2950
1000kVA 1150 10300 2260 1500 1625 1325 3720
1500kVA 1640 14500 2210 1470 2150 1552 4672
2000kVA 2160 20645 2380 1600 2220 1855 5670
2500kVA 2680 27786 3070 1650 2330 2006 6580
3000kVA 3300 30300 3260 1850 2460 2336 7500
3750kVA 4125 37875 4080 2060 2680 2650 8450



Production process



150KVA Three Phase Pad Mount electrical Transformer Oil Immersed 13.8KV 4

150KVA Three Phase Pad Mount electrical Transformer Oil Immersed 13.8KV 5

150KVA Three Phase Pad Mount electrical Transformer Oil Immersed 13.8KV 6



FAQ



1. Q: Can I have a sample order?

A: Yes, we welcome sample order to test and check quality.

2. Q: What is the lead time?

A: Mass production time 15-25 days.

3. Q: How long is the warranty?

A: 24 monthes from B/L. If there are any accessory problems,just provide the photos of damaged accessory,then we will provide free service. According to the number of products,we will provide easily damaged accessories for free. we also can provide technical support if you need.

4. Q: Is OEM/ODM available?

A: Yes,it is! We are manufacturer with our own R&D team, we can customize products according to customer's drawing or requirements.

Customized services:

a. Customized color and special function.

b. Customized box.

c. Print customer's logo.

d. Your other ideas about product, we can help you design and put them into production. The above customized services must be confirmed before production.

5. Q: How to control the products quality?

A: Our company owns the core technology ,all kinds of products hold CE certificate. We have professional engineers. Workers are strictly required to make products according to the drawings. Each process has technical instructors.The QC supervisors will regularly inspect the production. We will do products performance tests during production, and comprehensive quality tests when the products is completed.
