100Kva Three Phase electrical transformer Pad Mounted Transformer ANSI/IEEE standards 34500V To 208V

Basic Information
Place of Origin: CHINA
Brand Name: WINLEY
Certification: CE,ISO
Model Number: S-100/35
Minimum Order Quantity: 1unit
Price: $5000-$150000
Packaging Details: Plywood case
Delivery Time: 30days
Payment Terms: T/T
Supply Ability: 1000set/month
Detail Information
Transformer Type: Pad Mounted, Compartmental-Type Capacity: 1000KVA
Primary Voltage: 34500V Secondary Voltage: 120/208Y
Cooling Class: KNAN; Self-Cooled Phase: Three
Temperature Rise: 65°C Efficiency Standard(s): Meets DOE 2016 Standards
High Light:

ANSI Pad Mounted Electrical Transformer

,

IEEE Standards Electrical Transformer

,

100Kva Electrical Transformer


Product Description

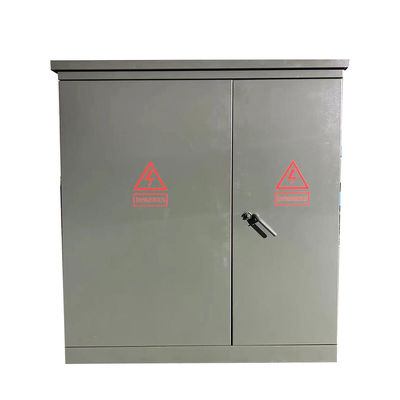

100Kva Three Phase electrical transformer Pad Mounted Transformer ANSI/IEEE standards 34500V To 208V





Performance



1.Fully sealed and insulated structure can guarantee the security of person.
2.It is not only used for ring network but also terminal.
3.Low loss,low noise, superior performance.
4.Low temperature,overload ability.
5.Transformer adopts special structure and its outstanding advantages is high quality.



product structure


Pad Mounted Transformer has two layout structures: Loop Feed and Radial Feed. You can choose according to the needs of the grid line. The picture below is the loop feed and radial feed transformer produced by Lvbian for the North American market.

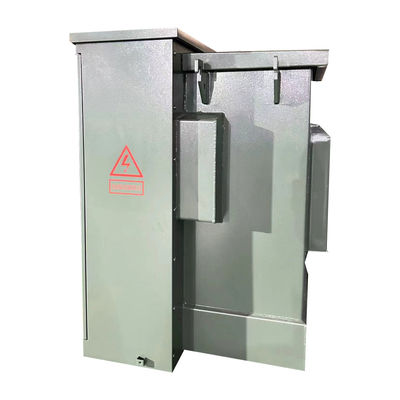

100Kva Three Phase electrical transformer Pad Mounted Transformer ANSI/IEEE standards 34500V To 208V 0



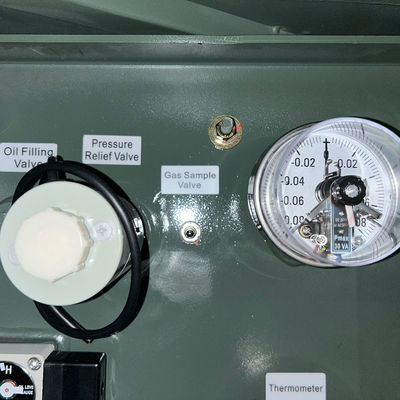

Standard Features


• 60 Hz operation.
• 65°C average winding rise.
• Radial & loop feed arrangements.
• Dead and live front type of HV terminals.
• HV BIL 45 – 150 kV (Dead Front) 200 kV (Live Front).
• LV BIL 30 – 60 kV.
• Three-point latching of low-voltage door.
• High-voltage door, which can be opened only after the low-voltage door is opened.
• Rigid steel partition.
• Transformer tank welded from cover to base.
• Permanent nameplate.
• One-inch NPT pipe cap filling provision.
• ANSI tank ground pads.
• One-inch drain valve and sampler.
• Automatic pressure-relief valve (35 SCFM).
• Tap changer with (2) 2.5% full capacity taps above and below nominal.
• One 10”x18” (or 14”x25”) hand hole in transformer tank cover.
• Painted olive-green color (Munsell 7GY 3.29/1.5).
• Designed, manufactured and tested in accordance with the latest ANSI standards



Main data



Phase Three Phase
Transformer Feed Type Loop Feed
Capacity 100 KVA
Primary Voltage 34500V
Secondary Voltage 120/208Y
Frequency 60 Hz
Temperature Rise 65°C
Insulation Rating Class E Insulation - 120°C, 248°F
Cooling Class KNAN; Self-Cooled
Winding Material Copper
Ambient Temperature Rating 40°C
Ambient Operating Temperature Range -40°C to +40°C (-50°F to +104°F)
Sound Level 55 dBA
Elevation (Altitude) 3300ft (1000 meters) Above Sea Level
Core Material Grain Oriented Steel
Mounting Pad Mounted
Ratings Meets/Exceeds DOE 2016 Efficiency Ratings
  Meets/Exceeds CSA Efficiency Ratings
  Complies with ANSI / IEEE C57.12.00
  Complies with ANSI / IEEE C57 12.34
Efficiency % 98.90%
No Load Loss (in watts) +/- 260W
Full Load Loss (in watts) at 100% +/- 1,300W



Technical drawings

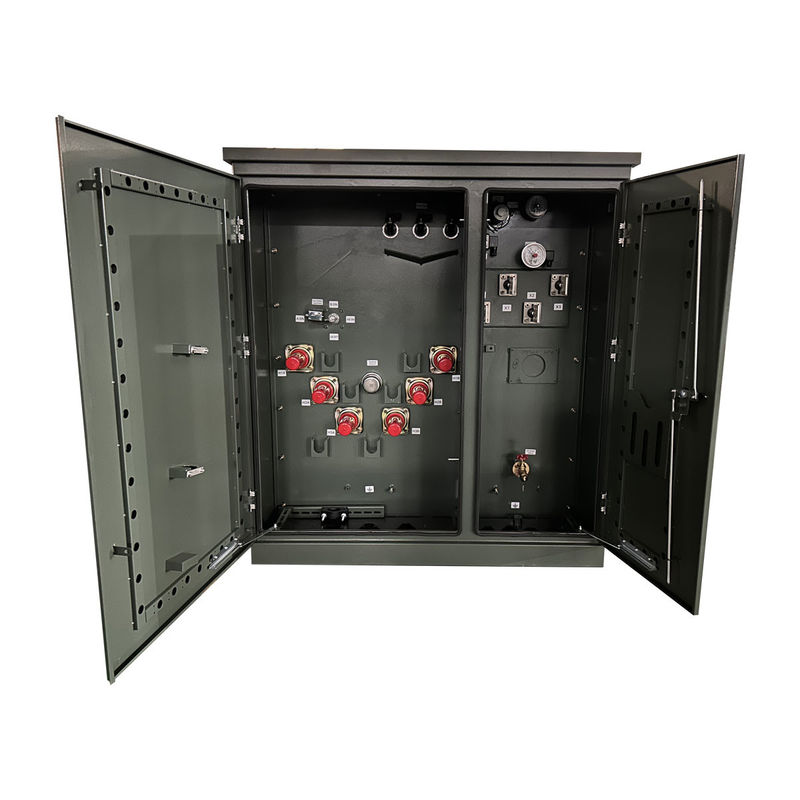

100Kva Three Phase electrical transformer Pad Mounted Transformer ANSI/IEEE standards 34500V To 208V 1



Specification



Three Phase Pad Mounted Transformer
Rated Power (KVA) High Voltage (KV) Low Voltage (V) Loss (W)
No-load Loss (W) On-load Loss (W)
75KVA 24.94/14.4kV
12.47/7.2kV
34.5KV/
19.92KV/
13.8KV/
13.2KV/
or others
120/240V
480Y/
277V
600Y/
347V
180 1250
112.5KVA 200 1500
150KVA 280 2200
225KVA 400 3050
300KVA 480 3650
500KVA 680 5100
750KVA 980 7500
1000KVA 1150 10300
1500KVA 1640 14500
2000KVA 2160 20645
2500KVA 2680 23786
3000KVA 3300 25300
3750KVA 4125 27875
5000KVA 5200 30000



Production process



150KVA Three Phase Pad Mount electrical  Transformer Oil Immersed 13.8KV 4

150KVA Three Phase Pad Mount electrical  Transformer Oil Immersed 13.8KV 5

150KVA Three Phase Pad Mount electrical  Transformer Oil Immersed 13.8KV 6



FAQ



1. Q: Can I have a sample order?

A: Yes, we welcome sample order to test and check quality.

2. Q: What is the lead time?

A: Mass production time 15-25 days.

3. Q: How long is the warranty?

A: 24 monthes from B/L. If there are any accessory problems,just provide the photos of damaged accessory,then we will provide free service. According to the number of products,we will provide easily damaged accessories for free. we also can provide technical support if you need.

4. Q: Is OEM/ODM available?

A: Yes,it is! We are manufacturer with our own R&D team, we can customize products according to customer's drawing or requirements.

Customized services:

a. Customized color and special function.

b. Customized box.

c. Print customer's logo.

d. Your other ideas about product, we can help you design and put them into production. The above customized services must be confirmed before production.

5. Q: How to control the products quality?

A: Our company owns the core technology ,all kinds of products hold CE certificate. We have professional engineers. Workers are strictly required to make products according to the drawings. Each process has technical instructors.The QC supervisors will regularly inspect the production. We will do products performance tests during production, and comprehensive quality tests when the products is completed.
