Oil Type Transformer
>
5000Kva Three Phase Pad Mounted Electrical Transformer Step-Down 34.5Kv To 480V

5000Kva Three Phase Pad Mounted Electrical Transformer Step-Down 34.5Kv To 480V

Brand Name: WINLEY
Model Number: S-5000/35
MOQ: 1unit
Price: $5000-$150000
Packaging Details: Plywood case
Payment Terms: T/T
Detail Information
Place of Origin:
CHINA
Certification:
UL/cUL,CE,ISO
Phase:
Three Phase
Capacity:
5000KVA
Primary Voltage:
34500V Or Customized
Secondary Voltage:
480V
Frequency:
60 Hz
Temperature Rise:
65°C
Impedance (Typical):
5.75%
Winding Material:
Copper
Supply Ability:
1000set/month
Highlight:

480V Pad Mounted Electrical Transformer

,

5000Kva Pad Mounted Electrical Transformer

,

34.5Kv Pad Mounted Electrical Transformer

Product Description

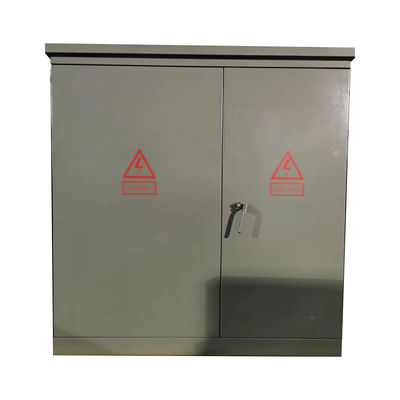

5000Kva Three Phase Pad Mounted Electrical Transformer Step-Down 34.5Kv To 480V





Three-phase pad-mounted oil-immeresed distribution transformers are powerful, dependable, and designed with the environment in mind. With the ability to function indoors and outdoors, these transformers offer enhanced reliability and protection against critical equipment failure. The lower operating costs and heat emissions of these transformers make them an ideal choice for a wide range of applications.



5000Kva Three Phase Pad Mounted Electrical Transformer Step-Down 34.5Kv To 480V 0

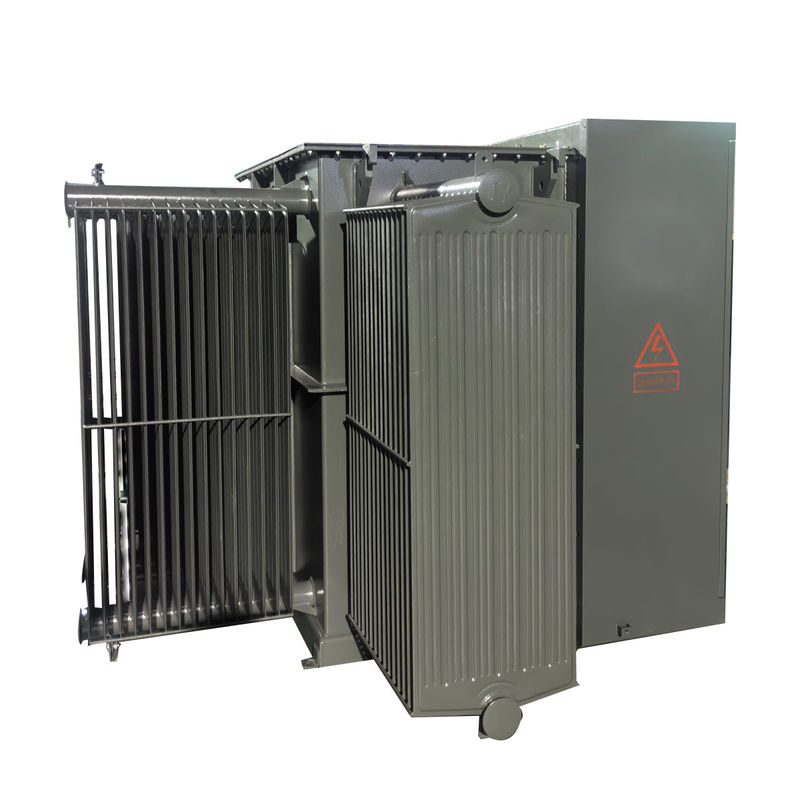

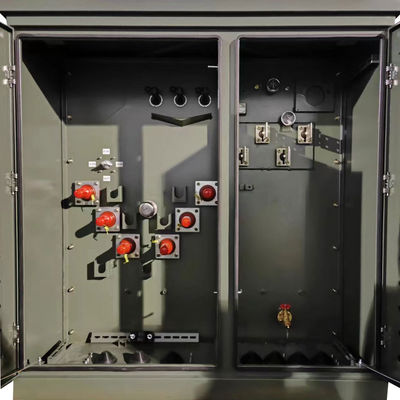

STRUCTURE



5000Kva Three Phase Pad Mounted Electrical Transformer Step-Down 34.5Kv To 480V 1



Main data



Transformer Type Pad Mounted, Compartmental-Type
Transformer Configuration Liquid Filled Pad Mounted
Transformer Feed Type Loop Feed
Operation Step-Down Operation (Not Approved for Step-Up)
Phase Three Phase
Capacity 5 MVA (5000 KVA)
Vector Group YnD1
Primary Voltage 34500GrdY/19920
Secondary Voltage 480V
Frequency 60 Hz
Temperature Rise 65°C
Insulation Rating Class E Insulation - 120°C, 248°F
Cooling Class KNAN; Self-Cooled
Impedance 5.0% Typical
Efficiency Standard(s) Meets DOE 2016 Standards, Meets CSA Standards Meets ANSI/IEEE Standards
K-Factor Rating (Harmonic Mitigation) K-1 (Standard)
Winding Material Copper
Ambient Temperature Rating 40°C
Ambient Operating Temperature Range -40°C to +40°C (-50°F to +104°F)
Sound Level 65 dBA
Elevation (Altitude) 3300ft (1000 meters) Above Sea Level
Dimensions* 96''-W x 108''-D x 94''-H
Ratings Meets/Exceeds DOE 2016 Efficiency Ratings
Efficiency % 98.50%
Total Load Loss (in watts) at 50% +/- 16,640W




Technical drawings



5000Kva Three Phase Pad Mounted Electrical Transformer Step-Down 34.5Kv To 480V 2



Specification



Three Phase Pad Mounted Transformer
Rated Power (KVA) High Voltage (KV) Low Voltage (V) Loss (W)
No-load Loss (W) On-load Loss (W)
75KVA 24.94/14.4kV
12.47/7.2kV
34.5KV/
19.92KV/
13.8KV/
13.2KV/
or others
120/240V
480Y/
277V
600Y/
347V
180 1250
112.5KVA 200 1500
150KVA 280 2200
225KVA 400 3050
300KVA 480 3650
500KVA 680 5100
750KVA 980 7500
1000KVA 1150 10300
1500KVA 1640 14500
2000KVA 2160 20645
2500KVA 2680 23786
3000KVA 3300 25300
3750KVA 4125 27875
5000KVA 5200 30000




Optional accessories


5000Kva Three Phase Pad Mounted Electrical Transformer Step-Down 34.5Kv To 480V 3



Production process



150KVA Three Phase Pad Mount electrical  Transformer Oil Immersed 13.8KV 4

150KVA Three Phase Pad Mount electrical  Transformer Oil Immersed 13.8KV 5

150KVA Three Phase Pad Mount electrical  Transformer Oil Immersed 13.8KV 6



FAQ



1. Q: Can I have a sample order?

A: Yes, we welcome sample order to test and check quality.

2. Q: What is the lead time?

A: Mass production time 15-25 days.

3. Q: How long is the warranty?

A: 24 monthes from B/L. If there are any accessory problems,just provide the photos of damaged accessory,then we will provide free service. According to the number of products,we will provide easily damaged accessories for free. we also can provide technical support if you need.

4. Q: Is OEM/ODM available?

A: Yes,it is! We are manufacturer with our own R&D team, we can customize products according to customer's drawing or requirements.

Customized services:

a. Customized color and special function.

b. Customized box.

c. Print customer's logo.

d. Your other ideas about product, we can help you design and put them into production. The above customized services must be confirmed before production.

5. Q: How to control the products quality?

A: Our company owns the core technology ,all kinds of products hold CE certificate. We have professional engineers. Workers are strictly required to make products according to the drawings. Each process has technical instructors.The QC supervisors will regularly inspect the production. We will do products performance tests during production, and comprehensive quality tests when the products is completed.
