75Kva Three Phase Pad Mounted Electrical Transformer Oil Immersed 13.2KV to 208V

Brand Name: WINLEY
Model Number: S-75/15
MOQ: 1unit
Price: $5000-$150000
Packaging Details: Plywood case
Payment Terms: T/T
Detail Information
Product Description
Detail Information
Place of Origin:
CHINA
Certification:
UL,CE,ISO
Phase:
Three Phase
Capacity:
75KVA
Primary Voltage:
13200GrdY/7620
Secondary Voltage:
208Y/120
Cooling Class:
KNAN; Self-Cooled
Transformer Feed Type:
Loop Feed
Temperature Rise:
65°C
Frequency:
60 HZ
Supply Ability:
1000set/month
Highlight:

Oil Immersed Pad Mounted Electrical Transformer

,

75Kva Pad Mounted Electrical Transformer

Product Description

300Kva Three phase pad mounted Transformer Loop Feed 12470GrdY/7200 to 480Y/277





summary



WINLEY offers a complete line of liquid-filled ThreePhase Pad-Mounted distribution transformers that meet applicable ANSI®/IEEE® standards.With high voltages up to 34.5 kV and ratings up to 5,000 kVA, It is suitable for high-voltage and large-capacity occasions, such as power substations, industrial power consumption, etc. In high-load, high-voltage scenarios, oil-immersed transformers have better performance and stability.



75Kva Three Phase Pad Mounted Electrical Transformer Oil Immersed 13.2KV to 208V 0



product structure



75Kva Three Phase Pad Mounted Electrical Transformer Oil Immersed 13.2KV to 208V 1



Main data



Transformer Type Pad Mounted, Compartmental-Type
Transformer Configuration Liquid Filled Pad Mounted
Transformer Feed Type Loop Feed
Phase Three Phase
Capacity 75 KVA
Vector Group YnYn0
Primary Voltage 13200GrdY/7620
Primary Voltage Class 15 kV Class
Primary Phasor Grounded Wye
Primary BIL 95 KV
Secondary Voltage 208Y/120
Secondary Voltage Class 1.2 kV Class
Secondary Phasor Wye-N
Secondary BIL 30 KV
Frequency 60 Hz
Temperature Rise 65°C
Insulation Rating Class E Insulation - 120°C, 248°F
Cooling Class KNAN; Self-Cooled
Tap Changer 5-position Tap Changer
Impedance 2.70-5%
Winding Material Copper
Ambient Temperature Rating 40°C
Ambient Operating Temperature Range -40°C to +40°C (-50°F to +104°F)
Sound Level 51 dBA
Elevation (Altitude) 3300ft (1000 meters) Above Sea Level
Core Material Grain Oriented Steel
Tank Material Coated Steel
Dimensions* 61-W x 43-D x 69-H
Total Weight (Liquid Filled)* 2,160 lb
Ratings Meets/Exceeds DOE 2016 Efficiency Ratings
Efficiency % 98.90%
Total Load Loss (in watts) at 50% +/- 413W



Technical drawings



75Kva Three Phase Pad Mounted Electrical Transformer Oil Immersed 13.2KV to 208V 2



STANDARD FEATURES



• 60 Hz operation.
• 65°C average winding rise.
• Radial & loop feed arrangements.

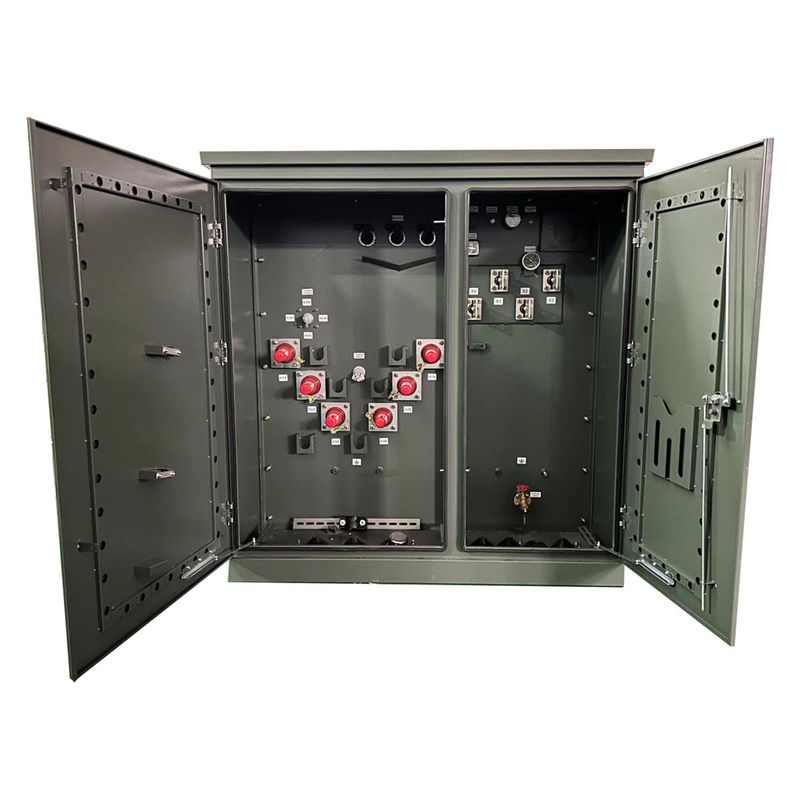

• Dead and live front type of HV terminals.
• HV BIL 45 – 150 kV (Dead Front) 200 kV (Live Front).
• LV BIL 30 – 60 kV.
• Three-point latching of low-voltage door.
• High-voltage door, which can be opened only after the low-voltage door is opened.
• Rigid steel partition.
• Transformer tank welded from cover to base.
• Permanent nameplate.
• One-inch NPT pipe cap filling provision.
• ANSI tank ground pads.
• One-inch drain valve and sampler.
• Automatic pressure-relief valve (35 SCFM).
• Tap changer with (2) 2.5% full capacity taps above and below nominal.
• One 10”x18” (or 14”x25”) hand hole in transformer tank cover.
• Painted olive-green color (Munsell 7GY 3.29/1.5).
• Designed, manufactured and tested in accordance with the latest ANSI standards



Specification



Three Phase Pad Mounted Transformer
Rated Power (KVA) High Voltage (KV) Low Voltage (V) Loss (W)
No-load Loss (W) On-load Loss (W)
75KVA 24.94/14.4kV
12.47/7.2kV
34.5KV/
19.92KV/
13.8KV/
13.2KV/
or others		 120/240V
480Y/
277V
600Y/
347V		 180 1250
112.5KVA 200 1500
150KVA 280 2200
225KVA 400 3050
300KVA 480 3650
500KVA 680 5100
750KVA 980 7500
1000KVA 1150 10300
1500KVA 1640 14500
2000KVA 2160 20645
2500KVA 2680 23786
3000KVA 3300 25300
3750KVA 4125 27875
5000KVA 5200 30000



Production process



75Kva Three Phase Pad Mounted Electrical Transformer Oil Immersed 13.2KV to 208V 3

75Kva Three Phase Pad Mounted Electrical Transformer Oil Immersed 13.2KV to 208V 4

75Kva Three Phase Pad Mounted Electrical Transformer Oil Immersed 13.2KV to 208V 5



FAQ



1. Q: Can I have a sample order?

A: Yes, we welcome sample order to test and check quality.

2. Q: What is the lead time?

A: Mass production time 15-25 days.

3. Q: How long is the warranty?

A: 24 monthes from B/L. If there are any accessory problems,just provide the photos of damaged accessory,then we will provide free service. According to the number of products,we will provide easily damaged accessories for free. we also can provide technical support if you need.

4. Q: Is OEM/ODM available?

A: Yes,it is! We are manufacturer with our own R&D team, we can customize products according to customer's drawing or requirements.

Customized services:

a. Customized color and special function.

b. Customized box.

c. Print customer's logo.

d. Your other ideas about product, we can help you design and put them into production. The above customized services must be confirmed before production.

5. Q: How to control the products quality?

A: Our company owns the core technology ,all kinds of products hold CE certificate. We have professional engineers. Workers are strictly required to make products according to the drawings. Each process has technical instructors.The QC supervisors will regularly inspect the production. We will do products performance tests during production, and comprehensive quality tests when the products is completed.

Tags:

Oil Type Transformer

Oil Immersed Distribution Transformer

Step Down Transformer

Good price online

Products Details

Home > Products >
Oil Type Transformer
>
75Kva Three Phase Pad Mounted Electrical Transformer Oil Immersed 13.2KV to 208V
All Category

Three Phase Isolation Transformer

Oil Type Transformer

Three Phase Pad Mounted Transformer

Single Phase Pad Mounted Transformer

Pole Mounted Transformer

UPS Isolation Transformer

Medical Isolation Transformer

Industrial Control Transformer

Cast Coil Transformer

Single Phase Control Transformer

Toroidal Isolation Transformer

Three Phase Dry Type Transformer

EI Power Transformer

Three Phase Auto Transformer

Three Phase Voltage Regulator

Three Phase Reactor
Name
  • Name
  • Name
  • Name
  • Name
  • Name
  • Name

75Kva Three Phase Pad Mounted Electrical Transformer Oil Immersed 13.2KV to 208V

Brand Name: WINLEY
Model Number: S-75/15
MOQ: 1unit
Price: $5000-$150000
Packaging Details: Plywood case
Payment Terms: T/T
Detail Information
Product Description
Detail Information
Place of Origin:
CHINA
Brand Name:
WINLEY
Certification:
UL,CE,ISO
Model Number:
S-75/15
Phase:
Three Phase
Capacity:
75KVA
Primary Voltage:
13200GrdY/7620
Secondary Voltage:
208Y/120
Cooling Class:
KNAN; Self-Cooled
Transformer Feed Type:
Loop Feed
Temperature Rise:
65°C
Frequency:
60 HZ
Minimum Order Quantity:
1unit
Price:
$5000-$150000
Packaging Details:
Plywood case
Delivery Time:
30days
Payment Terms:
T/T
Supply Ability:
1000set/month
Highlight:

Oil Immersed Pad Mounted Electrical Transformer

,

75Kva Pad Mounted Electrical Transformer

Product Description

300Kva Three phase pad mounted Transformer Loop Feed 12470GrdY/7200 to 480Y/277





summary



WINLEY offers a complete line of liquid-filled ThreePhase Pad-Mounted distribution transformers that meet applicable ANSI®/IEEE® standards.With high voltages up to 34.5 kV and ratings up to 5,000 kVA, It is suitable for high-voltage and large-capacity occasions, such as power substations, industrial power consumption, etc. In high-load, high-voltage scenarios, oil-immersed transformers have better performance and stability.



75Kva Three Phase Pad Mounted Electrical Transformer Oil Immersed 13.2KV to 208V 0



product structure



75Kva Three Phase Pad Mounted Electrical Transformer Oil Immersed 13.2KV to 208V 1



Main data



Transformer Type Pad Mounted, Compartmental-Type
Transformer Configuration Liquid Filled Pad Mounted
Transformer Feed Type Loop Feed
Phase Three Phase
Capacity 75 KVA
Vector Group YnYn0
Primary Voltage 13200GrdY/7620
Primary Voltage Class 15 kV Class
Primary Phasor Grounded Wye
Primary BIL 95 KV
Secondary Voltage 208Y/120
Secondary Voltage Class 1.2 kV Class
Secondary Phasor Wye-N
Secondary BIL 30 KV
Frequency 60 Hz
Temperature Rise 65°C
Insulation Rating Class E Insulation - 120°C, 248°F
Cooling Class KNAN; Self-Cooled
Tap Changer 5-position Tap Changer
Impedance 2.70-5%
Winding Material Copper
Ambient Temperature Rating 40°C
Ambient Operating Temperature Range -40°C to +40°C (-50°F to +104°F)
Sound Level 51 dBA
Elevation (Altitude) 3300ft (1000 meters) Above Sea Level
Core Material Grain Oriented Steel
Tank Material Coated Steel
Dimensions* 61-W x 43-D x 69-H
Total Weight (Liquid Filled)* 2,160 lb
Ratings Meets/Exceeds DOE 2016 Efficiency Ratings
Efficiency % 98.90%
Total Load Loss (in watts) at 50% +/- 413W



Technical drawings



75Kva Three Phase Pad Mounted Electrical Transformer Oil Immersed 13.2KV to 208V 2



STANDARD FEATURES



• 60 Hz operation.
• 65°C average winding rise.
• Radial & loop feed arrangements.
• Dead and live front type of HV terminals.
• HV BIL 45 – 150 kV (Dead Front) 200 kV (Live Front).
• LV BIL 30 – 60 kV.
• Three-point latching of low-voltage door.
• High-voltage door, which can be opened only after the low-voltage door is opened.
• Rigid steel partition.
• Transformer tank welded from cover to base.
• Permanent nameplate.
• One-inch NPT pipe cap filling provision.
• ANSI tank ground pads.
• One-inch drain valve and sampler.
• Automatic pressure-relief valve (35 SCFM).
• Tap changer with (2) 2.5% full capacity taps above and below nominal.
• One 10”x18” (or 14”x25”) hand hole in transformer tank cover.
• Painted olive-green color (Munsell 7GY 3.29/1.5).
• Designed, manufactured and tested in accordance with the latest ANSI standards



Specification



Three Phase Pad Mounted Transformer
Rated Power (KVA) High Voltage (KV) Low Voltage (V) Loss (W)
No-load Loss (W) On-load Loss (W)
75KVA 24.94/14.4kV
12.47/7.2kV
34.5KV/
19.92KV/
13.8KV/
13.2KV/
or others		 120/240V
480Y/
277V
600Y/
347V		 180 1250
112.5KVA 200 1500
150KVA 280 2200
225KVA 400 3050
300KVA 480 3650
500KVA 680 5100
750KVA 980 7500
1000KVA 1150 10300
1500KVA 1640 14500
2000KVA 2160 20645
2500KVA 2680 23786
3000KVA 3300 25300
3750KVA 4125 27875
5000KVA 5200 30000



Production process

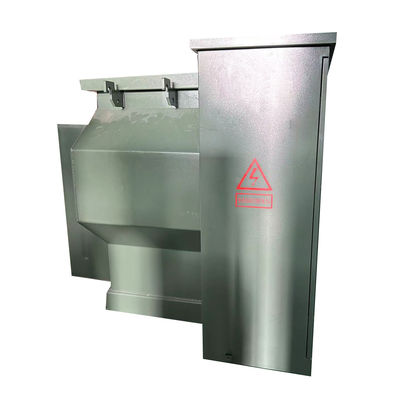

75Kva Three Phase Pad Mounted Electrical Transformer Oil Immersed 13.2KV to 208V 3

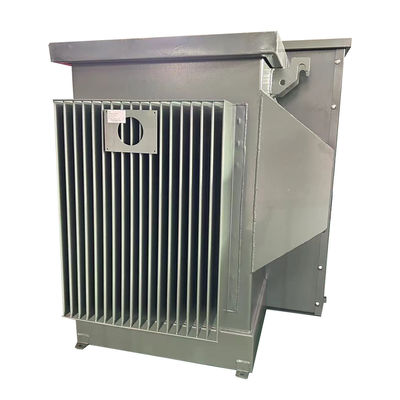

75Kva Three Phase Pad Mounted Electrical Transformer Oil Immersed 13.2KV to 208V 4

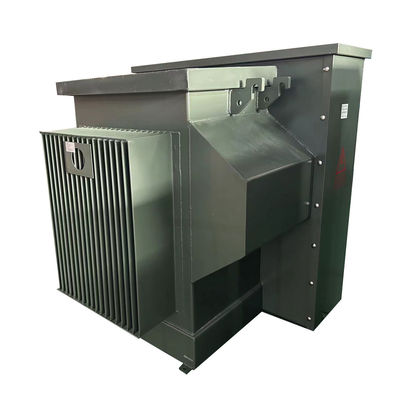

75Kva Three Phase Pad Mounted Electrical Transformer Oil Immersed 13.2KV to 208V 5



FAQ



1. Q: Can I have a sample order?

A: Yes, we welcome sample order to test and check quality.

2. Q: What is the lead time?

A: Mass production time 15-25 days.

3. Q: How long is the warranty?

A: 24 monthes from B/L. If there are any accessory problems,just provide the photos of damaged accessory,then we will provide free service. According to the number of products,we will provide easily damaged accessories for free. we also can provide technical support if you need.

4. Q: Is OEM/ODM available?

A: Yes,it is! We are manufacturer with our own R&D team, we can customize products according to customer's drawing or requirements.

Customized services:

a. Customized color and special function.

b. Customized box.

c. Print customer's logo.

d. Your other ideas about product, we can help you design and put them into production. The above customized services must be confirmed before production.

5. Q: How to control the products quality?

A: Our company owns the core technology ,all kinds of products hold CE certificate. We have professional engineers. Workers are strictly required to make products according to the drawings. Each process has technical instructors.The QC supervisors will regularly inspect the production. We will do products performance tests during production, and comprehensive quality tests when the products is completed.

Tags:

Oil Type Transformer

Oil Immersed Distribution Transformer

Step Down Transformer

86-18650108051
Quick link
Home About Us products video news Cases Contact Us
Quick Contact

Address

No.168,Xiabao Road,Siming,Xiamen,Fujian,China

Tel

86-592-5510031

86-18650108051
Our Newsletter
Subscribe to our newsletter for discounts and more.
Privacy Policy |  Sitemap  | China Good Quality Three Phase Isolation Transformer Supplier. Copyright © 2021-2025 Xiamen Winley Electric Co.,Ltd . All Rights Reserved.
