5000 KVA Pad Mount Three Phase Oil Immersed Distribution Transformer 35kv

Basic Information
Place of Origin: CHINA
Brand Name: WINLEY
Certification: CE,ISO
Model Number: S-5000/35
Minimum Order Quantity: 1unit
Price: $5000-$150000
Packaging Details: Plywood case
Delivery Time: 30days
Payment Terms: T/T
Supply Ability: 1000set/month
Detail Information
Phase: Three Phase Capacity: 5000KVA
Primary Voltage: 34500GrdY/19920 Secondary Voltage: 480V
Frequency: 60 HZ Temperature Rise: 65°C
Sound Level: 65dBA Winding Material: Copper
High Light:

5000 kVA Pad Mount Distribution Transformer


Oil Immersed Pad Mount Distribution Transformer


Three Phase Pad Mount Distribution Transformer

Product Description

5000 kVA Pad Mount Three-Phase Oil-Immersed Distribution Transformer 35kv



WINLEY presents a comprehensive range of liquid-filled Three-Phase Pad-Mounted distribution transformers that adhere to relevant ANSI®/IEEE® standards. Capable of handling high voltages reaching up to 34.5 kV and ratings up to 5,000 kVA, these transformers are ideal for applications demanding high voltage and substantial capacity, including power substations and industrial power consumption.




1)The transformer part and the control cabinet part of the United States variation, of which the transformer part is a fully sealed structure, and the insulating oil can be two types of high ignition point oil or ordinary oil.

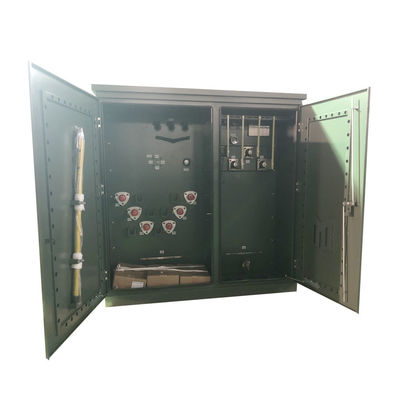

2)The control cabinet is divided into a high-voltage room and a low-voltage room.
3)The high-voltage room is equipped with: high-voltage cable plug, lightning arrester, load switch operating handle, non-excitation tap switch handle, plug-in fuse, pressure release valve, thermometer, pressure gauge, oil Position gauges, oil filling plugs, oil drain valves, etc., load switches, off-excitation tap changers, plug-in fuses, etc. are all immersed in transformer oil together with the transformer core. The high-voltage cable and the transformer are connected by elbow cable connectors.
4)The low-voltage side can be installed with air circuit breakers, current transformers, as well as electric energy meters, ammeters and voltmeters, and output circuits and capacitance compensation devices can be configured according to user needs.

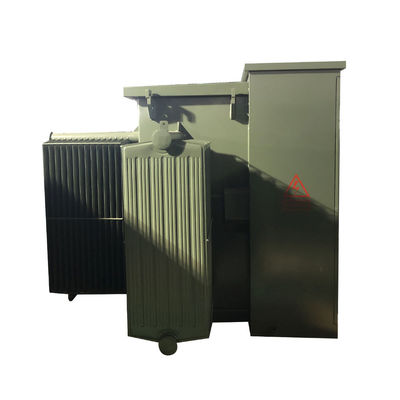

5000 KVA Pad Mount Three Phase Oil Immersed Distribution Transformer 35kv 0




1.using the corrugated tank sealing structure, enclosure, to prevent contact with air, water in contact with the transformer, reducing the degree of aging of the oil, to extend the service life of the transformer; Through the elastic deformation of corrugated to adjust the volume change of transformer oil heat bilges cold shrink.
2. the product structure for the outdoor type, oil-free pillow,anti-fouling high level;; in normal use period without replacement transformer oil, truly maintenance-free, to ensure safe operation and reliability of the grid.
3. the transformer has a pressure release safety devices, when a transformer failure pressure is too high, it can be safely released reliably through the pressure relief valve to prevent the expansion of the accident.


Main data


Transformer Configuration Liquid Filled Pad Mounted
Transformer Feed Type Loop Feed
Operation Step-Down Operation (Not Approved for Step-Up)
Phase Three Phase
Capacity 5 MVA (5000 KVA)
Vector Group YnD1
Primary Voltage 34500GrdY/19920
Primary Voltage Class 35 kV Class
Primary Phasor Grounded Wye
Primary BIL 200 KV
Secondary Voltage 480V
Secondary Voltage Class 1.2 kV Class
Secondary Phasor Delta
Secondary BIL 30 KV
Frequency 60 Hz
Temperature Rise 65°C
Insulation Rating Class E Insulation - 120°C, 248°F
Cooling Class KNAN; Self-Cooled
Impedance 5.0% Typical
Efficiency Standard(s) Meets DOE 2016 Standards, Meets CSA Standards Meets ANSI/IEEE Standards
K-Factor Rating (Harmonic Mitigation) K-1 (Standard)
Pulse Drive Rating N/A
Insulation Fluid Biodegradable Natural Vegetable Oil Ester Insulating Fluid - Non-PCB Fluid
Winding Material Copper
Ambient Temperature Rating 40°C
Ambient Operating Temperature Range -40°C to +40°C (-50°F to +104°F)
Sound Level 65 dBA
Elevation (Altitude) 3300ft (1000 meters) Above Sea Level
Enclosure Rating NEMA 3R Weatherproof Wiring Cabinet, Sealed Tank
Dimensions* 96''-W x 108''-D x 94''-H
Dry Weight (w/o Oil)* 8,040 Lbs
Total Weight (Liquid Filled)* 14,330 Lbs
Ratings Meets/Exceeds DOE 2016 Efficiency Ratings
Features Pentahead Bolt Entry Assembly
Efficiency % 98.50%


Technical drawings

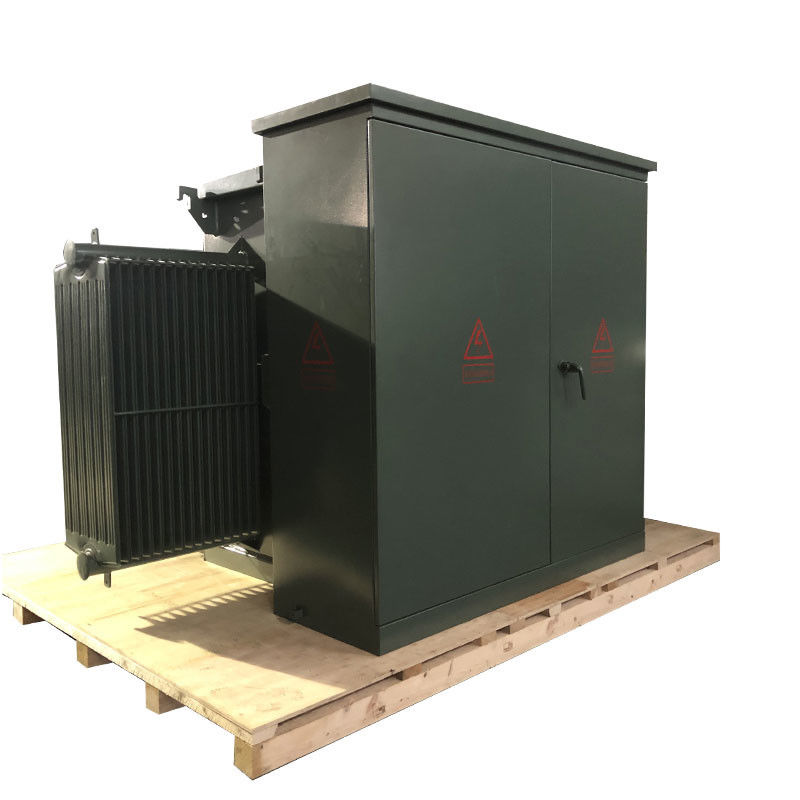

5000 KVA Pad Mount Three Phase Oil Immersed Distribution Transformer 35kv 1




Three Phase Pad Mounted Transformer
Rated Power (KVA) High Voltage (KV) Low Voltage (V) Loss (W)
No-load Loss (W) On-load Loss (W)
75KVA 24.94/14.4kV
or others
180 1250
112.5KVA 200 1500
150KVA 280 2200
225KVA 400 3050
300KVA 480 3650
500KVA 680 5100
750KVA 980 7500
1000KVA 1150 10300
1500KVA 1640 14500
2000KVA 2160 20645
2500KVA 2680 23786
3000KVA 3300 25300
3750KVA 4125 27875
5000KVA 5200 30000


Optional accessories

5000 KVA Pad Mount Three Phase Oil Immersed Distribution Transformer 35kv 2


Production process


150KVA Three Phase Pad Mount electrical  Transformer Oil Immersed 13.8KV 4

150KVA Three Phase Pad Mount electrical  Transformer Oil Immersed 13.8KV 5

150KVA Three Phase Pad Mount electrical  Transformer Oil Immersed 13.8KV 6




1. Q: Can I have a sample order?

A: Yes, we welcome sample order to test and check quality.

2. Q: What is the lead time?

A: Mass production time 15-25 days.

3. Q: How long is the warranty?

A: 24 monthes from B/L. If there are any accessory problems,just provide the photos of damaged accessory,then we will provide free service. According to the number of products,we will provide easily damaged accessories for free. we also can provide technical support if you need.

4. Q: Is OEM/ODM available?

A: Yes,it is! We are manufacturer with our own R&D team, we can customize products according to customer's drawing or requirements.

Customized services:

a. Customized color and special function.

b. Customized box.

c. Print customer's logo.

d. Your other ideas about product, we can help you design and put them into production. The above customized services must be confirmed before production.

5. Q: How to control the products quality?

A: Our company owns the core technology ,all kinds of products hold CE certificate. We have professional engineers. Workers are strictly required to make products according to the drawings. Each process has technical instructors.The QC supervisors will regularly inspect the production. We will do products performance tests during production, and comprehensive quality tests when the products is completed.
