150 Kva 3 Phase Pad Mounted Transformer Oil Immersed Step Down 12.47 KV To 480V

Basic Information
Place of Origin: CHINA
Brand Name: WINLEY
Certification: CE,ISO
Model Number: S-150/12.47
Minimum Order Quantity: 1unit
Price: $5000-$150000
Packaging Details: Plywood case
Delivery Time: 30days
Payment Terms: T/T
Supply Ability: 1000set/month
Detail Information
Phase: Three Phase Capacity: 150 KVA
Primary Voltage: 12470GrdY/7200 Secondary Voltage: 480Y/277
Cooling Class: KNAN; Self-Cooled Winding Material: Copper
Impedance (Typical): 5.75% Efficienc: 99.00%
High Light:

150 Kva Pad Mounted Transformer


480V Pad Mounted Transformer


3 Phase Pad Mounted Transformer

Product Description

150 Kva 3 Phase Pad Mounted Transformer Oil Immersed Step Down 12.47 KV To 480V





We can make this substion as user and customers requirement under their drawing/single line diagram (SLD) and need .We design & produce this substation under the international standard of IEC1330 ,H.V.standard IEC62271-200.

HV & LV compartment is with completed function.

1.) H.V.compartment has various of power supply methods when testing power supply in 1 time, it also can be installed with H.V.testing appliances to reach the demand of H.V.testing.
2.) The transformer compartment can be choosed S11,S13 or other low consumption oil immersed transformer and dry type transformer. The transformer compartment has automatic start wind cooling systems and lighting systems.
3.) Low voltage compartment can be made according to users' need , it adopts fixed or assembled structure to be electrical power supply system,it has many function like light distribution ,power distribution, reactive power ,electrical power testing..etc to improve the power distribution quality and satisfy the user.

This substation body mainly has metal material, stainless steel material , non -metal material ...which can be choosed by user and customers

This substation is a very important power distribution and supply unit in the electrical cable power is a kind of completed set of power supply with H.V.controlling,protection and converting ,distribution.. it used in 3 phase AC 50Hz and rated current max 1600KVA transformer.It is widely used in industrial and mining enterprises, residential quarters, hospital, mall, high-rise buildings and other distribution systems.


150 Kva 3 Phase Pad Mounted Transformer Oil Immersed Step Down 12.47 KV To 480V 0


Main data


Transformer Type Pad Mounted, Compartmental-Type
Phase Three Phase
Capacity 150 KVA
Vector Group YY0
Primary Voltage 12470GrdY/7200
Primary Voltage Class 15 kV Class
Secondary Voltage 480Y/277
Secondary BIL 30 KV
Frequency 60 Hz
Temperature Rise 65°C
Cooling Class ONAN; Self-Cooled
Impedance (Typical) 1.2-6.0% Typical
Winding Material Copper
Ambient Temperature Rating 40°C
Sound Level 55 dBA
Elevation Rating 3300ft (1000 meters) Above Sea Level
Core Material Grain Oriented Steel
Tank Material Coated Steel
Cabinet Material Coated Steel
Base Platform Material Coated Steel
Enclosure Rating NEMA 3R Weatherproof
Dimensions 74''-W x 49''-D x 50''-H
Weight 2,700 lb
Ratings Meets/Exceeds DOE 2016 Efficiency Ratings




Three Phase Pad Mounted Transformer
Rated Power (KVA) High Voltage (KV) Low Voltage (V) Loss (W)
No-load Loss (W) On-load Loss (W)
75KVA 24.94/14.4kV
or others
180 1250
112.5KVA 200 1500
150KVA 280 2200
225KVA 400 3050
300KVA 480 3650
500KVA 680 5100
750KVA 980 7500
1000KVA 1150 10300
1500KVA 1640 14500
2000KVA 2160 20645
2500KVA 2680 23786
3000KVA 3300 25300
3750KVA 4125 27875
5000KVA 5200 30000


Product drawings

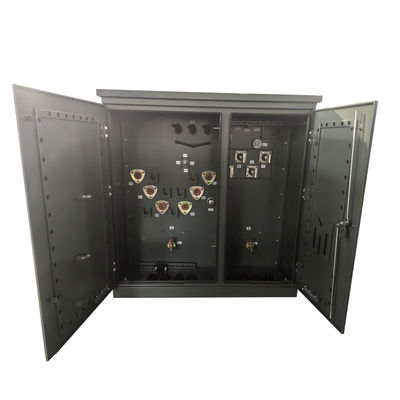

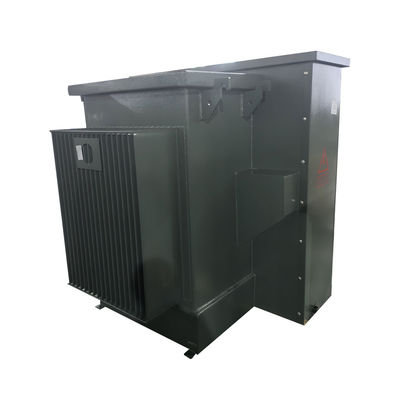

150 Kva 3 Phase Pad Mounted Transformer Oil Immersed Step Down 12.47 KV To 480V 1


Environmental conditions for normal use


Altitude: not more than 1000 meters;
Ambient temperature: no higher than +40°C, no lower than -25°C, daily average temperature difference no more than 35°C, annual average temperature difference no more than 20°C;
The wind speed does not exceed 35m/s;
There is no explosion hazard in the installation site, no chemical corrosion and severe vibration;
Cooling method: natural air cooling (AN).


Production process

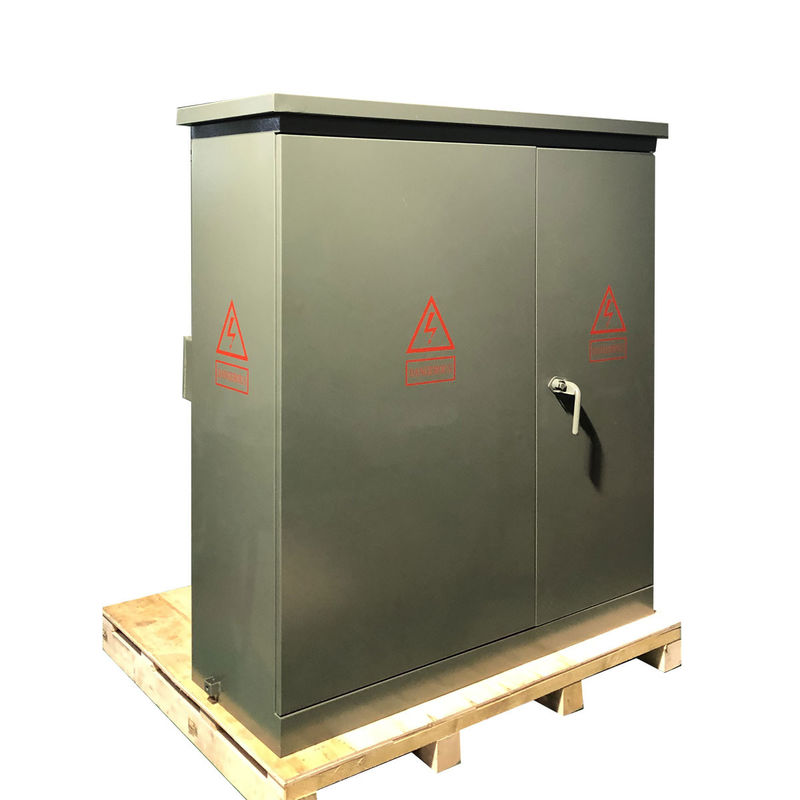

150KVA Three Phase Pad Mount electrical  Transformer Oil Immersed 13.8KV 4

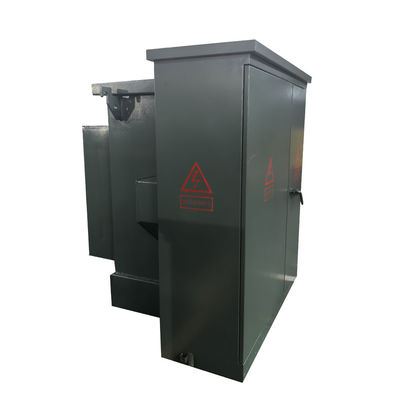

150KVA Three Phase Pad Mount electrical  Transformer Oil Immersed 13.8KV 5

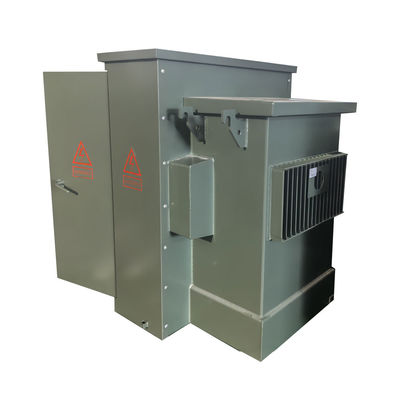

150KVA Three Phase Pad Mount electrical  Transformer Oil Immersed 13.8KV 6
