| Place of Origin: | CHINA |
|---|---|
| Brand Name: | WINLEY |
| Certification: | CE,ISO |
| Model Number: | S-300/15 |
| Minimum Order Quantity: | 1unit |
| Price: | $5000-$150000 |
| Packaging Details: | Plywood case |
| Delivery Time: | 30days |
| Payment Terms: | T/T |
| Supply Ability: | 1000set/month |
| Phase: | Three Phase | Capacity: | 300KVA |
|---|---|---|---|
| Primary Voltage: | 12470GrdY/7200V | Secondary Voltage: | 480Y/277 |
| Cooling Class: | KNAN; Self-Cooled | Vector Group: | YnYn0 |
| Temperature Rise: | 65°C | Insulation Rating: | Class E Insulation - 120°C, 248°F |
| High Light: | 300Kva Pad Mounted Transformer,12470GrdY/7200V Pad Mounted Transformer,Three Phase Pad Mounted Transformer |
||

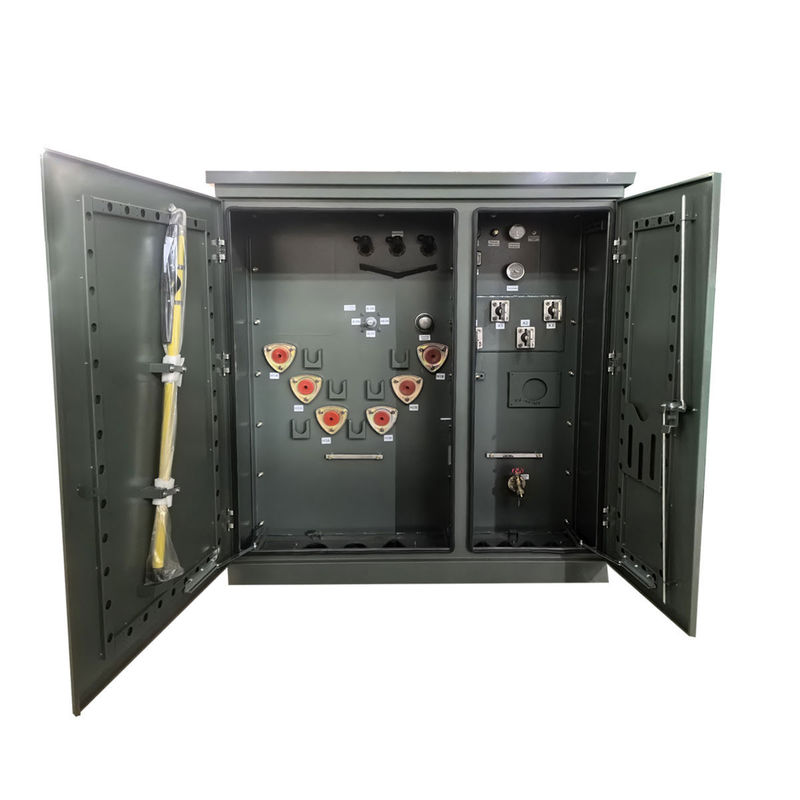

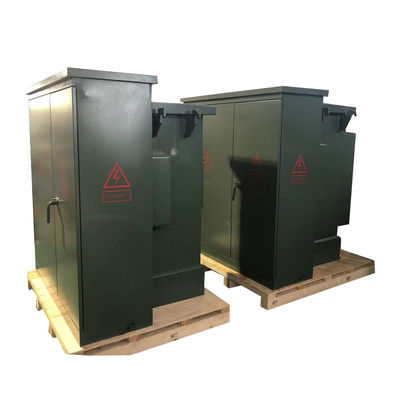

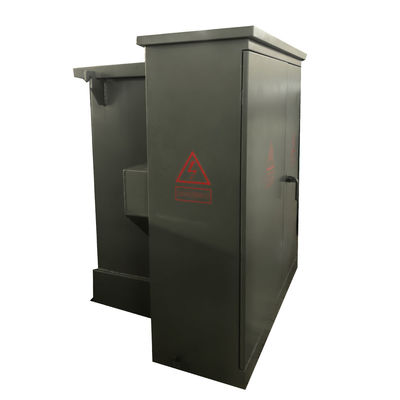

300Kva Three phase pad mounted Transformer Loop Feed 12470GrdY/7200 to 480Y/277
summary
The three phase pad mounted transformer immerses the load switch and fuse on the high voltage side of the transformer with the core and windings of the transformer in the same oil tank, has the advantages of advanced structure, reliable performance, energy saving and consumption reduction, flexible use, strong adaptability, and economical advantages.
product structure
Description
1)The structure is compact and reasonable, and the volume is small, which is only about one-third of the European-style box change of the same capacity;
2)Fully sealed, fully insulated structure, no need to set up safety barriers, and reliable guarantee for personal safety;
3)There are a variety of power supply schemes for users to choose from, which can adopt terminal power supply and realize ring network or dual power supply;
4)S11 oil-immersed power transformer is adopted, which has low loss, low temperature rise and strong overload capacity;
5)Double fuses (backup protection fuse + plug-in fuse) are used for protection, and the plug-in fuse fuse has the current and temperature dual sensitivity characteristics to ensure the safe and reliable operation of the product;
6)The 200A cable connector can be plugged and unplugged under load, and can be operated as a load switch in an emergency. It also has the characteristics of an isolating switch.
7)The winding adopts Dyn11 connection and the iron core adopts a three-phase four-column structure, so that the product can run under any asymmetric load, and the neutral point does not drift, the voltage is stable, the power supply quality is high, the cabinet heats up, the noise is low, and the lightning protection performance is good ；
8)The cabinet adopts anti-corrosion design and special spray paint treatment, beautiful and novel, suitable for various environments, and achieve the effect of beautifying the city.
Main data
| Transformer Configuration | Liquid Filled Pad Mounted |
| Transformer Feed Type | Loop Feed |
| Operation | Step-Down Operation (Not Approved for Step-Up) |
| Phase | Three Phase |
| Capacity | 300 KVA |
| Vector Group | YnYn0 |
| Primary Voltage | 12470GrdY/7200 |
| Primary Voltage Class | 15 kV Class |
| Primary Phasor | Grounded Wye |
| Primary BIL | 95 KV |
| Secondary Voltage | 480Y/277 |
| Secondary Voltage Class | 1.2 kV Class |
| Secondary Phasor | Wye-N |
| Secondary BIL | 30 KV |
| Frequency | 60 Hz |
| Temperature Rise | 65°C |
| Insulation Rating | Class E Insulation - 120°C, 248°F |
| Cooling Class | KNAN; Self-Cooled |
Technical drawings
Specification
| Three Phase Pad Mounted Transformer | ||||
| Rated Power (KVA) | High Voltage (KV) | Low Voltage (V) | Loss (W) | |
| No-load Loss (W) | On-load Loss (W) | |||
| 75KVA | 24.94/14.4kV 12.47/7.2kV 34.5KV/ 19.92KV/ 13.8KV/ 13.2KV/ or others |
120/240V 480Y/ 277V 600Y/ 347V |
180 | 1250 |
| 112.5KVA | 200 | 1500 | ||
| 150KVA | 280 | 2200 | ||
| 225KVA | 400 | 3050 | ||
| 300KVA | 480 | 3650 | ||
| 500KVA | 680 | 5100 | ||
| 750KVA | 980 | 7500 | ||
| 1000KVA | 1150 | 10300 | ||
| 1500KVA | 1640 | 14500 | ||
| 2000KVA | 2160 | 20645 | ||
| 2500KVA | 2680 | 23786 | ||
| 3000KVA | 3300 | 25300 | ||
| 3750KVA | 4125 | 27875 | ||
| 5000KVA | 5200 | 30000 | ||
