Three Phase Dry Type Transformer
>
111KVA Three phase Dry type transformer Step up 472VAC To 6530VAC

111KVA Three phase Dry type transformer Step up 472VAC To 6530VAC

Brand Name: WINLEY
Model Number: SG-111/6.5
MOQ: 1unit
Price: $1000-$10000
Packaging Details: Plywood case
Payment Terms: T/T
Detail Information
Place of Origin:
CHINA
Certification:
CE,ISO
Model:
SG-111KVA
Input Voltage:
472VAC
Output Voltage:
6530VAC
Phase:
3
Frequency:
60Hz
Temperature Rise:
125℃
Insulation Class:
H
Impedance:
10%
Supply Ability:
500set/month
Highlight:

Step up Dry type transformer

,

472VAC Dry type transformer

,

6530VAC Dry type transformer

Product Description

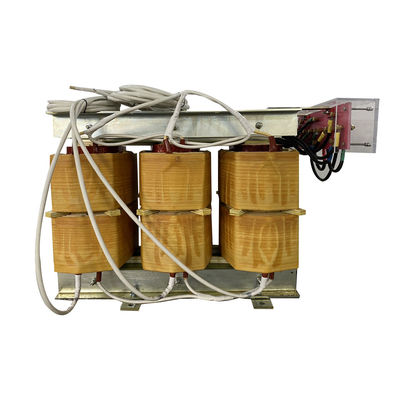

111KVA Three phase Dry type transformer Step up 472VAC To 6530VAC





Summarization



Dry type transformers SG is the use of insulation paper-based insulation system, core and winding transformer. products are composed of the entire life of maintaining excellent electrical performance and mechanical properties, with low loss, low noise, energy saving and environmental protection, high capacity, high reliability, wide range of applications and other advantages. Widely used in local lighting, high-rise buildings, airports, docks, CNC machinery and equipment, mechanical and electronic equipment, medical equipment, rectification devices and other places.



111KVA Three phase Dry type transformer Step up 472VAC To 6530VAC 0



Main data



Phase Three
Model SG-111KVA
Name Three-phase Dry type transformer
Rated power 111KVA
Input voltage 470VAC
Output voltage 6500VAC
Frequency 60Hz
Insulation class H
Impedance: 10%
Induced withstand voltage 125Hz/Double voltage/min
Grounding resistance 25A<100mΩ
Cooling method Air cooling
Temperature rise <150
Weight 1100Lbs



Production process

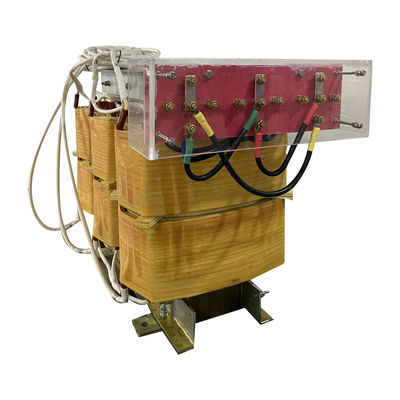

111KVA Three phase Dry type transformer Step up 472VAC To 6530VAC 1

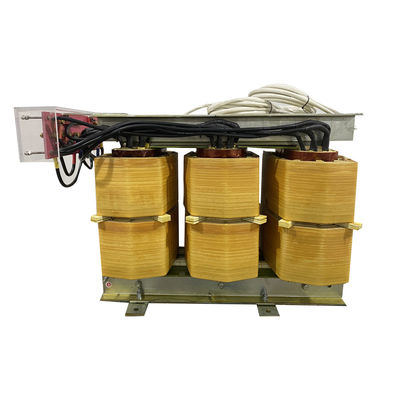

111KVA Three phase Dry type transformer Step up 472VAC To 6530VAC 2111KVA Three phase Dry type transformer Step up 472VAC To 6530VAC 3





FAQ



1. Q: Can I have a sample order?

A: Yes, we welcome sample order to test and check quality.

2. Q: What is the lead time?

A: Sample time 3-7 days, we usually ship by DHL, UPS, FedEx,etc. Mass production time 7-25 days.

3. Q: How long is the warranty?

A: 24 monthes from B/L. If there are any accessory problems,just provide the photos of damaged accessory,then we will provide free service. According to the number of products,we will provide easily damaged accessories for free. we also can provide technical support if you need.

4. Q: Is OEM/ODM available?

A: Yes,it is! We are manufacturer with our own R&D team, we can customize products according to customer's drawing or requirements.

Customized services:

a. Customized color and special function.

b. Customized box.

c. Print customer's logo(MOQ:≥10pcs).

d. Your other ideas about product, we can help you design and put them into production. The above customized services must be confirmed before production.

5. Q: How to control the products quality?

A: Our company owns the core technology ,all kinds of products hold CE certificate. We have professional engineers. Workers are strictly required to make products according to the drawings. Each process has technical instructors.The QC supervisors will regularly inspect the production. We will do products performance tests during production, and comprehensive quality tests when the products is completed.
