2500Kva Liquid-Filled Loop Feed 3 Phase Pad Mounted Transformer 27.6Kv To 600V

Basic Information
Place of Origin: CHINA
Brand Name: WINLEY
Certification: CE,ISO
Model Number: S-2500/35
Minimum Order Quantity: 1unit
Price: $5000-$150000
Packaging Details: Plywood case
Delivery Time: 30days
Payment Terms: T/T
Supply Ability: 1000set/month
Detail Information
Phase: Three Phase Capacity: 2500KVA
Primary Voltage: 27600V Or Customized Secondary Voltage: 600Y/347 Or Customized
Vector Group: DYN1 Temperature Rise: 65°C
Impedance (Typical): 5.75% Winding Material: Copper

Product Description

IEEE ANSI Certificate 3 Phase Pad Mounted Transformer 12.47KV 13.8KV 35.4KV 440V 480V 400V 1200kva 1500kva Power





WINLEY presents a comprehensive range of liquid-filled Three-Phase Pad-Mounted distribution transformers that adhere to relevant ANSI®/IEEE® standards. Capable of handling high voltages reaching up to 34.5 kV and ratings up to 5,000 kVA, these transformers are ideal for applications demanding high voltage and substantial capacity, including power substations and industrial power consumption.



STRUCTURE

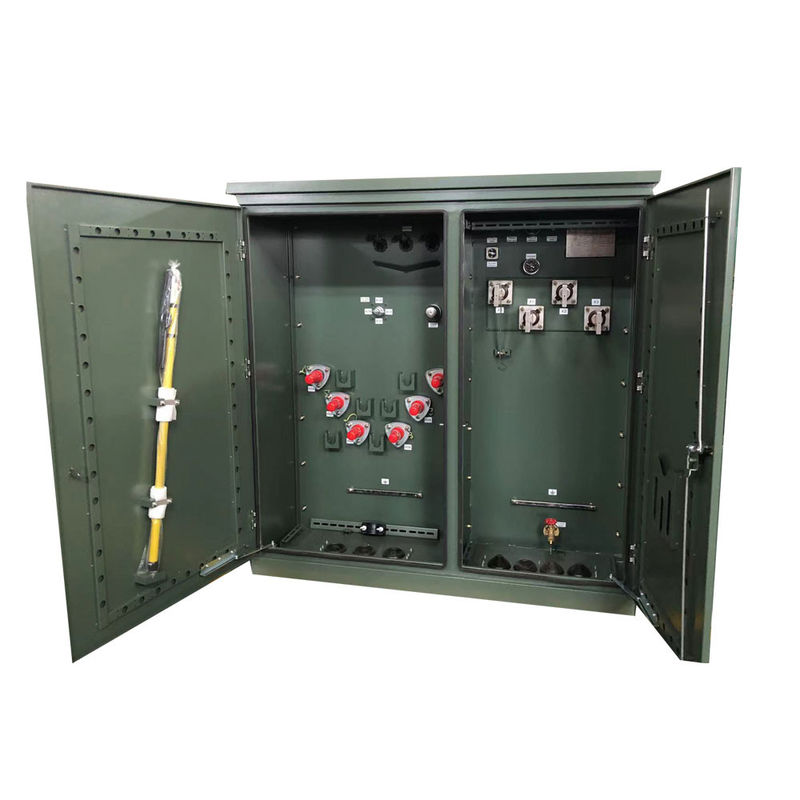

2500Kva Liquid-Filled Loop Feed 3 Phase Pad Mounted Transformer 27.6Kv To 600V 0



Main data

Transformer Type Pad Mounted, Compartmental-Type
Transformer Feed Type Loop Feed
Phase Three Phase
Capacity 2.5 MVA (2500 KVA)
Vector Group DYN1
Primary Voltage 27600V
Primary Phasor Delta
Secondary Voltage 600Y/347
Frequency 60 Hz
Temperature Rise 65°C
Insulation Rating Class E Insulation - 120°C, 248°F
Cooling Class ONAN; Self-Cooled
Impedance Target 5.75%
Efficiency Standard(s) Meets DOE 2016 Standards, Meets CSA Standards Meets ANSI/IEEE Standards
Winding Material Copper
Ambient Temperature Rating 40°C
Ambient Operating Temperature Range -40°C to +40°C (-50°F to +104°F)
Sound Level 62 dBA
Dimensions* 75''-W x 75''-D x 73''-H
Ratings Meets/Exceeds DOE 2016 Efficiency Ratings
Efficiency % 99.40%
Total Load Loss (in watts) at 50%

+/- 6,408W



Specification



Three Phase Pad Mounted Transformer
Rated Power (KVA) High Voltage (KV) Low Voltage (V) Loss (W)
No-load Loss (W) On-load Loss (W)
75KVA 24.94/14.4kV
12.47/7.2kV
34.5KV/
19.92KV/
13.8KV/
13.2KV/
or others
120/240V
480Y/
277V
600Y/
347V
180 1250
112.5KVA 200 1500
150KVA 280 2200
225KVA 400 3050
300KVA 480 3650
500KVA 680 5100
750KVA 980 7500
1000KVA 1150 10300
1500KVA 1640 14500
2000KVA 2160 20645
2500KVA 2680 23786
3000KVA 3300 25300
3750KVA 4125 27875
5000KVA 5200 30000



Technical drawings

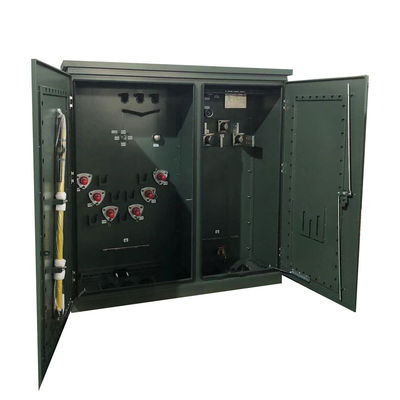

2500Kva Liquid-Filled Loop Feed 3 Phase Pad Mounted Transformer 27.6Kv To 600V 1



Optional accessories

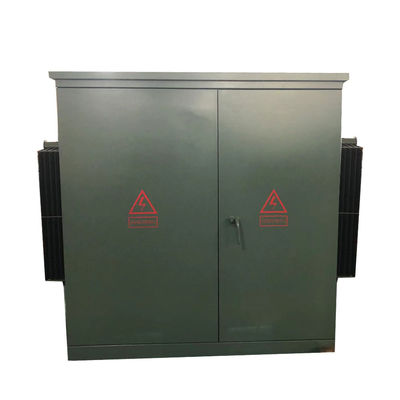

2500Kva Liquid-Filled Loop Feed 3 Phase Pad Mounted Transformer 27.6Kv To 600V 2



Production process



150KVA Three Phase Pad Mount electrical  Transformer Oil Immersed 13.8KV 4

150KVA Three Phase Pad Mount electrical  Transformer Oil Immersed 13.8KV 5

150KVA Three Phase Pad Mount electrical  Transformer Oil Immersed 13.8KV 6



FAQ



1. Q: Can I have a sample order?

A: Yes, we welcome sample order to test and check quality.

2. Q: What is the lead time?

A: Mass production time 15-25 days.

3. Q: How long is the warranty?

A: 24 monthes from B/L. If there are any accessory problems,just provide the photos of damaged accessory,then we will provide free service. According to the number of products,we will provide easily damaged accessories for free. we also can provide technical support if you need.

4. Q: Is OEM/ODM available?

A: Yes,it is! We are manufacturer with our own R&D team, we can customize products according to customer's drawing or requirements.

Customized services:

a. Customized color and special function.

b. Customized box.

c. Print customer's logo.

d. Your other ideas about product, we can help you design and put them into production. The above customized services must be confirmed before production.

5. Q: How to control the products quality?

A: Our company owns the core technology ,all kinds of products hold CE certificate. We have professional engineers. Workers are strictly required to make products according to the drawings. Each process has technical instructors.The QC supervisors will regularly inspect the production. We will do products performance tests during production, and comprehensive quality tests when the products is completed.
