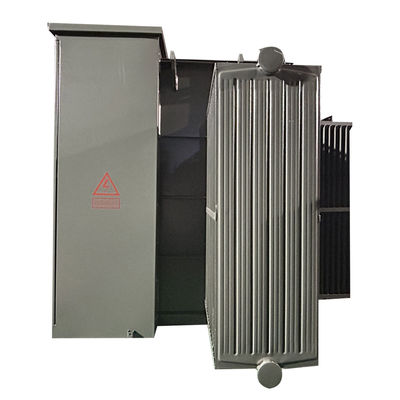

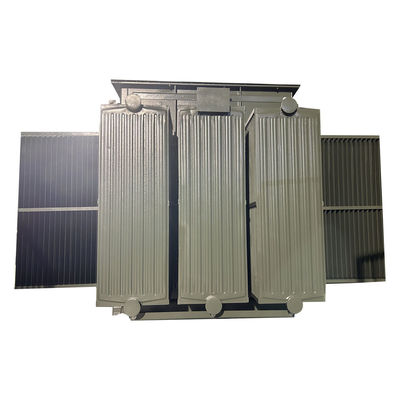

13.8kv Three 3 Phase Pad Mounted Electric Oil Type Transformer 5000kva

Basic Information
Place of Origin: CHINA
Brand Name: WINLEY
Certification: CE,ISO
Model Number: S-5000/15
Minimum Order Quantity: 1unit
Price: $5000-$150000
Packaging Details: Plywood case
Delivery Time: 30days
Payment Terms: T/T
Supply Ability: 1000set/month
Detail Information
Phase: Three Phase Capacity: 5000KVA
Primary Voltage: 13800V Secondary Voltage: 480Y/277
Vector Group: DYN1 Temperature Rise: 65°C
Impedance (Typical): 5.75% Winding Material: Aluminum
High Light:

Oil Type Transformer 5000kva


13.8kv Electric Oil Type Transformer


5000KVA Pad Mounted Transformer

Product Description

13.8kv Three 3 phase pad mounted electric oil type transformer 5000kva





1) The structure is compact and reasonable, and the volume is small, which is only about one-third of the European-style box change of the same capacity;
2) Fully sealed, fully insulated structure, no need to set up safety barriers, and reliable guarantee for personal safety;
3) There are a variety of power supply schemes for users to choose from, which can adopt terminal power supply and realize ring network or dual power supply;
4) S11 oil-immersed power transformer is adopted, which has low loss, low temperature rise and strong overload capacity;
5) Double fuses (backup protection fuse + plug-in fuse) are used for protection, and the plug-in fuse fuse has the current and temperature dual sensitivity characteristics to ensure the safe and reliable operation of the product;
6) The 200A cable connector can be plugged and unplugged under load, and can be operated as a load switch in an emergency. It also has the characteristics of an isolating switch.
7) The winding adopts Dyn11 connection and the iron core adopts a three-phase four-column structure, so that the product can run under any asymmetric load, and the neutral point does not drift, the voltage is stable, the power supply quality is high, the cabinet heats up, the noise is low, and the lightning protection performance is good ;
8) The cabinet adopts anti-corrosion design and special spray paint treatment, beautiful and novel, suitable for various environments, and achieve the effect of beautifying the city.


Product detail


13.8kv Three 3 Phase Pad Mounted Electric Oil Type Transformer 5000kva 0


Main data


specification data
No. Particulars Unit Specification
1 Type ~ pad mounted, loop feed
2 Rated capacity kVA 5000
3 No. of Phase ~ 3
4 Primary voltage V 13800, Delta
5 Primary bushing ~ 600A bushing
6 Secondary voltage V 480Y/277
10 Cooling method ~ ONAN
11 Rated frequency Hz 60
12 Vector group ~ Dyn1
13 Insulation class ~ A
14 Temperature rise K 65
15 Off-load loss W 4310
16 On-load loss (75) W 31000
17 Impedance % 7.5
18 Winding material ~ copper or aluminum
19 Core material ~ silicon steel
20 Cooling material   mineral oil
21 Housing material ~ 304 stainless steel
22 Housing color ~ munsell green
23 Service condition ~ indoor or outdoor
24 Sea level M ≤1000
25 Standard ~ ASNI


Product structure

1)The transformer part and the control cabinet part of the United States variation, of which the transformer part is a fully sealed structure, and the insulating oil can be two types of high ignition point oil or ordinary oil.

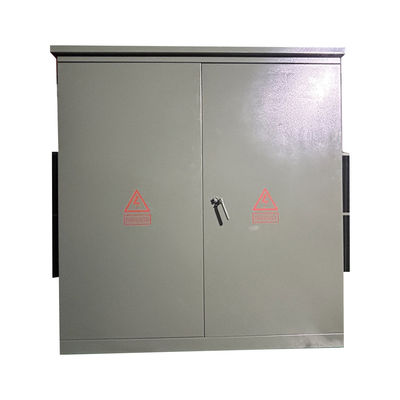

2)The control cabinet is divided into a high-voltage room and a low-voltage room.

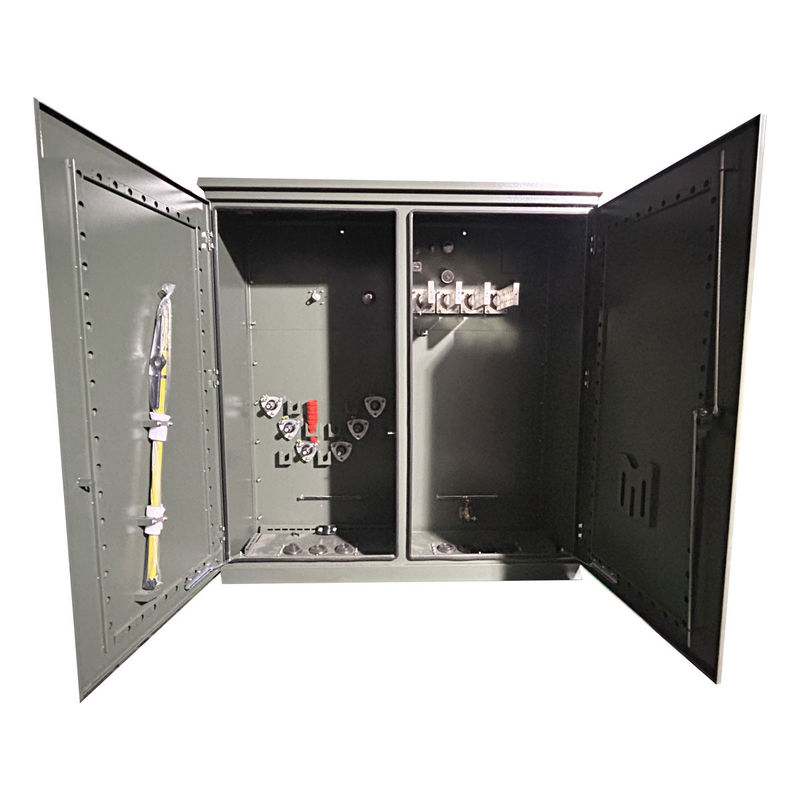

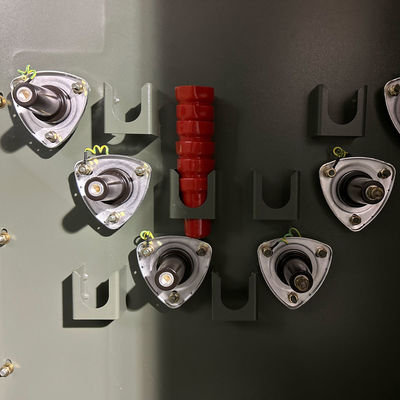

3)The high-voltage room is equipped with: high-voltage cable plug, lightning arrester, load switch operating handle, non-excitation tap switch handle, plug-in fuse, pressure release valve, thermometer, pressure gauge, oil Position gauges, oil filling plugs, oil drain valves, etc., load switches, off-excitation tap changers, plug-in fuses, etc. are all immersed in transformer oil together with the transformer core. The high-voltage cable and the transformer are connected by elbow cable connectors.
4)The low-voltage side can be installed with air circuit breakers, current transformers, as well as electric energy meters, ammeters and voltmeters, and output circuits and capacitance compensation devices can be configured according to user needs.




Three Phase Pad Mounted Transformer
Rated Power (KVA) High Voltage (KV) Low Voltage (V) Loss (W)
No-load Loss (W) On-load Loss (W)
75KVA 24.94/14.4kV
or others
180 1250
112.5KVA 200 1500
150KVA 280 2200
225KVA 400 3050
300KVA 480 3650
500KVA 680 5100
750KVA 980 7500
1000KVA 1150 10300
1500KVA 1640 14500
2000KVA 2160 20645
2500KVA 2680 23786
3000KVA 3300 25300
3750KVA 4125 27875
5000KVA 5200 30000


Technical drawings

150KVA Three Phase Pad Mount electrical  Transformer Oil Immersed 13.8KV 3

Production process


150KVA Three Phase Pad Mount electrical  Transformer Oil Immersed 13.8KV 4

150KVA Three Phase Pad Mount electrical  Transformer Oil Immersed 13.8KV 5

150KVA Three Phase Pad Mount electrical  Transformer Oil Immersed 13.8KV 6




1. Q: Can I have a sample order?

A: Yes, we welcome sample order to test and check quality.

2. Q: What is the lead time?

A: Mass production time 15-25 days.

3. Q: How long is the warranty?

A: 24 monthes from B/L. If there are any accessory problems,just provide the photos of damaged accessory,then we will provide free service. According to the number of products,we will provide easily damaged accessories for free. we also can provide technical support if you need.

4. Q: Is OEM/ODM available?

A: Yes,it is! We are manufacturer with our own R&D team, we can customize products according to customer's drawing or requirements.

Customized services:

a. Customized color and special function.

b. Customized box.

c. Print customer's logo.

d. Your other ideas about product, we can help you design and put them into production. The above customized services must be confirmed before production.

5. Q: How to control the products quality?

A: Our company owns the core technology ,all kinds of products hold CE certificate. We have professional engineers. Workers are strictly required to make products according to the drawings. Each process has technical instructors.The QC supervisors will regularly inspect the production. We will do products performance tests during production, and comprehensive quality tests when the products is completed.
