| Place of Origin: | CHINA |
|---|---|
| Brand Name: | WINLEY |
| Certification: | UL,CE,ISO |
| Model Number: | S-225/12.47 |
| Minimum Order Quantity: | 1unit |
| Price: | $5000-$150000 |
| Packaging Details: | Plywood case |
| Delivery Time: | 30days |
| Payment Terms: | T/T |
| Supply Ability: | 1000set/month |
| Phase: | Three Phase | Capacity: | 225 KVA |
|---|---|---|---|
| Primary Voltage: | 12470GrdY/7200 | Secondary Voltage: | 480Y/277 |
| Cooling Class: | KNAN; Self-Cooled | Winding Material: | Copper |
| Impedance (Typical): | 5.75% | Efficienc: | 99.00% |
| High Light: | 3Phase Oil Immersed Electrical Transformer,225Kva Oil Immersed Electrical Transformer,Step Down Electrical Transformer 480V |
||

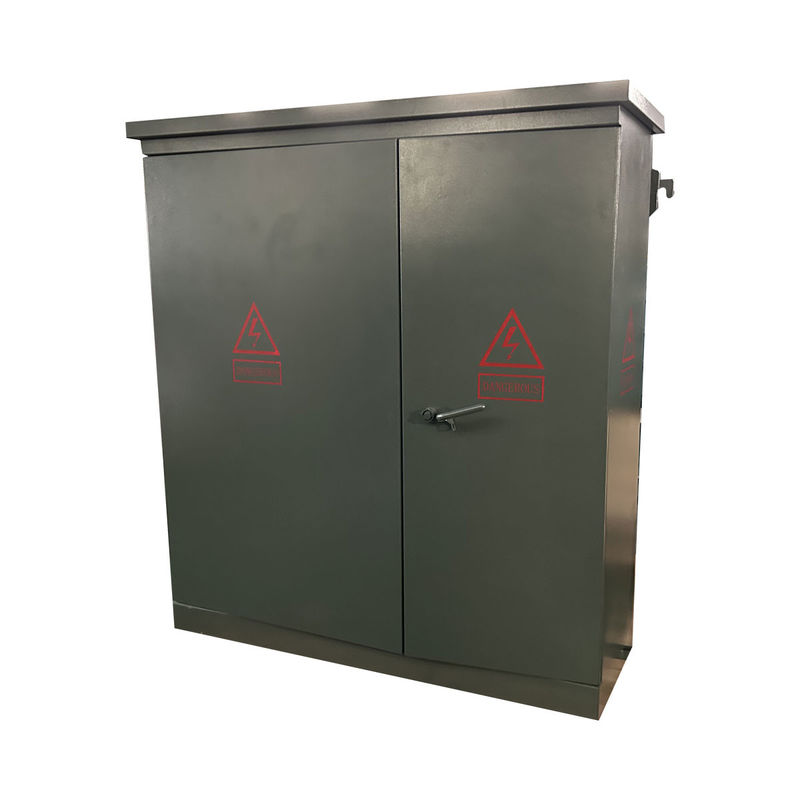

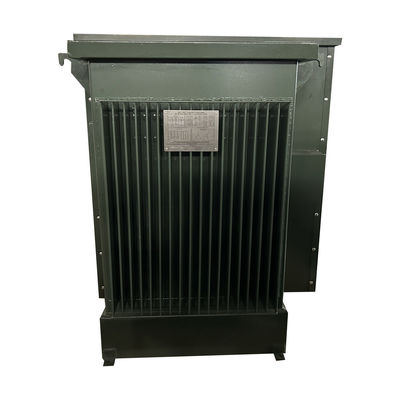

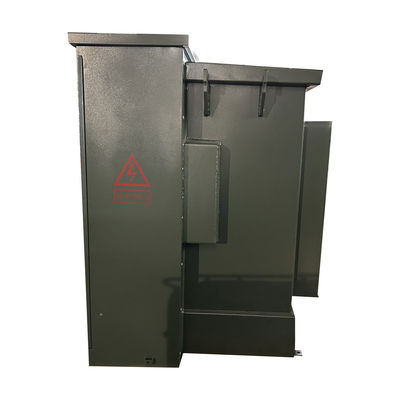

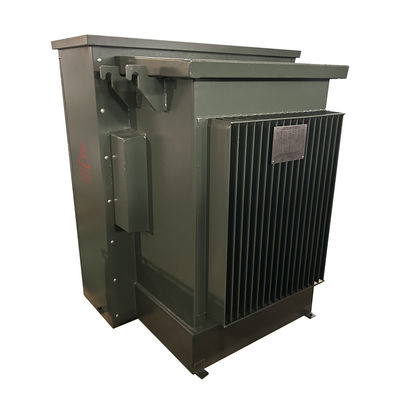

225 Kva Three Phase Pad Mounted oil immersed electrical Transformer Step Down 12.47 KV to 480V
Description
We can make this substion as user and customers requirement under their drawing/single line diagram (SLD) and need .We design & produce this substation under the international standard of IEC1330 ,H.V.standard IEC62271-200.
HV & LV compartment is with completed function.
1.) H.V.compartment has various of power supply methods when testing power supply in 1 time, it also can be installed with H.V.testing appliances to reach the demand of H.V.testing.
2.) The transformer compartment can be choosed S11,S13 or other low consumption oil immersed transformer and dry type transformer. The transformer compartment has automatic start wind cooling systems and lighting systems.
3.) Low voltage compartment can be made according to users' need , it adopts fixed or assembled structure to be electrical power supply system,it has many function like light distribution ,power distribution, reactive power ,electrical power testing..etc to improve the power distribution quality and satisfy the user.
This substation body mainly has metal material, stainless steel material , non -metal material ...which can be choosed by user and customers
This substation is a very important power distribution and supply unit in the electrical cable power net.it is a kind of completed set of power supply with H.V.controlling,protection and converting ,distribution.. it used in 3 phase AC 50Hz and rated current max 1600KVA transformer.It is widely used in industrial and mining enterprises, residential quarters, hospital, mall, high-rise buildings and other distribution systems.
Main data
| Transformer Type | Pad Mounted, Compartmental-Type |
| Transformer Configuration | Liquid Filled Pad Mounted |
| Transformer Feed Type | Loop Feed |
| Operation | Step-Down Operation |
| Phase | Three Phase |
| Capacity | 225 KVA |
| Vector Group | YnYn0 |
| Primary Voltage | 12470GrdY/7200 |
| Primary Voltage Class | 15 kV Class |
| Primary Phasor | Grounded Wye |
| Primary BIL | 95 KV |
| Secondary Voltage | 480Y/277 |
| Secondary Voltage Class | 1.2 kV Class |
| Secondary Phasor | Wye-N |
| Secondary BIL | 30 KV |
| Frequency | 60 Hz |
| Temperature Rise | 65°C |
| Insulation Rating | Class E Insulation - 120°C, 248°F |
| Cooling Class | KNAN; Self-Cooled |
| Fluid (Oil) Capacity* | 126 Gallons |
| Fluid (Oil) Weight* | 970 lb |
| Winding Material | copper |
| Ambient Temperature Rating | 40°C |
| Sound Level | 55 dBA |
| Elevation (Altitude) | 3300ft Above Sea Level |
| Core Material | Grain Oriented Steel |
| Tank Material | Coated Steel |
| Cabinet Material | Coated Steel |
| Base Platform Material | Coated Steel |
| Dimensions* | 61''-W x 49''-D x 69''-H |
| Dry Weight (w/o Oil)* | 1,463 lb |
| Total Weight (Liquid Filled)* | 3,420 lb |
| Ratings | Meets/Exceeds DOE 2016 Efficiency Ratings |
| Efficiency % | 99.00% |
| No Load Loss (in watts) | +/- 400W |
| Full Load Loss (in watts) at 100% | +/- 2,300W |
| Total Load Loss (in watts) at 100% | +/- 2,700W |
Feature
• 60 Hz operation.
• 65°C average winding rise.
• Radial & loop feed arrangements.
• Dead and live front type of HV terminals.
• HV BIL 45 – 150 kV (Dead Front) 200 kV (Live Front).
• LV BIL 30 – 60 kV.
• Three-point latching of low-voltage door.
• High-voltage door, which can be opened only after
the low-voltage door is opened.
• Rigid steel partition.
• Transformer tank welded from cover to base.
• Permanent nameplate.
• One-inch NPT pipe cap filling provision.
• ANSI tank ground pads.
• One-inch drain valve and sampler.
• Automatic pressure-relief valve (35 SCFM).
• Tap changer with (2) 2.5% full capacity taps above
and below nominal.
• One 10”x18” (or 14”x25”) hand hole in transformer
tank cover.
• Painted olive-green color (Munsell 7GY 3.29/1.5).
• Designed, manufactured and tested in accordance
with the latest ANSI standards
Specification
| Three Phase Pad Mounted Transformer | ||||
| Rated Power (KVA) | High Voltage (KV) | Low Voltage (V) | Loss (W) | |
| No-load Loss (W) | On-load Loss (W) | |||
| 75KVA | 24.94/14.4kV 12.47/7.2kV 34.5KV/ 19.92KV/ 13.8KV/ 13.2KV/ or others |
120/240V 480Y/ 277V 600Y/ 347V |
180 | 1250 |
| 112.5KVA | 200 | 1500 | ||
| 150KVA | 280 | 2200 | ||
| 225KVA | 400 | 3050 | ||
| 300KVA | 480 | 3650 | ||
| 500KVA | 680 | 5100 | ||
| 750KVA | 980 | 7500 | ||
| 1000KVA | 1150 | 10300 | ||
| 1500KVA | 1640 | 14500 | ||
| 2000KVA | 2160 | 20645 | ||
| 2500KVA | 2680 | 23786 | ||
| 3000KVA | 3300 | 25300 | ||
| 3750KVA | 4125 | 27875 | ||
| 5000KVA | 5200 | 30000 | ||
Technical drawings
Production process
FAQ
1. Q: Can I have a sample order?
A: Yes, we welcome sample order to test and check quality.
2. Q: What is the lead time?
A: Mass production time 15-25 days.
3. Q: How long is the warranty?
A: 24 monthes from B/L. If there are any accessory problems,just provide the photos of damaged accessory,then we will provide free service. According to the number of products,we will provide easily damaged accessories for free. we also can provide technical support if you need.
4. Q: Is OEM/ODM available?
A: Yes,it is! We are manufacturer with our own R&D team, we can customize products according to customer's drawing or requirements.
Customized services:
a. Customized color and special function.
b. Customized box.
c. Print customer's logo.
d. Your other ideas about product, we can help you design and put them into production. The above customized services must be confirmed before production.
5. Q: How to control the products quality?
A: Our company owns the core technology ,all kinds of products hold CE certificate. We have professional engineers. Workers are strictly required to make products according to the drawings. Each process has technical instructors.The QC supervisors will regularly inspect the production. We will do products performance tests during production, and comprehensive quality tests when the products is completed.
