Brand Name: | WINLEY |
Model Number: | S-3500/15 |
MOQ: | 1unit |
Price: | $5000-$150000 |
Packaging Details: | Plywood case |
Payment Terms: | T/T |

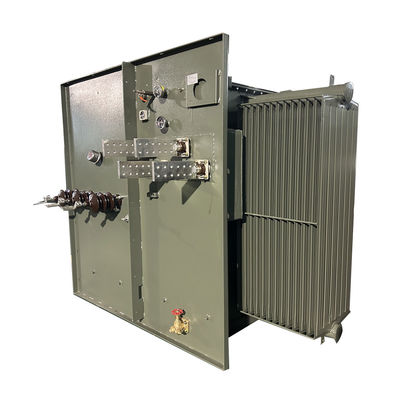

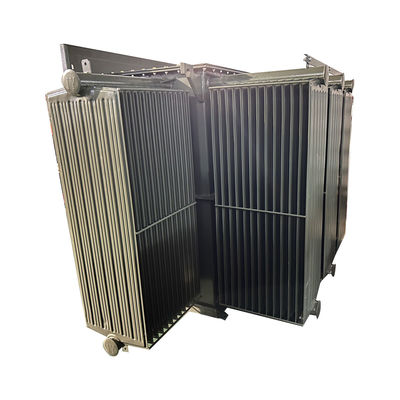

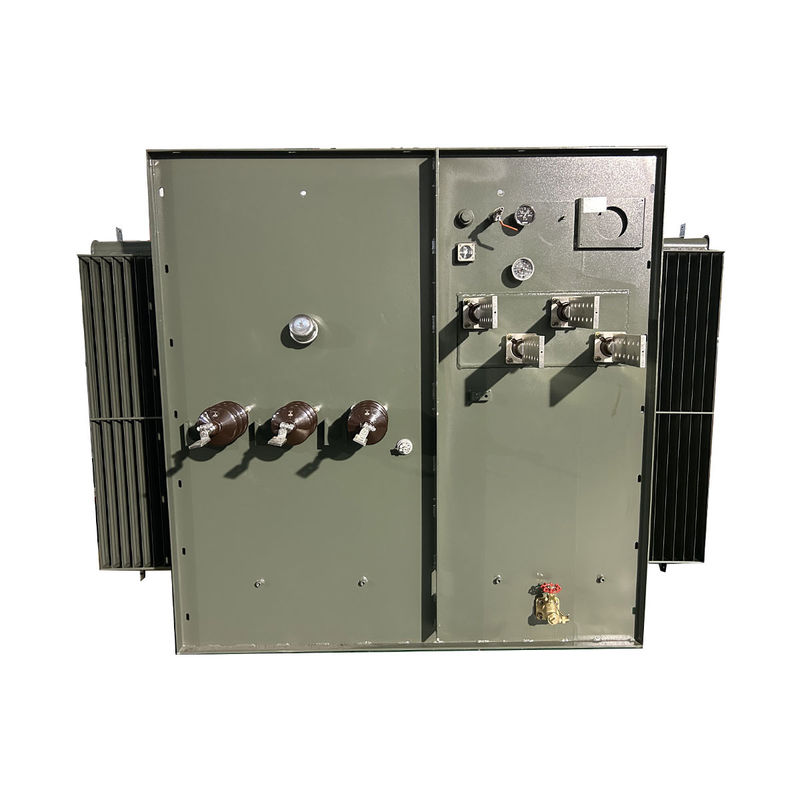

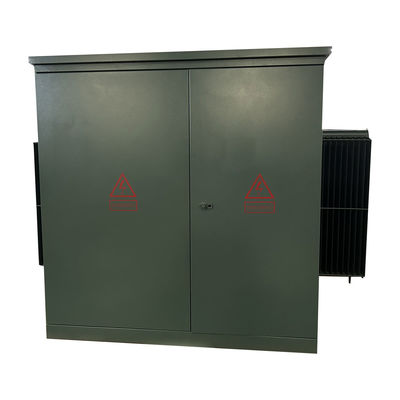

2500Kva 3750 Kva Three Phase Pad Mounted Transformer Step Down 13.8KV to 480V
A padmount or pad-mounted transformer is a ground mounted electric power distribution transformer in a locked steel cabinet mounted on a concrete pad. Since all energized connection points are securely enclosed in a grounded metal housing, a padmount transformer can be installed in places that do not have room for a fenced enclosure.
Main data
specification data | |||
No. | Particulars | Unit | Specification |
1 | Type | ~ | pad mounted, loop feed |
2 | Rated capacity | kVA | 3750 |
3 | No. of Phase | ~ | 3 |
4 | Primary voltage | V | 13800, Delta |
5 | Primary bushing | ~ | 600A bushing |
6 | Secondary voltage | V | 480Y/277 |
10 | Cooling method | ~ | ONAN |
11 | Rated frequency | Hz | 60 |
12 | Vector group | ~ | Dyn1 |
13 | Insulation class | ~ | A |
14 | Temperature rise | K | 65 |
15 | Off-load loss | W | 3610 |
16 | On-load loss (75℃) | W | 27300 |
17 | Impedance | % | 7.5 |
18 | Winding material | ~ | copper or aluminum |
19 | Core material | ~ | silicon steel |
20 | Cooling material | mineral oil | |
21 | Housing material | ~ | 304 stainless steel |
22 | Housing color | ~ | munsell green |
23 | Service condition | ~ | indoor or outdoor |
24 | Sea level | M | ≤1000 |
25 | Standard | ~ | ASNI |
Feature
• 60 Hz operation.
• 65°C average winding rise.
• Radial & loop feed arrangements.

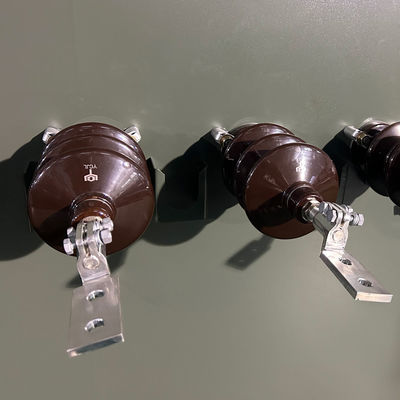

• Dead and live front type of HV terminals.
• HV BIL 45 – 150 kV (Dead Front) 200 kV (Live Front).
• LV BIL 30 – 60 kV.
• Three-point latching of low-voltage door.
• High-voltage door, which can be opened only after
the low-voltage door is opened.
• Rigid steel partition.
• Transformer tank welded from cover to base.
• Permanent nameplate.
• One-inch NPT pipe cap filling provision.
• ANSI tank ground pads.
• One-inch drain valve and sampler.
• Automatic pressure-relief valve (35 SCFM).
• Tap changer with (2) 2.5% full capacity taps above
and below nominal.
• One 10”x18” (or 14”x25”) hand hole in transformer
tank cover.
• Painted olive-green color (Munsell 7GY 3.29/1.5).
• Designed, manufactured and tested in accordance
with the latest ANSI standards
Specification
Rated Power (KVA) | High Voltage (KV) | Low Voltage (V) | Loss (W) | |
No-load Loss (W) | On-load Loss (W) | |||
75KVA | 24.94/14.4kV 12.47/7.2kV 34.5KV/ 19.92KV/ 13.8KV/ 13.2KV/ or others |
120/240V 480Y/ 277V 600Y/ 347V |
180 | 1250 |
112.5KVA | 200 | 1500 | ||
150KVA | 280 | 2200 | ||
225KVA | 400 | 3050 | ||
300KVA | 480 | 3650 | ||
500KVA | 680 | 5100 | ||
750KVA | 980 | 7500 | ||
1000KVA | 1150 | 10300 | ||
1500KVA | 1640 | 14500 | ||
2000KVA | 2160 | 20645 | ||
2500KVA | 2680 | 23786 | ||
3000KVA | 3300 | 25300 | ||
3750KVA | 4125 | 27875 | ||
5000KVA | 5200 | 30000 |
Technical drawings
Production process
FAQ
1. Q: Can I have a sample order?
A: Yes, we welcome sample order to test and check quality.
2. Q: What is the lead time?
A: Mass production time 15-25 days.
3. Q: How long is the warranty?
A: 24 monthes from B/L. If there are any accessory problems,just provide the photos of damaged accessory,then we will provide free service. According to the number of products,we will provide easily damaged accessories for free. we also can provide technical support if you need.
4. Q: Is OEM/ODM available?
A: Yes,it is! We are manufacturer with our own R&D team, we can customize products according to customer's drawing or requirements.
Customized services:
a. Customized color and special function.
b. Customized box.
c. Print customer's logo.
d. Your other ideas about product, we can help you design and put them into production. The above customized services must be confirmed before production.
5. Q: How to control the products quality?
A: Our company owns the core technology ,all kinds of products hold CE certificate. We have professional engineers. Workers are strictly required to make products according to the drawings. Each process has technical instructors.The QC supervisors will regularly inspect the production. We will do products performance tests during production, and comprehensive quality tests when the products is completed.
![]() |
